SSM1A Series

Catalog

SOLID STATE RELAY, SPST-NO, 12 A, 600 VAC, DIN RAIL, SCREW, ZERO CROSSING

Part	Load Current	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Approval Agency	Package / Case	Mounting Type
SCHNEIDER ELECTRIC SSM1A312B7	12 A	AC	36 VAC	18 VAC/DC	600 V	48 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
SCHNEIDER ELECTRIC SSM1A312P7R	12 A	AC	265 VAC	200 VAC	600 V	48 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail

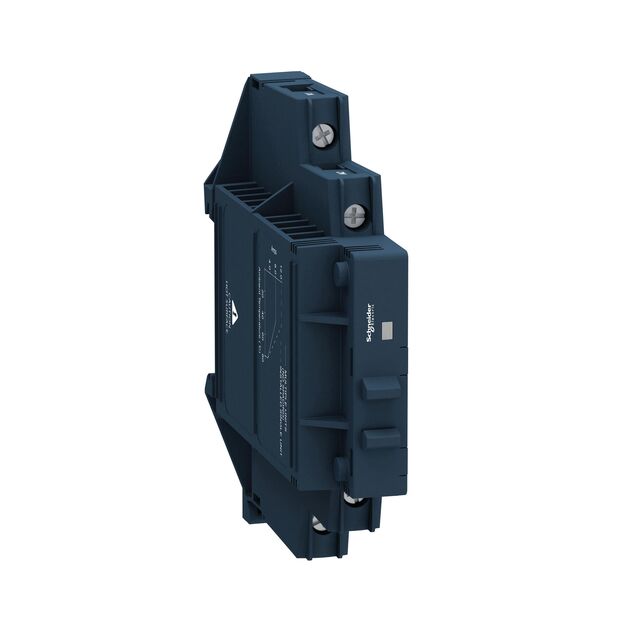

SCHNEIDER ELECTRIC SSM1A112F7R	12 A	AC	140 VAC	90 VAC	280 V	24 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
SCHNEIDER ELECTRIC SSM1A112BD	12 A	AC Zero Cross	32 VDC	4 V	280 V	24 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
SCHNEIDER ELECTRIC SSM1A16B7	6 A	AC Zero Cross	36 VAC	18 VAC/DC	280 V	24 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
SCHNEIDER ELECTRIC SSM1A130BD	30 A	AC Zero Cross	32 VDC	4 V	280 V	24 V	80 °C	-30 ░C	Screw Terminal	CSA UL	SSR with Integrated Heat Sink	DIN Rail
SCHNEIDER ELECTRIC SSM1A455BD	55 A	AC Zero Cross	32 VDC	4 V	600 V	48 V	80 °C	-30 ░C	Screw Terminal	CSA UL	SSR with Integrated Heat Sink	DIN Rail
SCHNEIDER ELECTRIC SSM1A430M7	30 A	AC	280 VAC/DC	90 VAC	600 V	48 V	80 °C	-30 ░C	Screw Terminal	CSA UL	SSR with Integrated Heat Sink	DIN Rail
SCHNEIDER ELECTRIC SSM1A312F7	12 A	AC	140 VAC	90 VAC	600 V	48 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
SCHNEIDER ELECTRIC SSM1A112B7R	12 A	AC	36 VAC	18 VAC/DC	280 V	24 V	80 °C	-30 ░C	Screw Terminal	CSA UL	Module	DIN Rail
