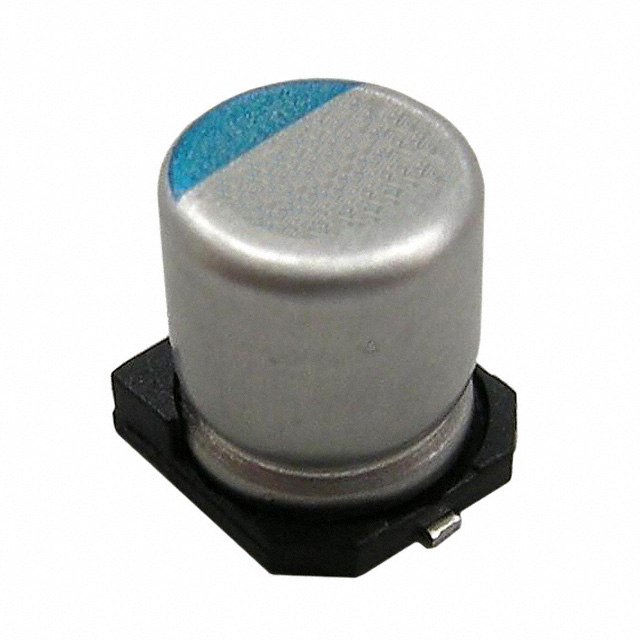

PXK Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 6.3VOLTS 220UF 0.2

Part	Tolerance	Lifetime @ Temp.	Applications	Mounting Type	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Package / Case	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con APXK6R3ARA221MF46G	20 %	1000 Hrs	General Purpose	Surface Mount	Polymer	0.248 "	6.3 mm	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	6.3 VDC	-55 C	105 ░C	3.2 A	4.5 mm	0.177 in	220 µF
Chemi-Con APXK2R5ARA331ME61G	20 %	2000 Hrs	General Purpose	Surface Mount	Polymer	0.197 in	5 mm		0.209 in 5.3 mm	0.209 in 5.3 mm		Radial Can - SMD	2.5 V	-55 C	105 ░C	3.5 A			330 µF	16 mOhm	0.228 "	5.8 mm
Chemi-Con APXK6R3ARA151MF46G	20 %	1000 Hrs	General Purpose	Surface Mount	Polymer	0.248 "	6.3 mm	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	6.3 VDC	-55 C	105 ░C	2.78 A	4.5 mm	0.177 in	150 µF	19 mOhm
