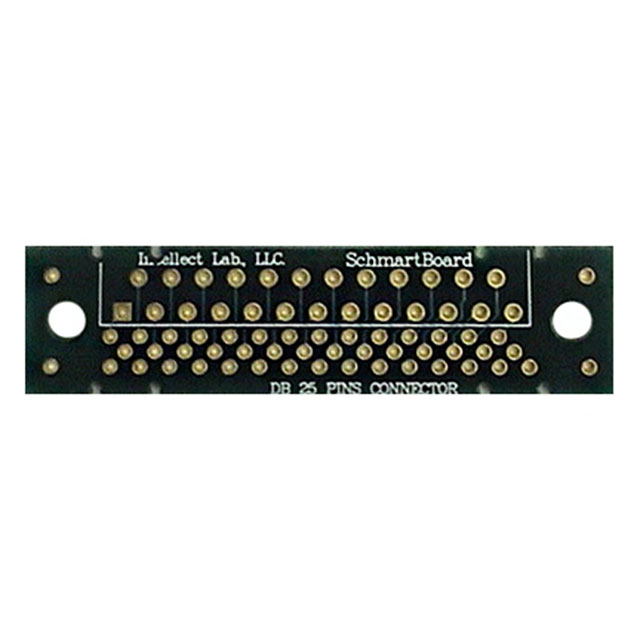

201-0104 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K
BREADBOARD GENERAL PURPOSE NPTH
| Part | Proto Board Type | Hole Diameter [diameter] | Hole Diameter [diameter] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Plating | Circuit Pattern |
|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Breadboard General Purpose | 0.97 mm | 0.038 in | 12.7 mm | 2 in | 50.8 mm | 0.5 " | Non-Plated Through Hole (NPTH) | Pad Per Hole (Round) |
