4600 Series

Catalog

AC FANS AC TUBEAXIAL FAN

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Width [y]	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Approval Agency	RPM	Weight [custom]	Weight [custom]	Size / Dimension [diameter]	Termination	Weight [custom]	Weight [custom]	Width [x]	Ingress Protection
ebm-papst Inc. 4656EA-004
ebm-papst Inc. 4600Z	Metal	Metal	40000 Hrs	2	38 mm	Sintec	106 CFM	2.97 m³/min	115 VAC	Tubeaxial	Square	119 mm	119 mm	18 W	-10 °C	60 °C	45 dB(A)	CE CSA UL VDE	3100 RPM	544.3 g	1.2 lbs

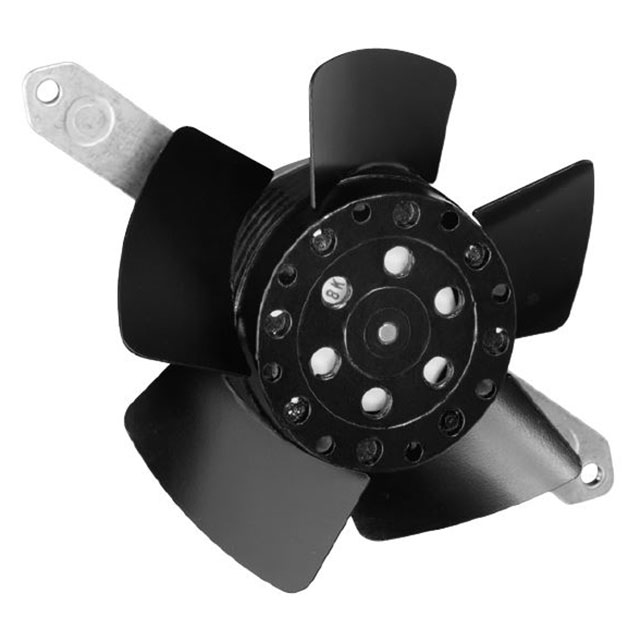

ebm-papst Inc. 4600TA	Metal	Metal	40000 Hrs			Sintec	86.5 CFM	2.42 m³/min	115 VAC	Tubeaxial	Round			18 W	-10 °C	50 °C	43 dB		2900 RPM			113 mm	2 Wire Leads	430.01 g	0.948 lb	37 mm
ebm-papst Inc. 4600N	Metal	Metal	40000 Hrs	2	38 mm	Sintec	106 CFM	2.97 m³/min	115 VAC	Tubeaxial	Square	119 mm	119 mm	18 W	-10 °C	60 °C	50 dB(A)	CE CSA UL VDE	3100 RPM	544.3 g	1.2 lbs						IP20
ebm-papst Inc. 4600ZW	Metal	Metal	40000 Hrs		38 mm	Sintec	105.9 CFM	2.97 m³/min	115 VAC	Tubeaxial	Square	119 mm	119 mm	18 W	-10 °C	60 °C	45 dB(A)	CSA UL VDE	3100 RPM	544.3 g	1.2 lbs		2 Wire Leads

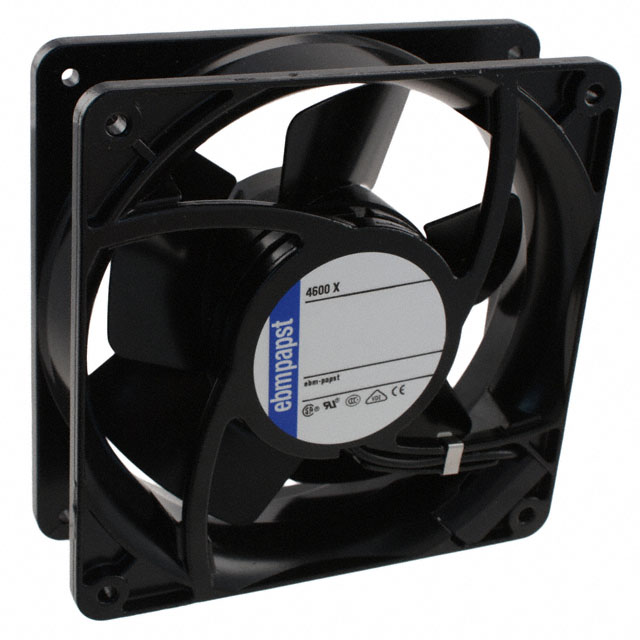

ebm-papst Inc. 4600X	Metal	Metal		2	38 mm	Sintec	106 CFM	2.97 m³/min	115 VAC	Tubeaxial	Square	119 mm	119 mm	18 W			50 dB(A)			544.3 g	1.2 lbs

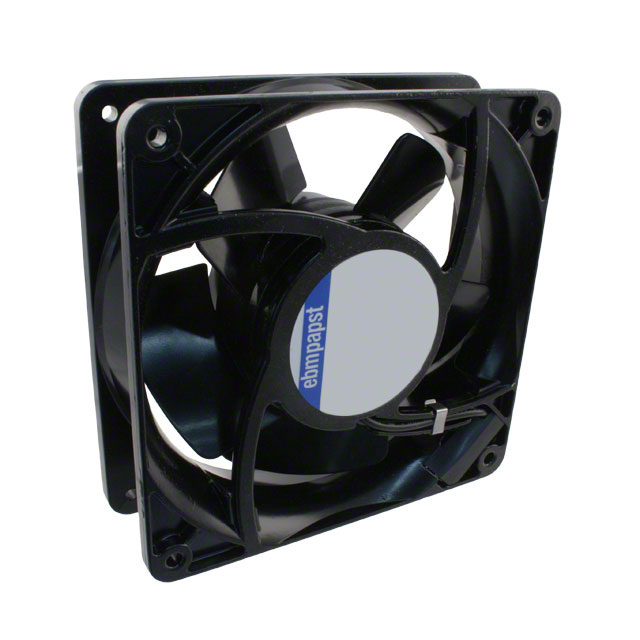

ebm-papst Inc. 4600XP	Metal	Metal		2	38 mm	Sintec	106 CFM	2.97 m³/min	115 VAC	Tubeaxial	Square	119 mm	119 mm	18 W			50 dB(A)			544.3 g	1.2 lbs
