PRBSD3 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

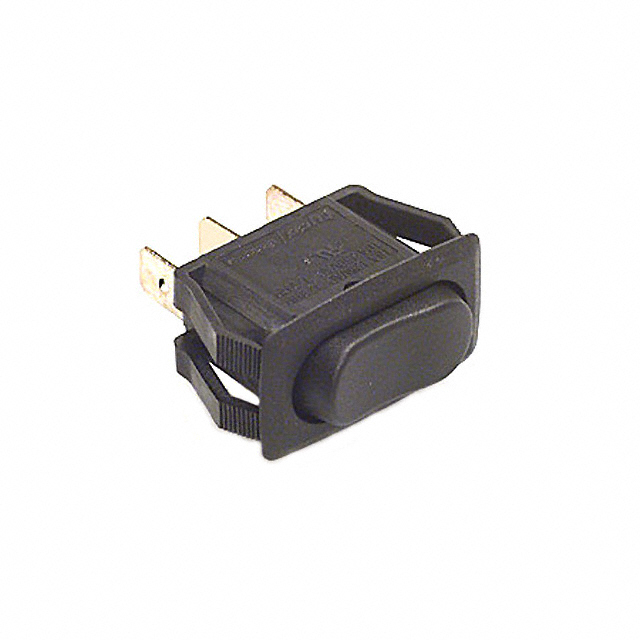

ROCKER SWITCHES SPDT 16A BLACK QC ROCKER SWITCH
| Part | Electrical Life | Mechanical Life | Termination Style | Mounting Type | Actuator Type | Color - Actuator/Cap | Approval Agency | Voltage Rating - AC | Switch Function | Actuator Marking | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Curved) | Black | UL | 125 V | On-Off-On | No Marking | SPDT | 27.6 mm | 13.8 mm | 85 °C | -20 ░C | 16 A |
 TE Connectivity AMP Connectors | 6000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Curved) | White | UL | 125 V | On-Off-On | No Marking | SPDT | 27.6 mm | 13.8 mm | 85 °C | -20 ░C | 16 A |
