155210 Series

Catalog

CONN HEADER VERT 10POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Style	Connector Type	Current Rating (Amps)	Contact Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Features	Material Flammability Rating	Shrouding	Number of Positions	Contact Shape	Termination	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Rows [custom]	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
3M Electronic Specialty 155210-6202-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder	10.8 mm	0.425 in	0.112 in	2.84 mm	Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy
3M Electronic Specialty 155210-2300-RB-WD	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Surface Mount	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot Pick and Place	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder	10.8 mm	0.425 in			Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy
3M Electronic Specialty 155210-5303-RA	200 µin	5.08 µm	Gold	0.25 µm	10 µin	2 mm	0.079 in	Right Angle Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder					Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy	3.94 mm	0.155 "	6.28 mm	0.247 "
3M Electronic Specialty 155210-5203-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Right Angle Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder					Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy	3.94 mm	0.155 "	6.28 mm	0.247 "

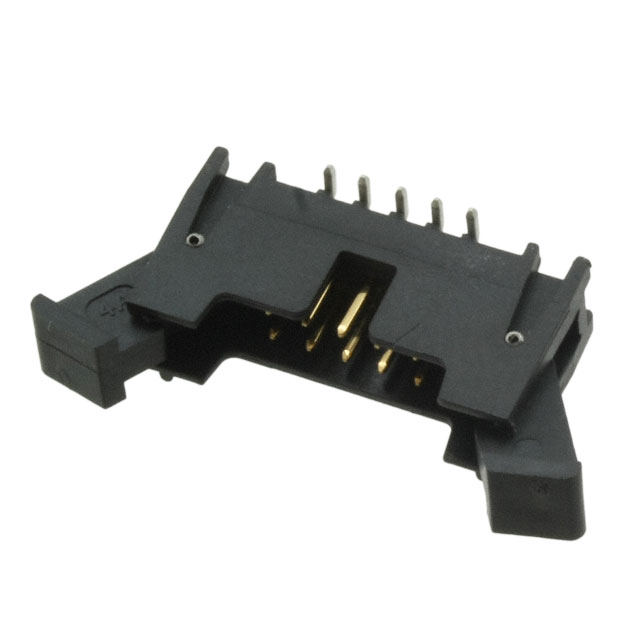

3M Electronic Specialty 155210-2200-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Surface Mount	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder	10.8 mm	0.425 in			Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy

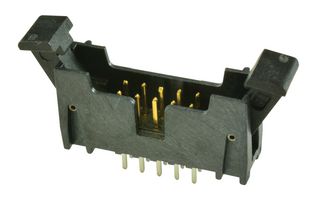

3M Electronic Specialty 155210-6302-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder	10.8 mm	0.425 in	0.112 in	2.84 mm	Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy
3M Electronic Specialty 155210-5302-RA	200 µin	5.08 µm	Gold	0.25 µm	10 µin	2 mm	0.079 in	Right Angle Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder			0.112 in	2.84 mm	Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy			6.28 mm	0.247 "
3M Electronic Specialty 155210-5302-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Right Angle Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder			0.112 in	2.84 mm	Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy			6.28 mm	0.247 "
3M Electronic Specialty 155210-5303-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Right Angle Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder					Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy	3.94 mm	0.155 "	6.28 mm	0.247 "
3M Electronic Specialty 155210-6303-RB	200 µin	5.08 µm	Gold	0.76 Ám	30 Áin	2 mm	0.079 in	Through Hole	Board to Cable/Wire	Header	1.25 A	Male Pin	Tin	-55 C	105 ░C	Black	3.81 mm	0.15 in	Keying Slot	UL94 V-0	Shrouded - 4 Wall	10	Square	Solder	10.8 mm	0.425 in			Latch Lock/Eject Hooks	0.079 "	2 mm	All	2	Copper Alloy	3.94 mm	0.155 "
