IN-S63 Series

Catalog

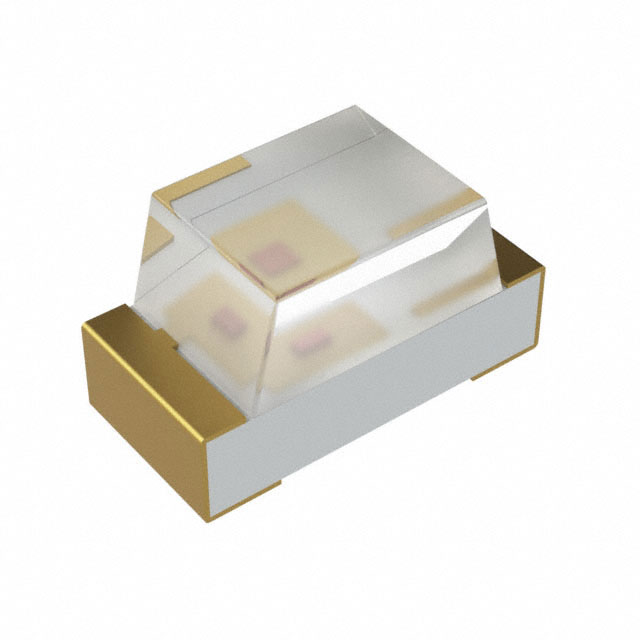

TOP VIEW / 0603 / 1.6X0.8X0.88

Part	Viewing Angle	Mounting Type	Current - DC Forward (If) (Max) [Max]	Type	Orientation	Package / Case	Package / Case	Wavelength	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Lens Color	Lens Size [x]	Lens Size [y]	Height (Max) [z]	Millicandela Rating	Wavelength - Peak	Wavelength - Dominant	Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Transparency	Lens Style	Height (Max) [z]	Current - Dark (Id) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]
Inolux Corporation IN-S63DTHIR	140 °	Surface Mount	65 mA	Infrared (IR)	Top View	1608 Metric	0603	940 nm	1.25 V	85 °C	-40 C	0.8 mW/sr

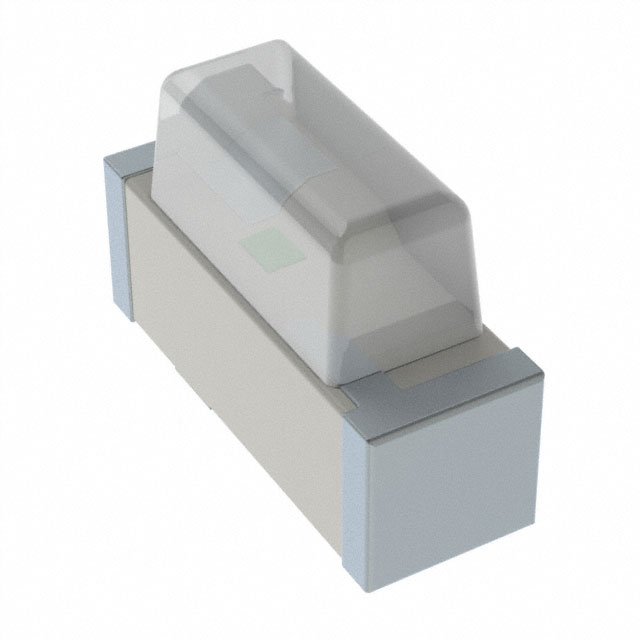

Inolux Corporation IN-S63AS5B	120 °	Right Angle Surface Mount					2-SMD No Lead		2.9 V				Colorless	1.2 mm	0.6 mm	0.6 mm	80 mcd	468 nm	467 nm	5 mA	Blue	1.1 mm	1.7 mm	Standard	Clear	Rectangle with Flat Top
Inolux Corporation IN-S63AS5Y	120 °	Right Angle Surface Mount					2-SMD No Lead		2 V				Colorless	1.2 mm	0.6 mm	0.6 mm	30 mcd	590 nm	588 nm	5 mA	Yellow	1.1 mm	1.7 mm	Standard	Clear	Rectangle with Flat Top

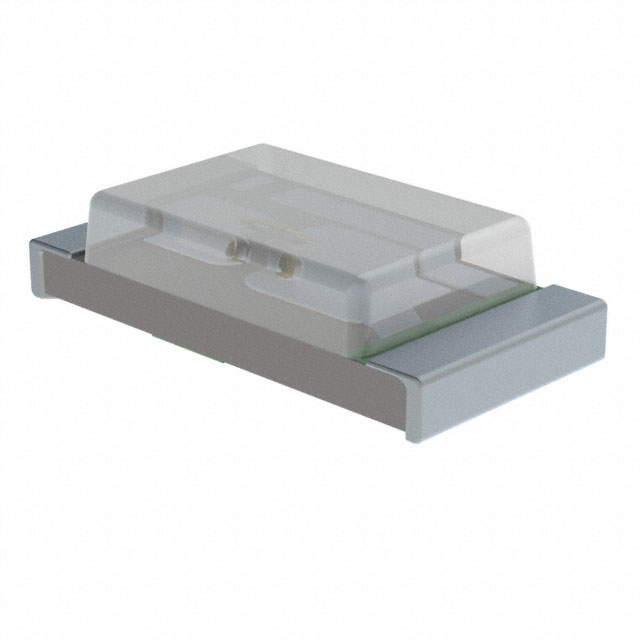

Inolux Corporation IN-S63AT5YG	120 °	Surface Mount				1608 Metric	0603		2 V				Colorless	1.15 mm	0.8 mm		11.5 mcd		573 nm	5 mA	Yellow-Green	0.8 mm	1.6 mm	Standard	Clear	Rectangle with Flat Top	0.4 mm

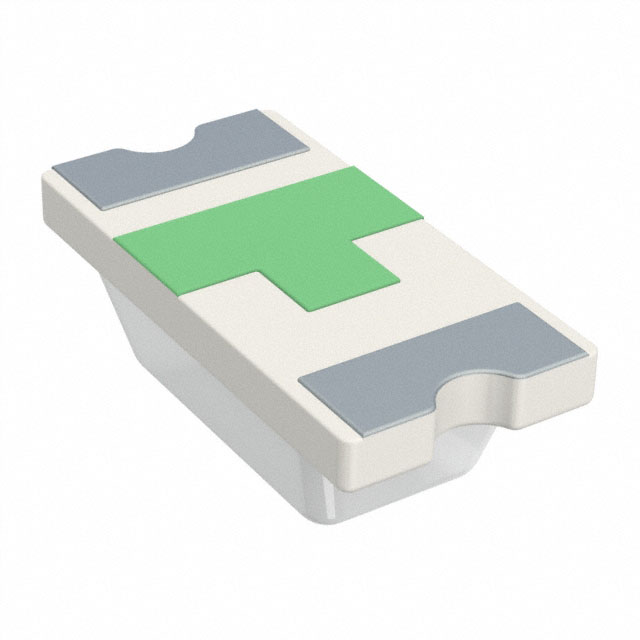

Inolux Corporation IN-S63BTA	120 °	Surface Mount				1608 Metric	0603		2 V				Colorless	1.2 mm	0.8 mm	0.6 mm	140 mcd	609 nm	605 nm	20 mA	Amber	0.8 mm	1.6 mm	Standard	Clear	Rectangle with Flat Top

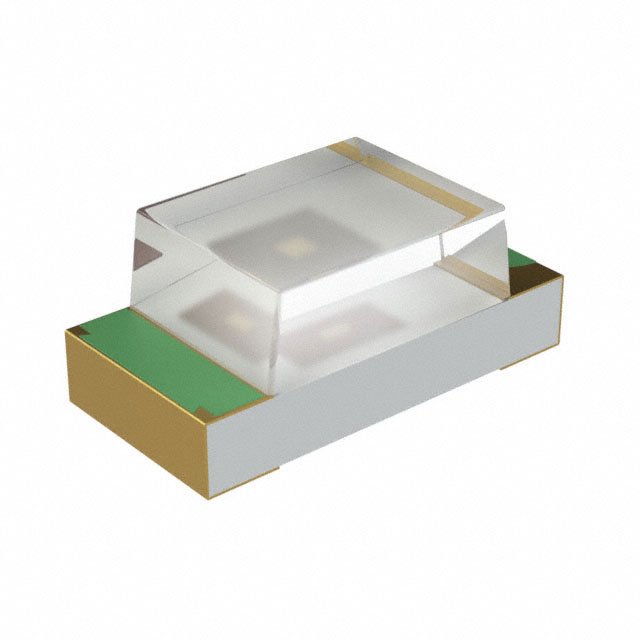

Inolux Corporation IN-S63FTHIR	140 °	Surface Mount	65 mA	Infrared (IR)	Top View	1608 Metric	0603	940 nm	1.25 V	85 °C	-40 C	0.8 mW/sr
Inolux Corporation IN-S63ASR	120 °	Right Angle Surface Mount					2-SMD No Lead		2.2 V				Colorless	1.2 mm	0.6 mm	0.6 mm	150 mcd	630 nm	622 nm	20 mA	Red	1.1 mm	1.7 mm	Standard	Clear	Rectangle with Flat Top
Inolux Corporation IN-S63DTPT		Surface Mount			Top View	1608 Metric	0603	940 nm		85 °C	-40 C																	100 nA	35 V	150 mW	20 mA
