796863 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

4 POS TERMI-BLOK PLUG VERTICAL

Part	Material Flammability Rating	Insulation Height	Insulation Height	Wire Strip Length [Max]	Wire Strip Length [Min]	Screw Size	Contact Material	Torque - Screw	Torque - Screw	Positions Per Level	Termination Style	Voltage - UL	Color	Number of Positions	Plug Wire Entry	Contact Mating Finish	Type	Features	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Positions Per Level [custom]
TE Connectivity AMP Connectors 796863-4	UL94 V-0	0.984 "	25 mm	7.5 mm	6 mm	M3	Phosphor Bronze	7 Lb-In	0.79 Nm	4	Screw - Rising Cage Clamp	300 V	Green	4	90 °	Tin	Plug Female Sockets	Mating Flange Retention Latches (Wire Side)	1	30 AWG	12 AWG	Free Hanging (In-Line)	-40 C	110 °C	5.08 mm	0.2 in

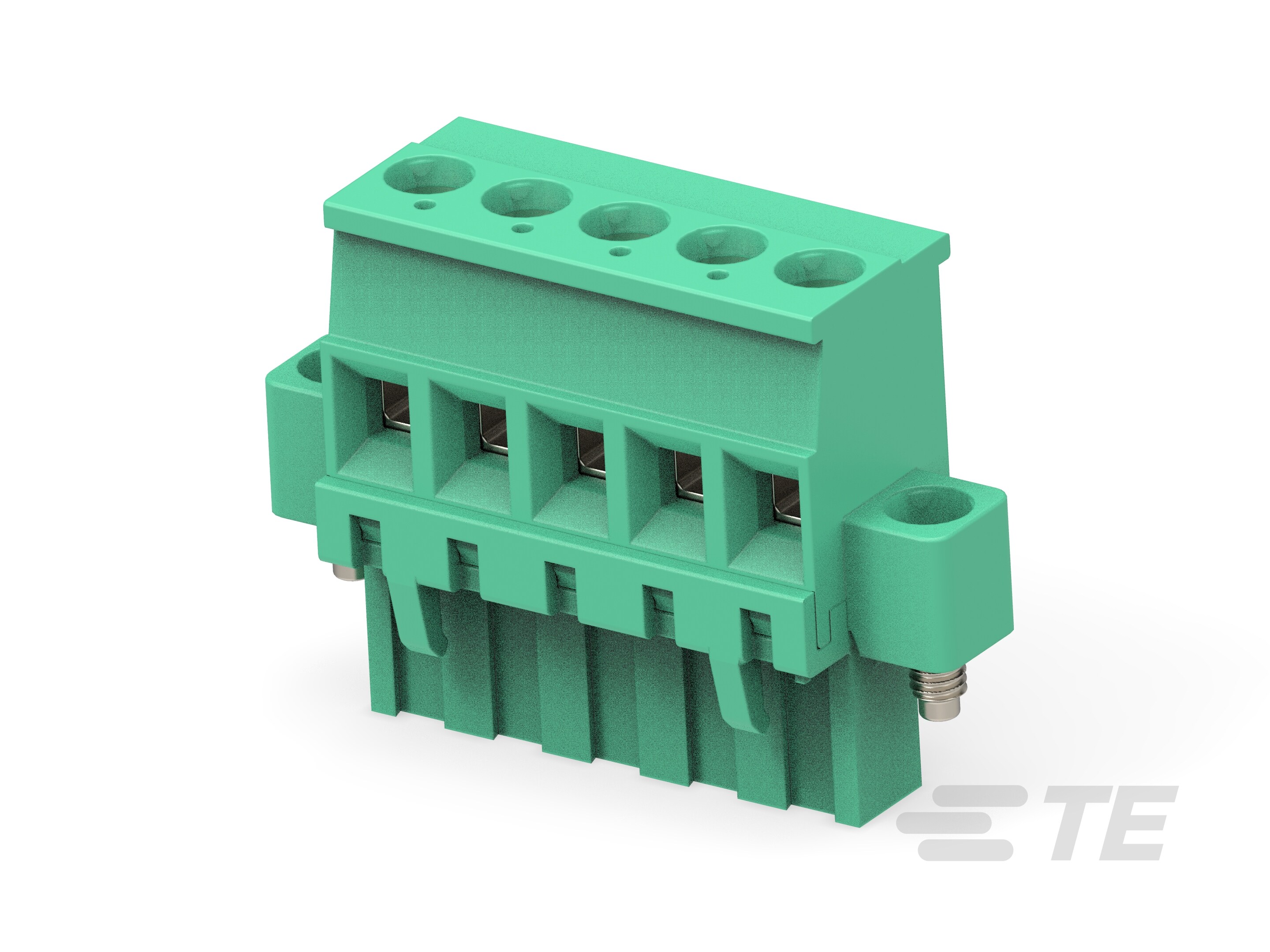

TE Connectivity AMP Connectors 796863-5	UL94 V-0	0.984 "	25 mm	7.5 mm	6 mm	M3	Phosphor Bronze	7 Lb-In	0.79 Nm	5	Screw - Rising Cage Clamp	300 V	Green	5	90 °	Tin	Plug Female Sockets	Mating Flange Retention Latches (Wire Side)	1	30 AWG	12 AWG	Free Hanging (In-Line)	-40 C	110 °C	5.08 mm	0.2 in

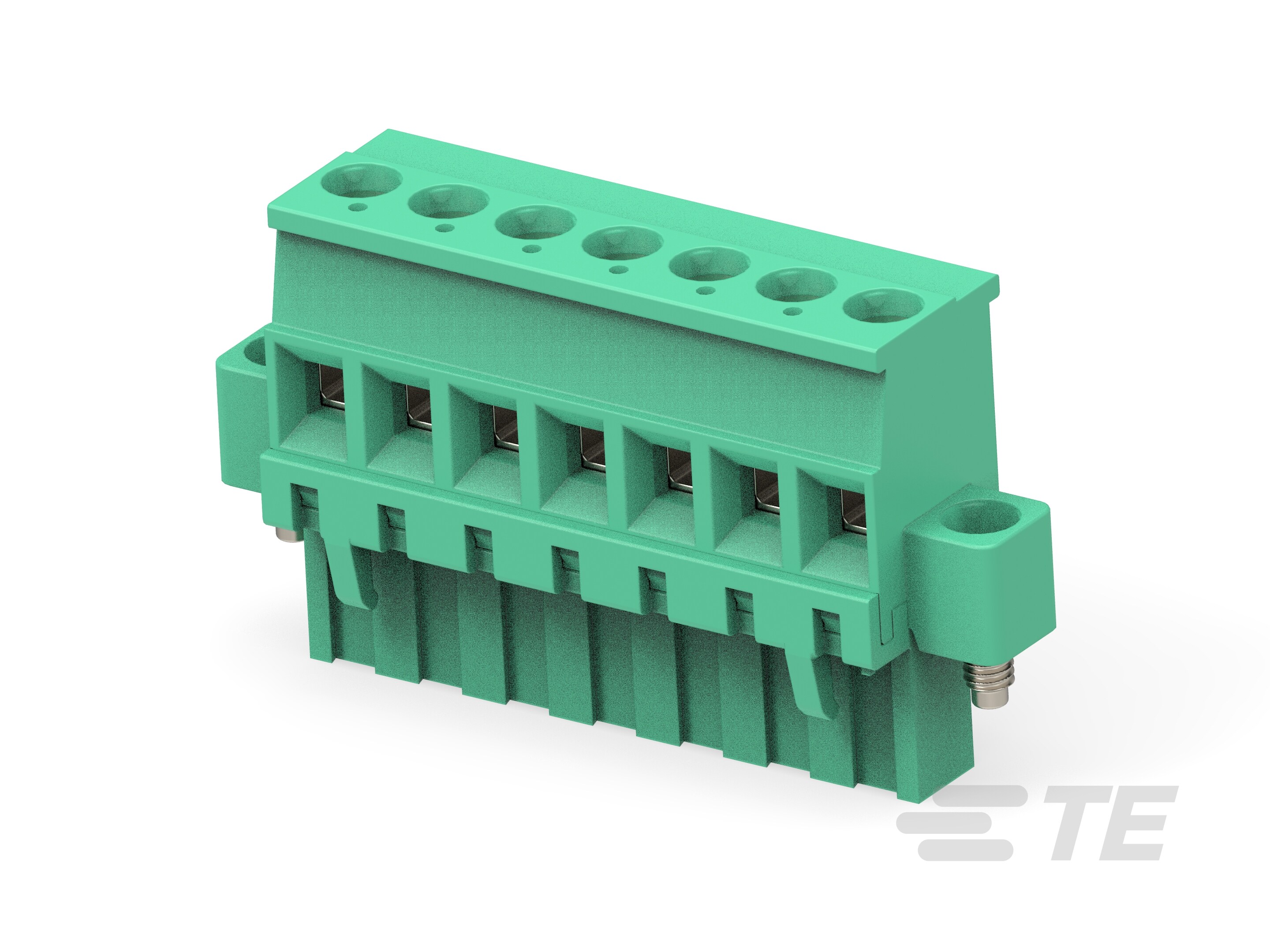

TE Connectivity AMP Connectors 796863-7	UL94 V-0	0.984 "	25 mm	7.5 mm	6 mm	M3	Phosphor Bronze	7 Lb-In	0.79 Nm		Screw - Rising Cage Clamp	300 V	Green	7	90 °	Tin	Plug Female Sockets	Mating Flange Retention Latches (Wire Side)	1	30 AWG	12 AWG	Free Hanging (In-Line)	-40 C	110 °C	5.08 mm	0.2 in	7
TE Connectivity AMP Connectors 1-796863-1	UL94 V-0	0.984 "	25 mm	7.5 mm	6 mm	M3	Phosphor Bronze	7 Lb-In	0.79 Nm	11	Screw - Rising Cage Clamp	300 V	Green	11	90 °	Tin	Plug Female Sockets	Mating Flange Retention Latches (Wire Side)	1	30 AWG	12 AWG	Free Hanging (In-Line)	-40 C	110 °C	5.08 mm	0.2 in

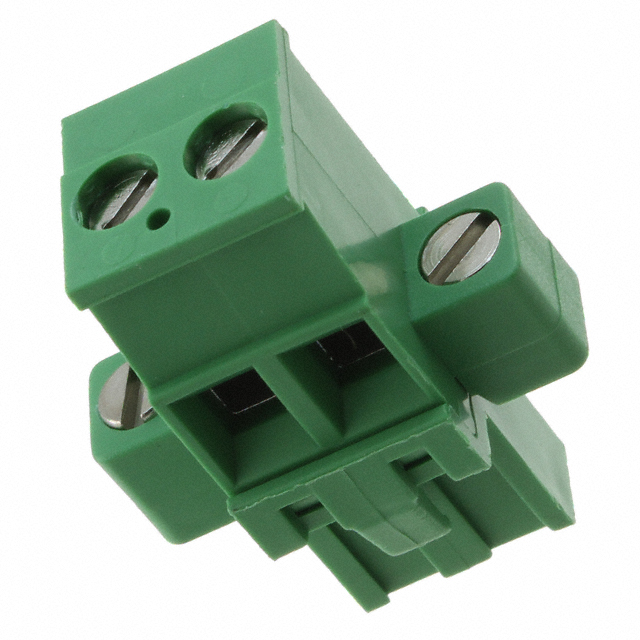

TE Connectivity AMP Connectors 796863-2	UL94 V-0	0.984 "	25 mm	7.5 mm	6 mm	M3	Phosphor Bronze	7 Lb-In	0.79 Nm	2	Screw - Rising Cage Clamp	300 V	Green	2	90 °	Tin	Plug Female Sockets	Mating Flange Retention Latches (Wire Side)	1	30 AWG	12 AWG	Free Hanging (In-Line)	-40 C	110 °C	5.08 mm	0.2 in
