RZF1-1A4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 9V
| Part | Coil Resistance | Relay Type | Contact Material | Coil Current | Termination Style | Contact Rating (Current) | Release Time | Seal Rating | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Voltage | Operate Time | Mounting Type | Contact Form | Approval Agency | Coil Type | Must Release Voltage | Coil Insulation | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

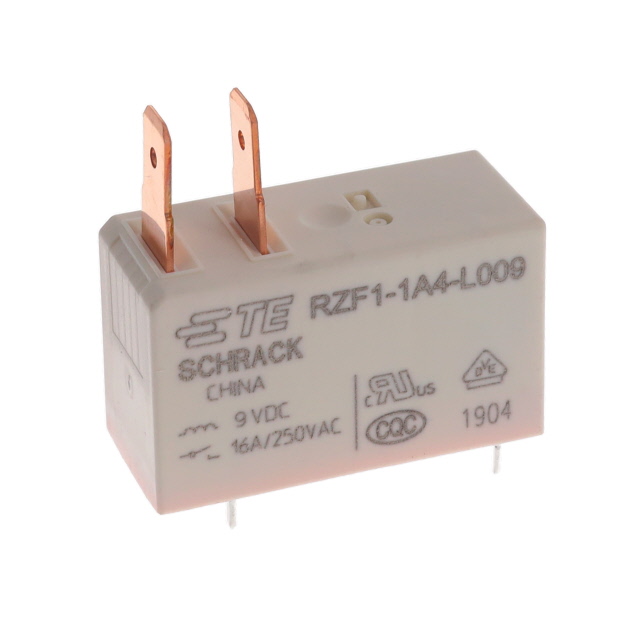

 TE Connectivity AMP Connectors | 153 Ohms | General Purpose | Silver Nickel (AgNi) | 58.9 mA | PC Pin Quick Connect | 16 A | 6 ms | Sealed - Flux Protection | 6400 VA | 85 °C | -40 C | 6.3 VDC | 9 VDC | 8 ms | Through Hole | SPST-NO (1 Form A) | CQC cURus VDE | Non Latching | 0.9 VDC | Class F | 400 VAC |

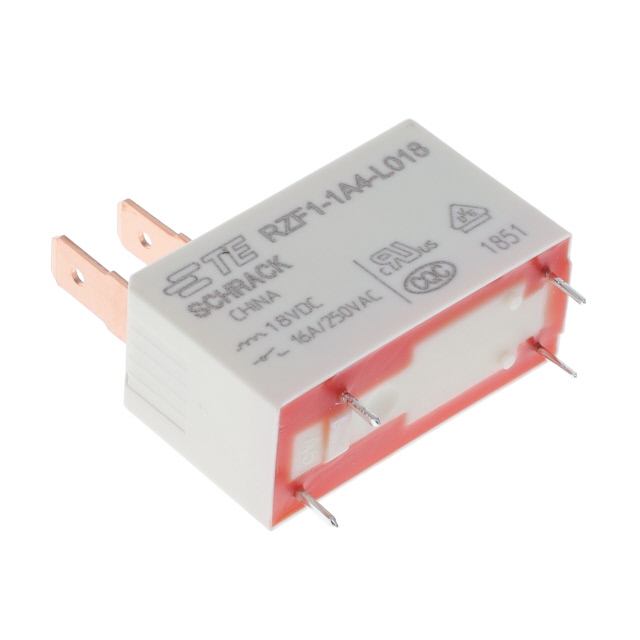

 TE Connectivity AMP Connectors | 611 Ohms | General Purpose | Silver Nickel (AgNi) | 29.5 mA | PC Pin Quick Connect | 16 A | 6 ms | Sealed - Flux Protection | 6400 VA | 85 °C | -40 C | 12.6 VDC | 18 VDC | 8 ms | Through Hole | SPST-NO (1 Form A) | CQC cURus VDE | Non Latching | 1.8 VDC | Class F | 400 VAC |

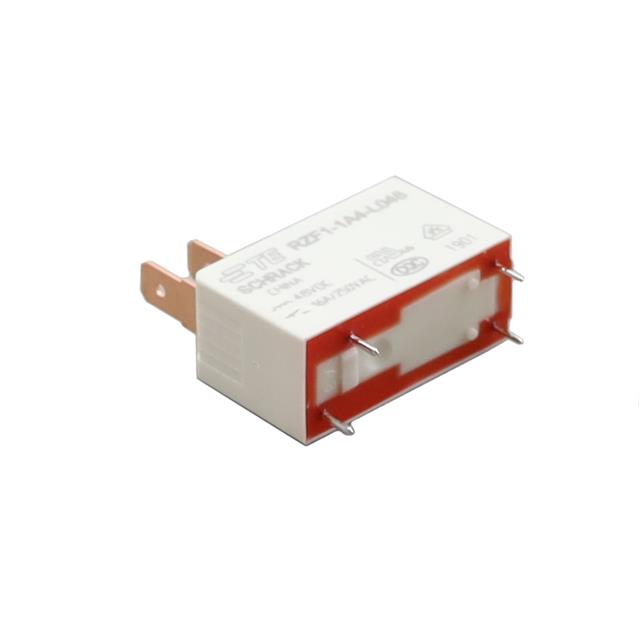

 TE Connectivity AMP Connectors | 4.35 kOhms | General Purpose | Silver Nickel (AgNi) | 11 mA | PC Pin Quick Connect | 16 A | 6 ms | Sealed - Flux Protection | 6400 VA | 85 °C | -40 C | 33.6 VDC | 48 VDC | 8 ms | Through Hole | SPST-NO (1 Form A) | CQC cURus VDE | Non Latching | 4.8 VDC | Class F | 400 VAC |

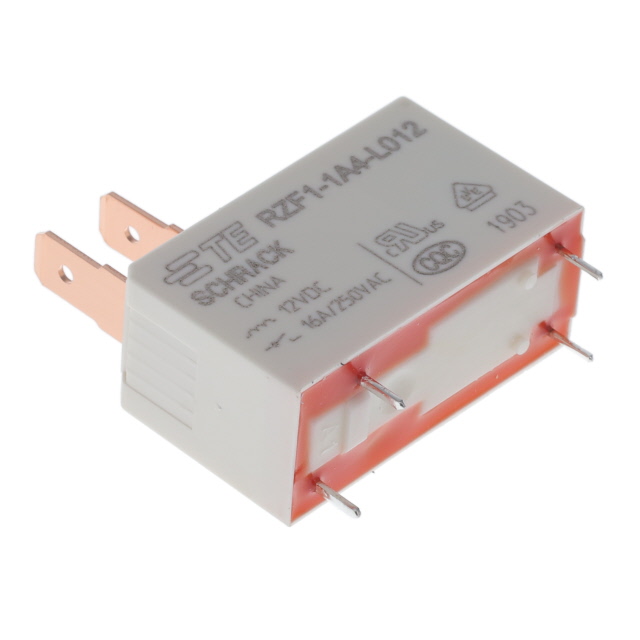

 TE Connectivity AMP Connectors | 272 Ohms | General Purpose | Silver Nickel (AgNi) | 44.2 mA | PC Pin Quick Connect | 16 A | 6 ms | Sealed - Flux Protection | 6400 VA | 85 °C | -40 C | 8.4 VDC | 12 VDC | 8 ms | Through Hole | SPST-NO (1 Form A) | CQC cURus VDE | Non Latching | 1.2 VDC | Class F | 400 VAC |

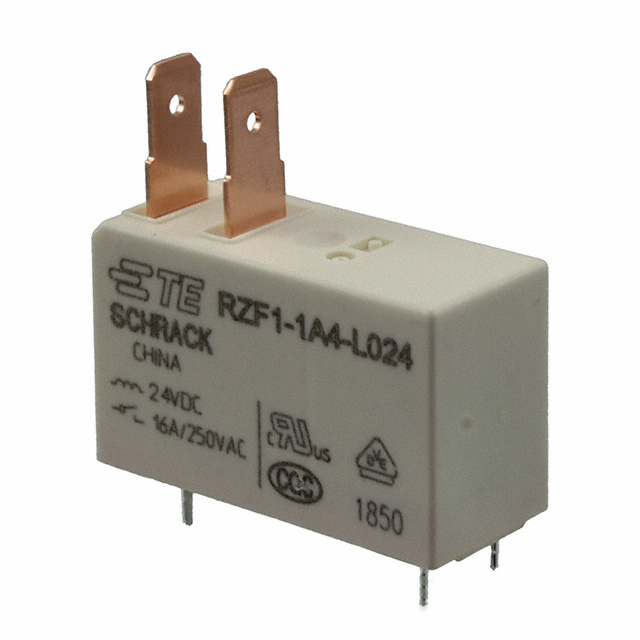

 TE Connectivity AMP Connectors | 1.09 kOhms | General Purpose | Silver Nickel (AgNi) | 22.1 mA | PC Pin Quick Connect | 16 A | 6 ms | Sealed - Flux Protection | 6400 VA | 85 °C | -40 C | 16.8 VDC | 24 VDC | 8 ms | Through Hole | SPST-NO (1 Form A) | CQC cURus VDE | Non Latching | 2.4 VDC | Class F | 400 VAC |
