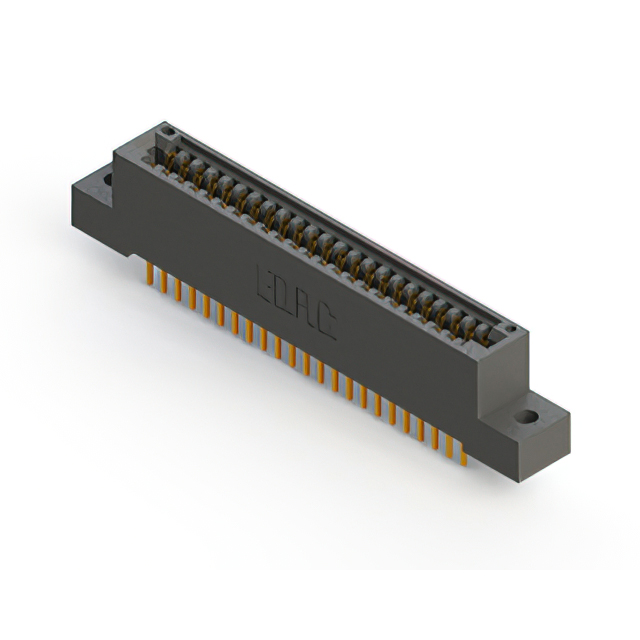

395-046 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 46POS 0.100
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Color | Gender | Contact Finish | Mounting Type | Number of Positions/Bay/Row | Termination | Number of Positions | Pitch | Pitch | Contact Type | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows [custom] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Right Angle Through Hole | 46 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 46 | Wire Wrap | 46 | 0.1 " | 2.54 mm | Cantilever | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | |||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Board Edge Straddle Mount | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | Card Extender Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Board Edge Straddle Mount | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | 0.156 " | 3.96 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 23 | Wire Wrap | 46 | 0.1 " | 2.54 mm | Cantilever | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 46 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | 1 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Female | Gold | Through Hole | 23 | Solder | 46 | 0.1 " | 2.54 mm | Cantilever | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | -40 C | 105 ░C | Non Specified - Dual Edge | Dual | 0.25 Ám | 10 Áin | Copper Alloy | 2 | 2 |
