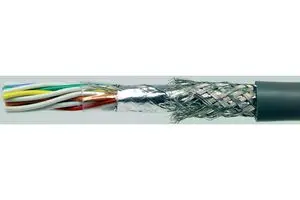

86714CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 28COND 22AWG
| Part | Voltage | Shield Type | Conductor Material | Length | Length | Number of Conductors | Jacket Color | Conductor Strand [custom] | Conductor Strand | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Shield Coverage | Jacket (Insulation) Material | Shield Material | Wire Gauge | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | 300 V | Braid Foil | Copper Tinned | 1000 ft | 304.8 m | 28 Conductors | Slate | 19 Strands | 34 AWG | Poly-Vinyl Chloride (PVC) | 1.346 mm | 0.053 in | ISO 10993 UL Style 2661 | 0.527 in | 13.39 mm | Biological Compatibility Drain Wire | 85 % 100 % | Poly-Vinyl Chloride (PVC) | Aluminum Copper Tinned | 22 AWG | Multi-Pair | ||
 ALPHA WIRE | 300 V | Braid Foil | Copper Tinned | 28 Conductors | Slate | 19 Strands | 34 AWG | Poly-Vinyl Chloride (PVC) | 1.346 mm | 0.053 in | ISO 10993 UL Style 2661 | 0.527 in | 13.39 mm | Biological Compatibility Drain Wire | 85 % 100 % | Poly-Vinyl Chloride (PVC) | Aluminum Copper Tinned | 22 AWG | Multi-Pair | 30.5 m | 100 ft |
