FZ300R12 Series
Manufacturer: INFINEON
Beta
⌘K

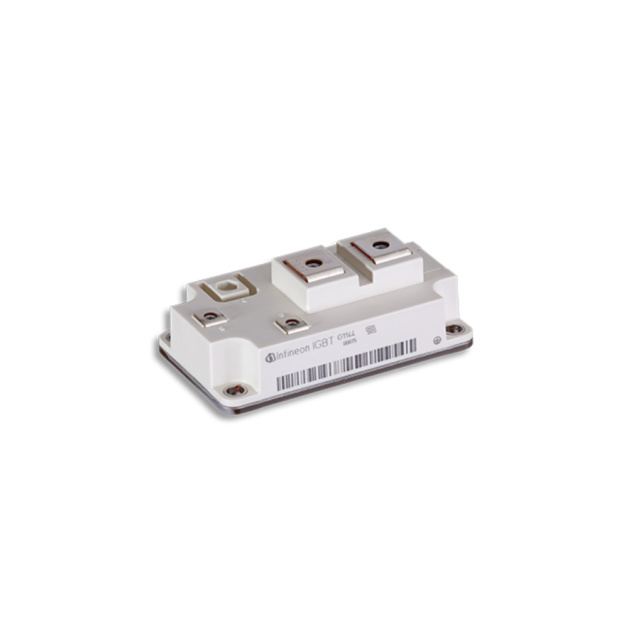

THE FZ300R12KE3G IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Input Capacitance (Cies) @ Vce | Current - Collector (Ic) (Max) [Max] | Current - Collector Cutoff (Max) [Max] | Vce(on) (Max) @ Vge, Ic | Supplier Device Package | NTC Thermistor | IGBT Type | Input | Configuration | Package / Case | Voltage - Collector Emitter Breakdown (Max) [Max] | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 125 °C | -40 C | Chassis Mount | 21 nF | 480 A | 5 mA | 2.15 V | Module | Trench Field Stop | Standard | Single | Module | 1200 V | 1450 W |
