PSM10R Series

Wall Mount AC Adapters 10W 5V 2A Micro B DC output

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 10W 5V 2A Micro B DC output

Catalog

Wall Mount AC Adapters 10W 5V 2A Micro B DC output

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Applications	Approval Agency	Input Type	Power (Watts)	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Form	Efficiency	Input Connector	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Output Connector	Current - Output (Max) [Max]	Region Utilized	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Phihong USA PSM10R-050A-R	71.7 mm	1.77 in	1.22 in	45 mm	2.82 in	31 mm	264 VAC	90 VAC	5 V	ITE (Commercial)	CB CE cULus	Multi-Blade (Sold Separately)	10 W	Positive Center	40 °C	0 °C	Wall Mount	Level VI	Multi-Blade	1.2 m	47.2 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	2 A	International

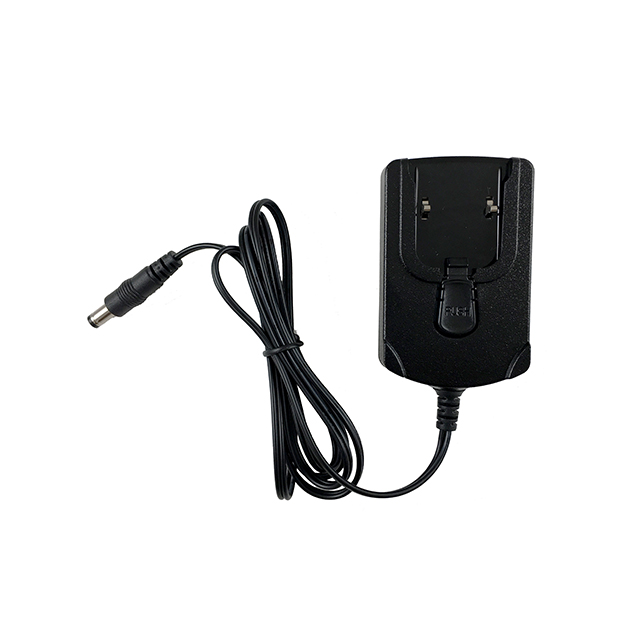

Phihong USA PSM10R-050A	71.7 mm	1.77 in	1.22 in	45 mm	2.82 in	31 mm	264 VAC	90 VAC	5 V	ITE (Commercial)	CB CE cULus	Multi-Blade (Sold Separately)	10 W	Positive Center	40 °C	0 °C	Wall Mount	Level VI	Multi-Blade	1.2 m	47.2 in	10 mm	2.1 mm 5.5 mm	Barrel Plug	2 A	International

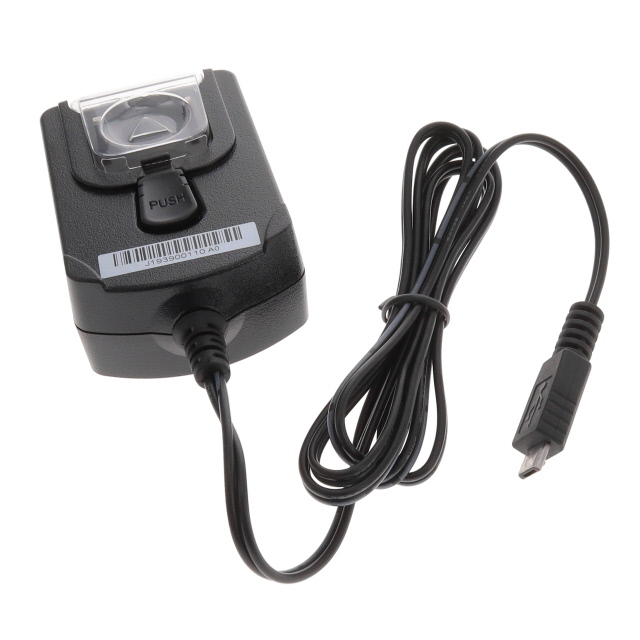

Phihong USA PSM10R-050A(M)-R	2.82 "			1.77 in		1.21 "	264 VAC	90 VAC	5 V	ITE (Commercial)	AS/NZS cULus IEC	Multi-Blade (Sold Separately)	10 W		40 °C	0 °C	Wall Mount	Level VI	Multi-Blade	1.2 m	47.2 in			USB Micro	2 A	International	60950-1	45 mm	71.7 mm	30.8 mm
