415-047 Series
Manufacturer: EDAC Inc.
Beta
⌘K

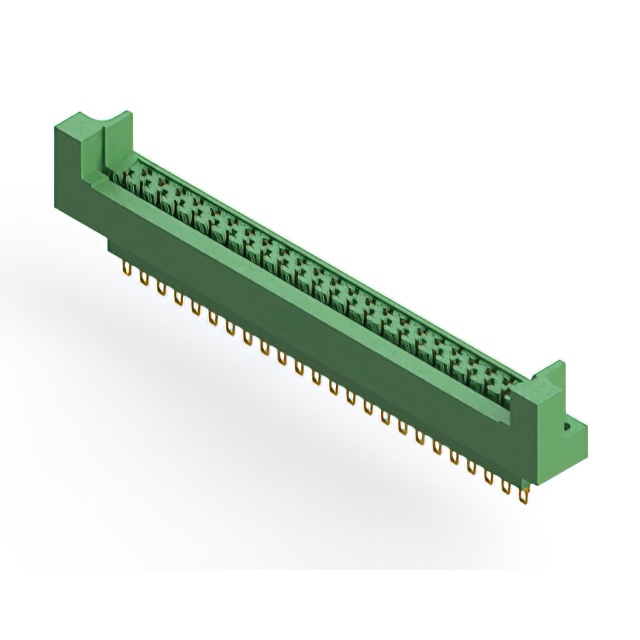

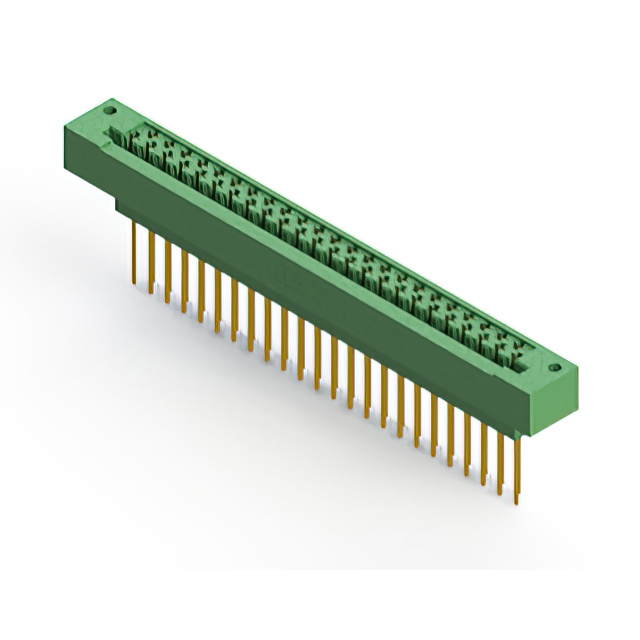

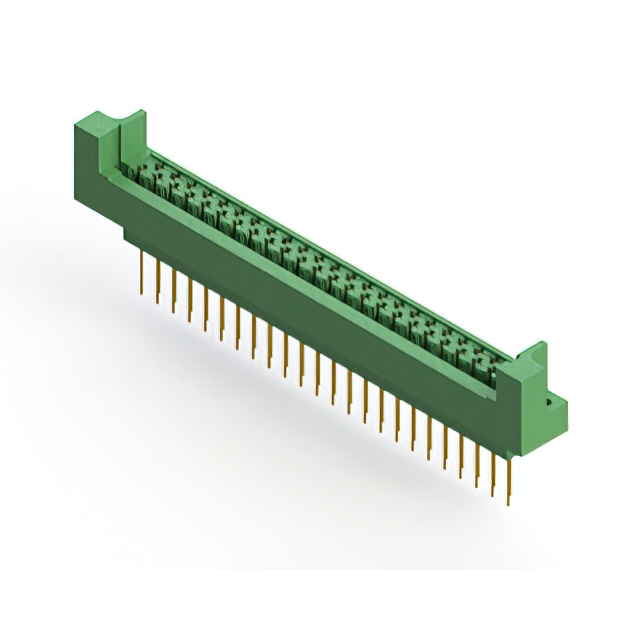

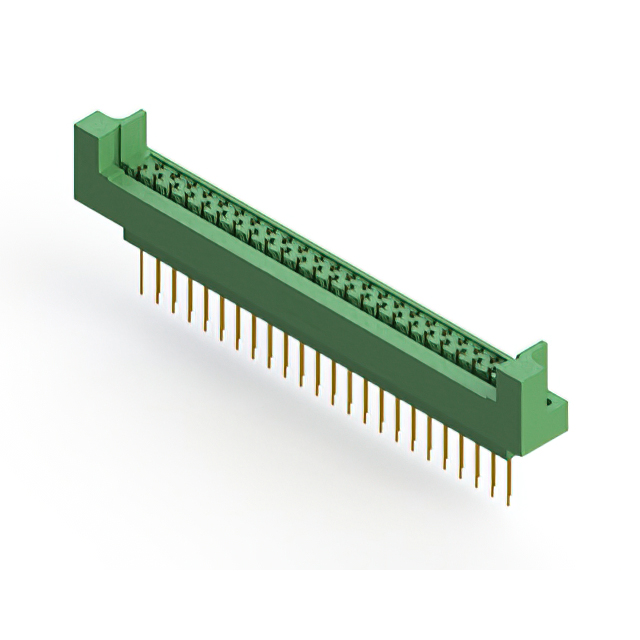

CONN EDGE DL FMALE 47P 0.200 2PC
| Part | Material - Insulation | Termination Rows [custom] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Termination | Gender | Number of Rows [custom] | Features | Card Thickness | Card Thickness | Number of Positions | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Color | Contact Material | Material Flammability Rating | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Solder Eyelet(s) | Female | 2 | Card Guides | 1.57 mm | 0.062 in | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Card Guides | 2.36 mm | 0.093 " | 47 | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Green | UL94 V-0 | Contacts Not Included | |||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Wire Wrap | Female | 2 | Card Guides | 2.36 mm | 0.093 " | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Solder Eyelet(s) | Female | 2 | 1.57 mm | 0.062 in | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Solder | Female | 2 | 1.57 mm | 0.062 in | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 5.08 mm | 0.2 in | Card Guides | 1.57 mm | 0.062 in | 47 | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Green | UL94 V-0 | Contacts Not Included | |||||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Solder | Female | 2 | 2.36 mm | 0.093 " | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Wire Wrap | Female | 2 | Card Guides | 1.57 mm | 0.062 in | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Wire Wrap | Female | 2 | 2.36 mm | 0.093 " | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 5.08 mm | 0.2 in | Solder | Female | 2 | Card Guides | 1.57 mm | 0.062 in | 47 | Gold | -65 ░C | 125 °C | 3.25 mm | 0.128 " | Panel Mount Through Hole | Green | Copper Alloy |
