MHSD-04 Series
Manufacturer: Adam Tech
Beta
⌘K
MINI FAKRA BOARD-SIDE PLUGS F CO
| Part | Dielectric Material | Mating Cycles | Center Contact Plating | Insertion Loss | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Shield Termination | Connector Type | Features | Housing Color | Number of Ports | Contact Termination | Impedance | Connector Style | Frequency - Max [Max] | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

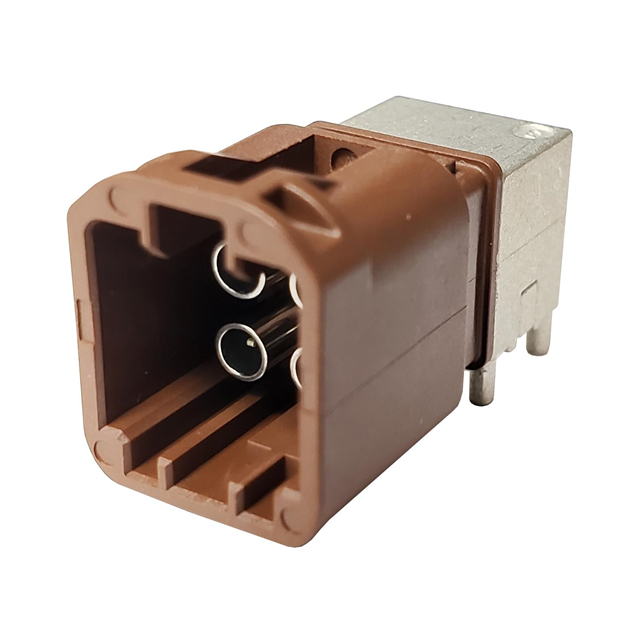

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code F | Brown | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |

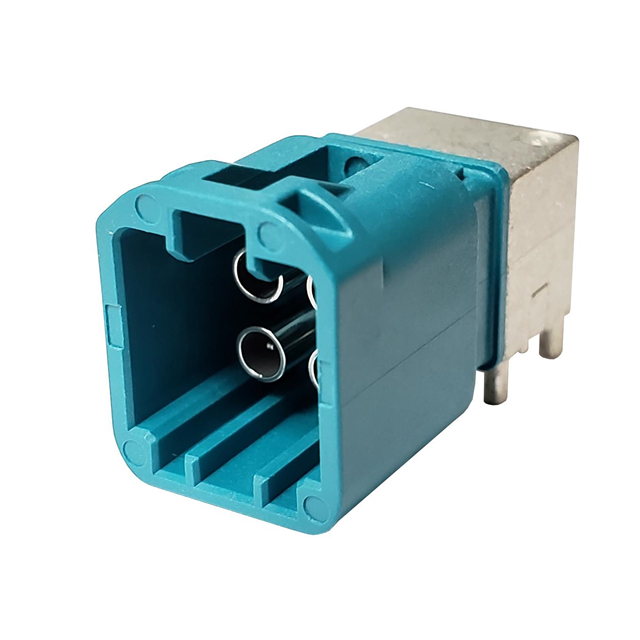

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code Z | Blue Water | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |

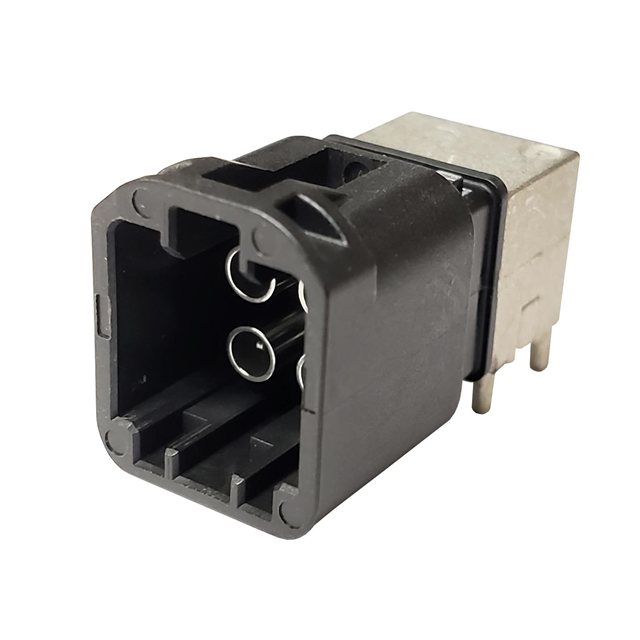

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code A | Black | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |

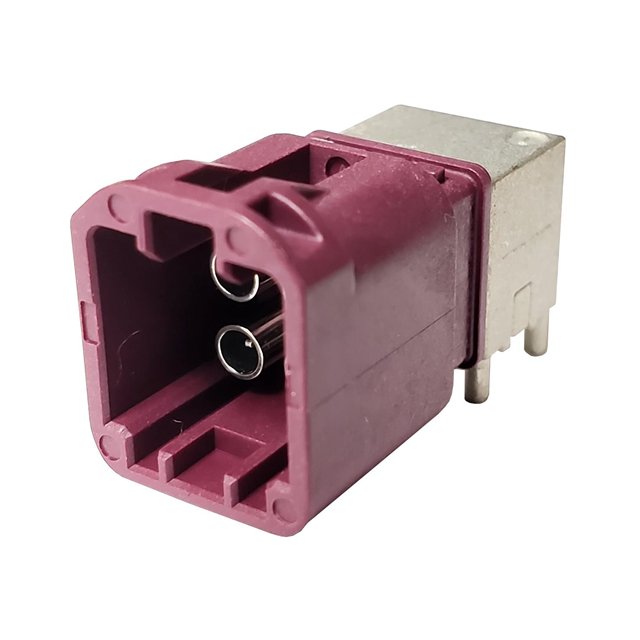

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code D | Claret Violet | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |

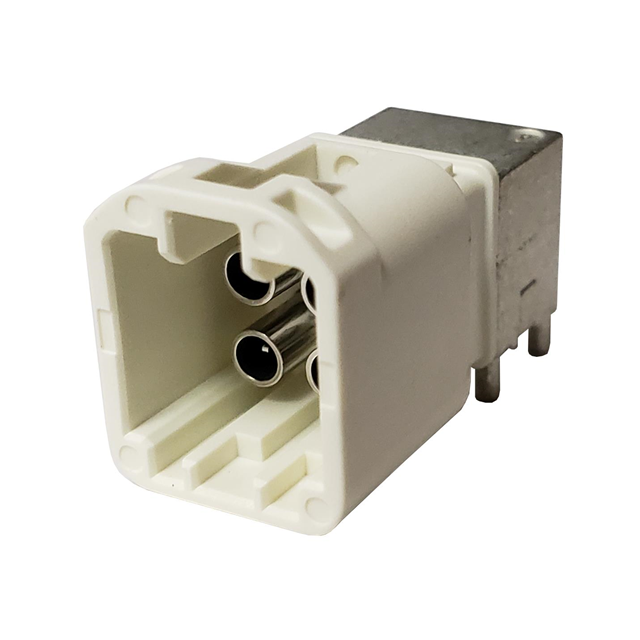

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code B | White | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |

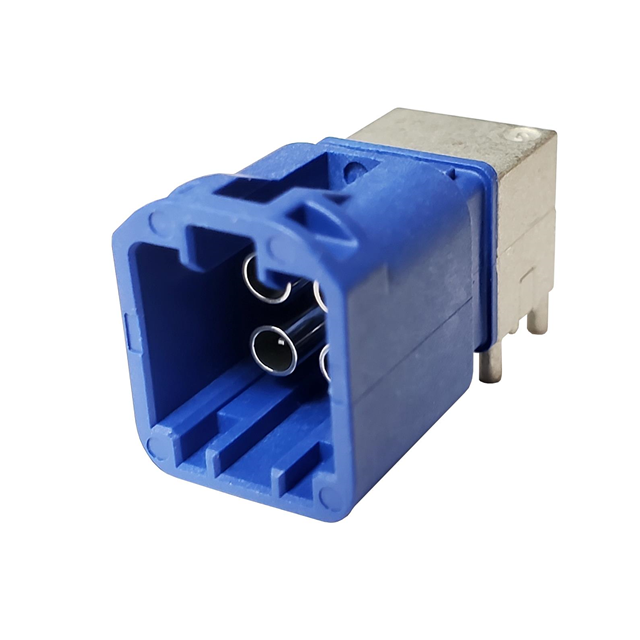

 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code C | Blue | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |
 Adam Tech | Thermoplastic | 25 | Silver | 0.75 dB | Zinc Die Cast | Tin | -40 C | 105 ░C | Brass | Solder | Plug Male Pin | Code E | Green | 1 | Solder | 50 Ohms | Fakra Miniature Coaxial Quadraxial | 9 GHz | Right Angle Through Hole | Latch Lock |
