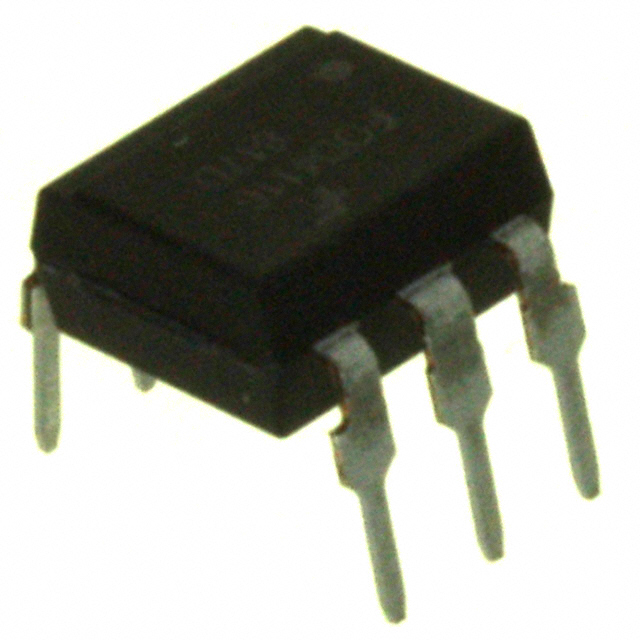

FOD4116 Series

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Part	Number of Channels	Mounting Type	Turn On Time	Current - LED Trigger (Ift) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Current - Hold (Ih)	Output Type	Voltage - Forward (Vf) (Typ)	Voltage - Off State	Package / Case	Approval Agency	Static dV/dt (Min) [Min]	Supplier Device Package	Package / Case	Package / Case	Package / Case
ON Semiconductor FOD4116SD	1	Surface Mount	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-SMD Gull Wing	CSA UL	10 kV/µs	6-SMD
ON Semiconductor FOD4116T	1	Through Hole	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-DIP	CSA UL	10 kV/µs	6-DIP	10.16 mm	10.16 mm
ON Semiconductor FOD4116TV	1	Through Hole	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-DIP	CSA UL VDE	10 kV/µs	6-DIP	10.16 mm	10.16 mm
ON Semiconductor FOD4116	1	Through Hole	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-DIP	CSA UL	10 kV/µs	6-DIP	10.16 mm	10.16 mm
ON Semiconductor FOD4116SD	1	Surface Mount	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-SMD Gull Wing	CSA UL	10 kV/µs	6-SMD
ON Semiconductor FOD4118	1	Through Hole	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	800 V	6-DIP	CSA UL	10 kV/µs	6-DIP		7.62 mm	0.3 in
ON Semiconductor FOD4116SDV	1	Surface Mount	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-SMD Gull Wing	CSA UL VDE	10 kV/µs	6-SMD
ON Semiconductor FOD4116	1	Through Hole	60 µs	1.3 mA	100 °C	-55 °C	30 mA	500 µA	Triac	1.25 V	600 V	6-DIP	CSA UL	10 kV/µs	6-DIP		7.62 mm	0.3 in

Catalog

Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing

Key Features

• 300mA on-state current

• Zero-voltage crossing

• High blocking voltage

• 800V (FOD4108, FOD4118)

• 600V (FOD410, FOD4116)

• High trigger sensitivity

• 1.3mA (FOD4116, FOD4118)

• 2mA (FOD410, FOD4108)

• High static dv/dt (10,000V/µs)

• UL, VDE, CSA approved

• Lead free assembly

Description

The FOD410, FOD4108, FOD4116 and FOD4118 devices consist of an infrared emitting diode coupled to a hybrid triac formed with two inverse parallel SCRs which form the triac function capable of driving discrete triacs. The FOD4116 and FOD4118 utilize a high efficiency infrared emitting diode which offers an improved trigger sensitivity. These devices are housed in a standard 6-pin dual in-line (DIP) package.
