PREC040 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 80POS 2.54MM

Part	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Current Rating (Amps)	Mounting Type	Insulation Material	Contact Finish - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Material	Shrouding	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Style	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PREC040DAAN-RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin	0.1 in	2.54 mm	Solder	Brass	Unshrouded	80	0.448 in	11.39 mm	0.23 in	5.84 mm	Push-Pull	3.05 mm	0.12 in	All	Board to Board Cable	2	-40 C	105 ░C	0.1 "	2.54 mm

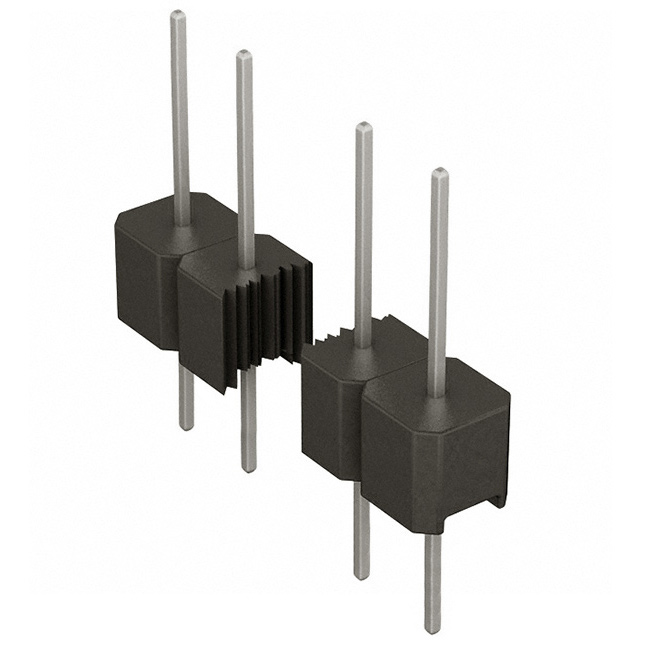

Sullins Connector Solutions PREC040SAEN-RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin			Solder	Brass	Unshrouded	40	0.848 in	21.55 mm	0.23 in	5.84 mm	Push-Pull	13.21 mm	0.52 in	All	Board to Board Cable		-40 C	105 ░C	0.1 "	2.54 mm	1

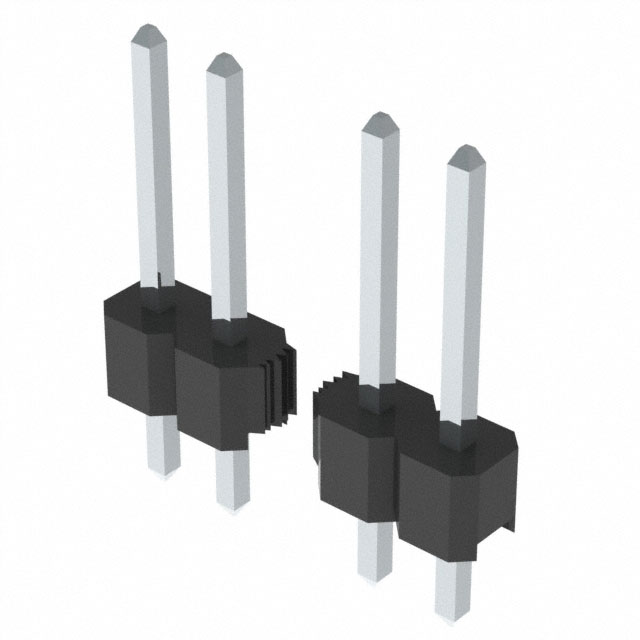

Sullins Connector Solutions PREC040SFAN-RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin			Solder	Brass	Unshrouded	40			0.318 in	8.08 mm	Push-Pull	3.05 mm	0.12 in	All	Board to Board Cable		-40 C	105 ░C	0.1 "	2.54 mm	1	13.63 mm	0.537 in
Sullins Connector Solutions PREC040SACN-RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin			Solder	Brass	Unshrouded	40			0.23 in	5.84 mm	Push-Pull	8.13 mm	0.32 in	All	Board to Board Cable		-40 C	105 ░C	0.1 "	2.54 mm	1	16.47 mm	0.648 in

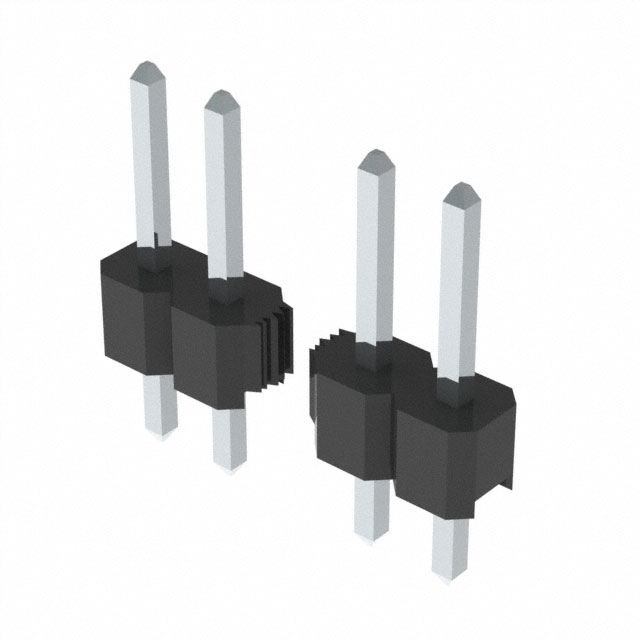

Sullins Connector Solutions PREC040SAAN-RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin			Solder	Brass	Unshrouded	40	0.448 in	11.39 mm	0.23 in	5.84 mm	Push-Pull	3.05 mm	0.12 in	All	Board to Board Cable		-40 C	105 ░C	0.1 "	2.54 mm	1
Sullins Connector Solutions PREC040SBDN-M71RC	Header Breakaway	UL94 V-0	0.098 "	2.5 mm	Black	Square	3 A	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin			Solder	Brass	Unshrouded	40			0.23 in	5.84 mm	Push-Pull	10.67 mm	0.42 in	All	Board to Board Cable		-40 C	105 ░C	0.1 "	2.54 mm	1
Sullins Connector Solutions PREC040DBAN-M71RC	Header Breakaway	UL94 V-0	0.197 "	5 mm	Black	Square	3 A	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	Male Pin	0.1 in	2.54 mm	Solder	Brass	Unshrouded	80			0.23 in	5.84 mm	Push-Pull	3.05 mm	0.12 in	All	Board to Board Cable	2	-40 C	105 ░C	0.1 "	2.54 mm
