SRN3010BTA Series

Catalog

POWER INDUCTOR (SMD), 2.2 ΜH, 2.6 A, SEMISHIELDED, 1.8 A, SRN3010BTA SERIES

Part	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Ratings	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Frequency - Self Resonant	Current - Saturation (Isat)	Type	Material - Core	Package / Case	Package / Case	Inductance	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)
Bourns Inc. SRN3010BTA-2R2M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	101 MHz	1.8 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	2.2 µH	120 mOhm	1 MHz	10	2.6 A	-55 C	125 °C
Bourns Inc. SRN3010BTA-4R7M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	72 MHz	1.3 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	4.7 ÁH	228 mOhm	1 MHz	10	1.8 A	-55 C	125 °C

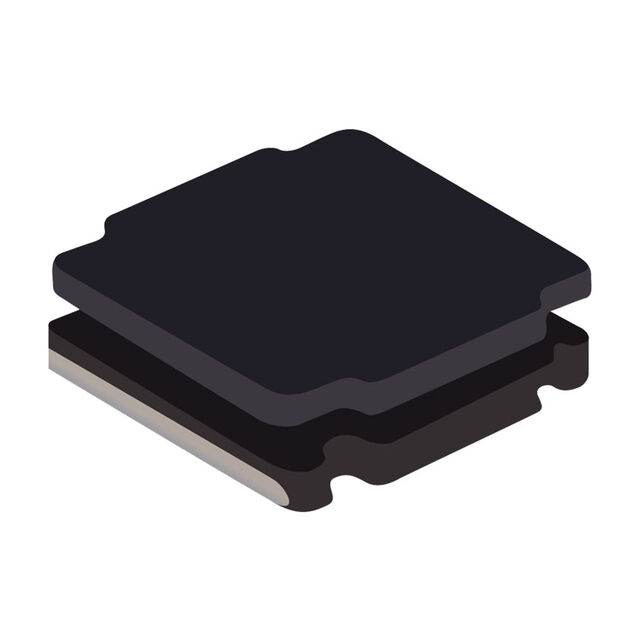

Bourns Inc. SRN3010BTA-1R0M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	145 MHz	2.4 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	1 µH	67 mOhm	1 MHz	10	3.4 A	-55 C	125 °C
Bourns Inc. SRN3010BTA-100M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	40 MHz	800 mA	Drum Core Wirewound	Ferrite	3030 Metric	1212	10 µH		1 MHz	10	1.1 A	-55 C	125 °C	504 mOhm
Bourns Inc. SRN3010BTA-1R5M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	115 MHz	1.9 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	1.5 µH	90 mOhm	1 MHz	10	2.8 A	-55 C	125 °C
Bourns Inc. SRN3010BTA-3R3M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	86 MHz	1.4 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	3.3 µH	156 mOhm	1 MHz	10	2.2 A	-55 C	125 °C
Bourns Inc. SRN3010BTA-150M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	33 MHz	0.65 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	15 µH	678 mOhm	1 MHz	10	900 mA	-55 C	125 °C
Bourns Inc. SRN3010BTA-8R2M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	45 MHz	1 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	8.2 µH		1 MHz	10	1.3 A	-55 C	125 °C	396 mOhm
Bourns Inc. SRN3010BTA-1R2M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	135 MHz	2.1 A	Drum Core Wirewound	Ferrite	3030 Metric	1212	1.2 µH		1 MHz	10	3.1 A	-55 C	125 °C	72 mOhm
Bourns Inc. SRN3010BTA-220M	Shielded	0.039 in	1 mm	3010	AEC-Q200	20 %	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	100 kHz	25 MHz	500 mA	Drum Core Wirewound	Ferrite	3030 Metric	1212	22 µH	912 mOhm	1 MHz	10	700 mA	-55 C	125 °C
