THS4032-EP Series

Enhanced-product, 100-MHz, dual-channel low-noise voltage-feedback amplifier

Catalog

Enhanced-product, 100-MHz, dual-channel low-noise voltage-feedback amplifier

Part	Slew Rate	Output Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Utilized IC / Part	Amplifier Type	-3db Bandwidth	Current - Output / Channel [custom]	Board Type	Current - Supply (Main IC)	Supplied Contents	Channels per IC	Voltage - Input Offset	Package / Case	Package / Case [custom]	Current - Supply	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Number of Circuits	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Package / Case [y]	Package / Case [x]

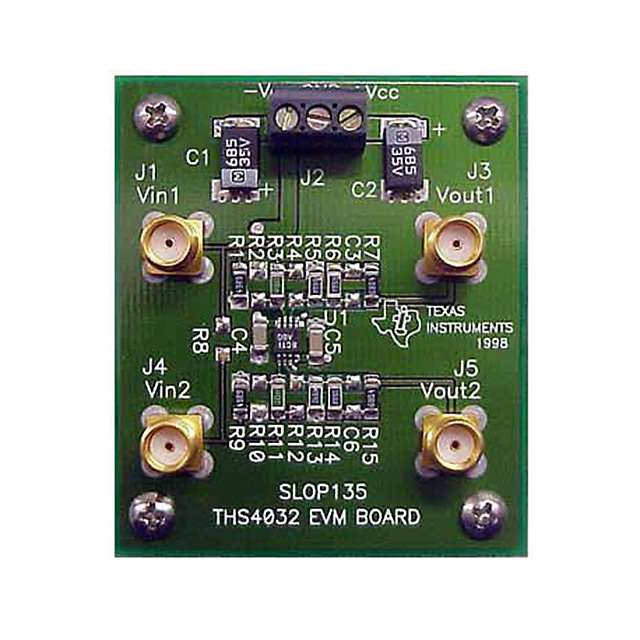

Texas Instruments THS4032EVM	100 V/µs	Single-Ended	16 V 32 V	-4.5 V 9 V	THS4032	Voltage Feedback	100 MHz	90 mA	Fully Populated	8.5 mA	Board(s)	2 - Dual
Texas Instruments THS4032CDGN	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8.5 mA	3 µA	32 V	8-HVSSOP	2	Surface Mount	70 °C	0 °C	120 MHz
Texas Instruments THS4032MDGNREP	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	7.5 mA	3 µA	32 V	8-HVSSOP	2	Surface Mount	125 °C	-55 °C	200 MHz
Texas Instruments THS4032ID	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-SOIC		8.5 mA	3 µA	32 V	8-SOIC	2	Surface Mount	85 °C	-40 °C	120 MHz	3.9 mm	0.154 in
Texas Instruments THS4032CD	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-SOIC		8.5 mA	3 µA	32 V	8-SOIC	2	Surface Mount	70 °C	0 °C	120 MHz	3.9 mm	0.154 in
Texas Instruments THS4032IDGN	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8.5 mA	3 µA	32 V	8-HVSSOP	2	Surface Mount	85 °C	-40 °C	120 MHz
Texas Instruments THS4032IDG4	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-SOIC		8.5 mA	3 µA	32 V	8-SOIC	2	Surface Mount	85 °C	-40 °C	120 MHz	3.9 mm	0.154 in
Texas Instruments THS4032CDR	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-SOIC		8.5 mA	3 µA	32 V	8-SOIC	2	Surface Mount	70 °C	0 °C	120 MHz	3.9 mm	0.154 in
Texas Instruments THS4032IDGNR	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	8.5 mA	3 µA	32 V	8-HVSSOP	2	Surface Mount	85 °C	-40 °C	120 MHz
Texas Instruments THS4032IDR	100 V/µs					Voltage Feedback	100 MHz	90 mA					500 çV	8-SOIC		8.5 mA	3 µA	32 V	8-SOIC	2	Surface Mount	85 °C	-40 °C	120 MHz	3.9 mm	0.154 in

Catalog

Enhanced-product, 100-MHz, dual-channel low-noise voltage-feedback amplifier

Key Features

• Ultralow 1.6-nV/HzVoltage NoiseHigh Speed:100-MHz Bandwidth [G = 2 (-1), –3 dB]100-V/µs Slew RateVery Low DistortionTHD = –72 dBc (f = 1 MHz, RL= 150)THD = –90 dBc (f = 1 MHz, RL= 1 k)Low 0.5-mV (Typ) Input Offset Voltage90-mA Output Current Drive (Typical)±5 V to ±15 V Typical OperationAvailable in Standard SOIC, MSOP PowerPAD™, JG, or FK PackageEvaluation Module AvailableSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (–55°C/125°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct Traceability(1)Additional temperature ranges are available - contact factoryPowerPAD is a trademark of Texas Instruments.Ultralow 1.6-nV/HzVoltage NoiseHigh Speed:100-MHz Bandwidth [G = 2 (-1), –3 dB]100-V/µs Slew RateVery Low DistortionTHD = –72 dBc (f = 1 MHz, RL= 150)THD = –90 dBc (f = 1 MHz, RL= 1 k)Low 0.5-mV (Typ) Input Offset Voltage90-mA Output Current Drive (Typical)±5 V to ±15 V Typical OperationAvailable in Standard SOIC, MSOP PowerPAD™, JG, or FK PackageEvaluation Module AvailableSUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONSControlled BaselineOne Assembly/Test SiteOne Fabrication SiteAvailable in Military (–55°C/125°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct Traceability(1)Additional temperature ranges are available - contact factoryPowerPAD is a trademark of Texas Instruments.

Description

The THS4031 and THS4032 are ultralow-voltage noise, high-speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communications and imaging. The single amplifier THS4031 and the dual amplifier THS4032 offer very good ac performance with 100-MHz bandwidth (G = 2), 100-V/µs slew rate, and 60-ns settling time (0.1%). The THS4031 and THS4032 are unity gain stable with 275-MHz bandwidth. These amplifiers have a high drive capability of 90 mA and draw only 8.5-mA supply current per channel. With –90 dBc of total harmonic distortion (THD) at f = 1 MHz and a very low noise of 1.6 nV/Hz, the THS4031 and THS4032 are ideally suited for applications requiring low distortion and low noise such as buffering analog-to-digital converters. The THS4031 and THS4032 are ultralow-voltage noise, high-speed voltage feedback amplifiers that are ideal for applications requiring low voltage noise, including communications and imaging. The single amplifier THS4031 and the dual amplifier THS4032 offer very good ac performance with 100-MHz bandwidth (G = 2), 100-V/µs slew rate, and 60-ns settling time (0.1%). The THS4031 and THS4032 are unity gain stable with 275-MHz bandwidth. These amplifiers have a high drive capability of 90 mA and draw only 8.5-mA supply current per channel. With –90 dBc of total harmonic distortion (THD) at f = 1 MHz and a very low noise of 1.6 nV/Hz, the THS4031 and THS4032 are ideally suited for applications requiring low distortion and low noise such as buffering analog-to-digital converters.
