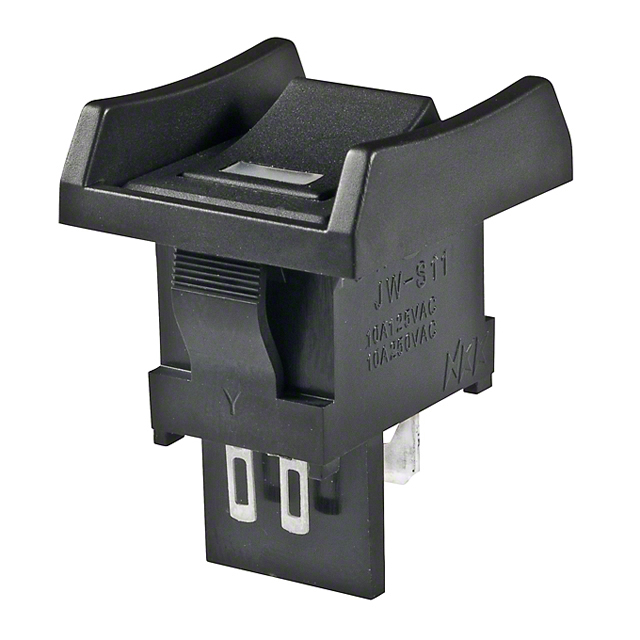

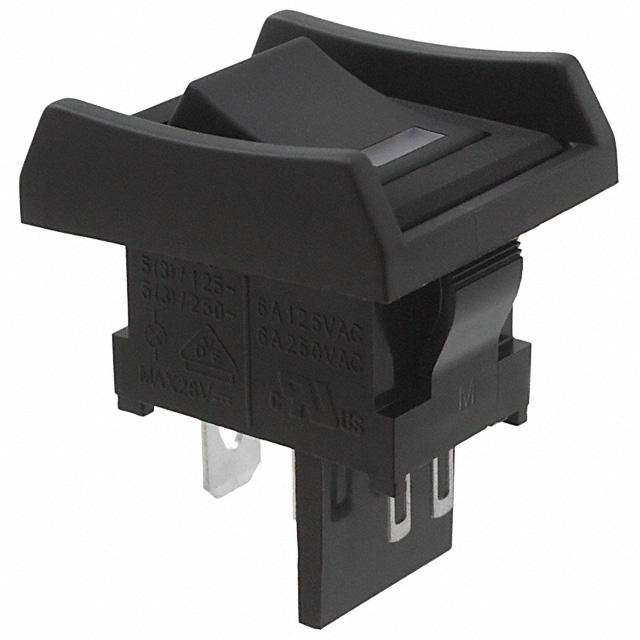

JWS11B Series
Manufacturer: NKK Switches
Beta
⌘K
INTERNATIONALLY APPROVED ROCKER
| Part | Mechanical Life | Electrical Life | Circuit | Voltage Rating - AC | Color - Actuator/Cap | Ingress Protection | Actuator Type | Switch Function | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Features | Mounting Type | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Termination Style | Termination Style | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 10000 Cycles | SPST | 125 V | Black | Dust Proof | Concave (Curved) | On-Off | CSA UL VDE | -25 °C | 70 °C | 6 A | With Barrier | Panel Mount Snap-In | No Marking | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | ||
 NKK Switches | 30000 Steps | 10000 Cycles | SPST | 125 V | Black | Dust Proof | Concave (Curved) - Illuminated | On-Off | CSA UL VDE | -25 °C | 50 °C | 6 A | With Barrier | Panel Mount Snap-In | No Marking | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | 1.8 VDC | LED Red |
 NKK Switches | 30000 Steps | 10000 Cycles | SPST | 125 V | Black | Dust Proof | Concave (Curved) - Illuminated | On-Off | CSA UL VDE | -25 °C | 50 °C | 6 A | With Barrier | Panel Mount Snap-In | No Marking | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | 2 VDC | Amber LED |
 NKK Switches | 30000 Steps | 10000 Cycles | SPST | 125 V | Black | Dust Proof | Concave (Curved) - Illuminated | On-Off | CSA UL VDE | -25 °C | 50 °C | 6 A | With Barrier | Panel Mount Snap-In | No Marking | 12.9 mm | 19.2 mm | 4.7 mm | 0.187 in | Solder Quick Connect | 2.1 VDC | Green LED |
