OAB13372 Series
Manufacturer: ORION FANS
Beta
⌘K

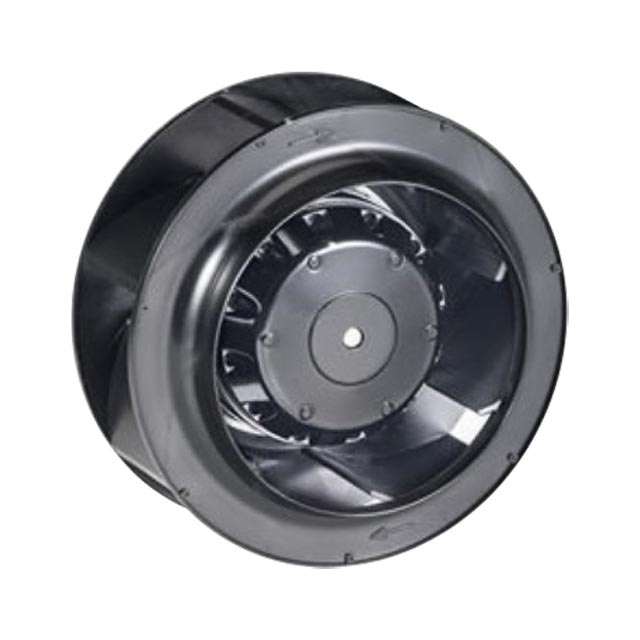

FAN IMP MTRZD 133X72MM 115VAC W/
| Part | Material - Frame | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Features | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure | Weight | Weight | Noise | Fan Type | Ingress Protection | Termination | RPM | Power (Watts) | Voltage - Rated | Width [x] | Size / Dimension [diameter] | Size / Dimension | Bearing Type | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Aluminum | Thermoplastic | 40000 Hrs | 430 mA | Thermal Overload Protector (TOP) | 60 °C | -40 °C | 60 °C | -40 C | 219.2 Pa | 0.88 in H2O | 907.2 g | 2 lbs | 60 dB(A) | Motorized Impellers | IP55 - Dust Protected Water Resistant | 2 Wire Leads | 3200 RPM | 41 W | 115 VAC | 72.5 mm | 133 mm | Round | Ball | 188 CFM | 5.26 m³/min |
ORION FANS | Aluminum | Thermoplastic | 40000 Hrs | 0.21 A | Thermal Overload Protector (TOP) | 60 °C | -40 °C | 60 °C | -40 C | 219.2 Pa | 0.88 in H2O | 907.2 g | 2 lbs | 60 dB(A) | Motorized Impellers | IP55 - Dust Protected Water Resistant | 2 Wire Leads | 3200 RPM | 39 W | 230 VAC | 72.5 mm | 133 mm | Round | Ball | 188 CFM | 5.26 m³/min |
