245 Series

Manufacturer: CNC Tech

Catalog

CONN IC DIP SOCKET 8POS TIN

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Contact Material - Mating	Features	Contact Material - Post	Contact Finish - Post	Type	Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
CNC Tech 245-08-1-03	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin	7.62 mm	0.3 in	DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	8	2	4	1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled
CNC Tech 245-32-1-06	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin			DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	32			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled	15.24 mm	0.6 in
CNC Tech 245-16-1-03	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin	7.62 mm	0.3 in	DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	16			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled			2	8
CNC Tech 245-20-1-03	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin	7.62 mm	0.3 in	DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	20			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled
CNC Tech 245-14-1-03	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin	7.62 mm	0.3 in	DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	14			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled

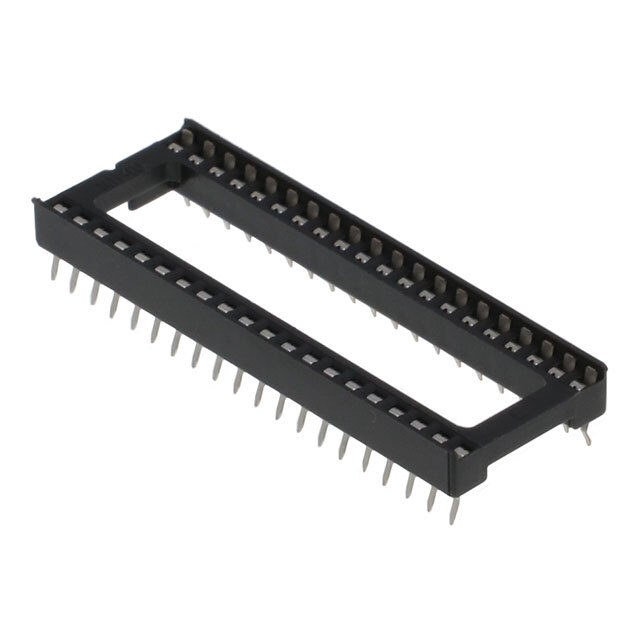

CNC Tech 245-40-1-06	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin			DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	40			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled	15.24 mm	0.6 in

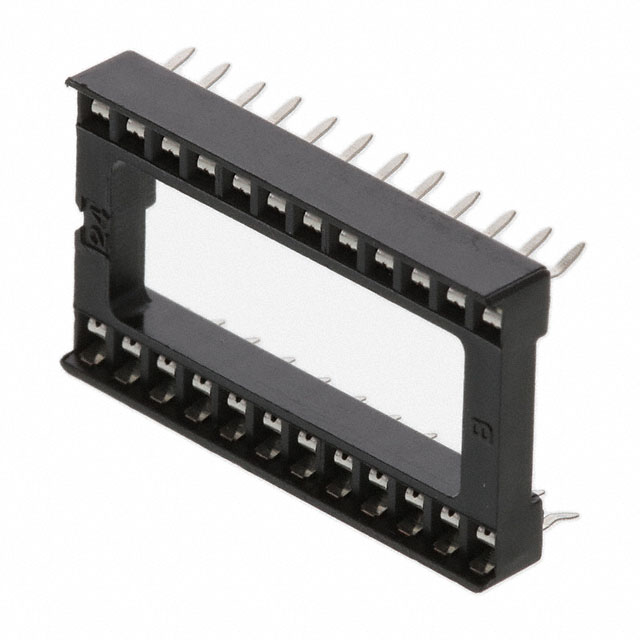

CNC Tech 245-24-1-06	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin			DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	24	12	2	1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled	15.24 mm	0.6 in
CNC Tech 245-28-1-06	3.15 mm	0.124 in	UL94 V-0	1 A	20 mOhm	Phosphor Bronze	Open Frame	Phosphor Bronze	Tin			DIP	-40 C	105 ░C	Kinked Pin Through Hole	0.1 "	2.54 mm	Solder	28			1.52 µm	60 µin	0.1 in	2.54 mm	60 µin	1.52 Ám	Polybutylene Terephthalate (PBT) Glass Filled	15.24 mm	0.6 in
