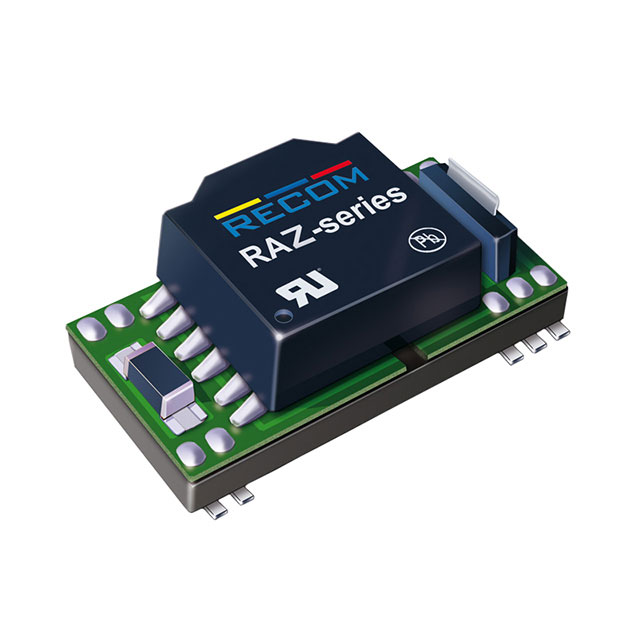

RAZ Series

Catalog

1W DC/DC-CONVERTER ECONOLINE SMD 2KV UNREG / TAPE & REEL ROHS COMPLIANT: YES

Part	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Efficiency	Type
Recom Power RAZ-2405S/H-R	SCP	200 mA	21.6 V	85 °C	-40 C	2000 V	1	5 V	26.4 V	ITE (Commercial)	69 %	Isolated Module
Recom Power RAZ-2405S	SCP	200 mA	21.6 V	85 °C	-40 C	1000 V	1	5 V	26.4 V	ITE (Commercial)	69 %	Isolated Module

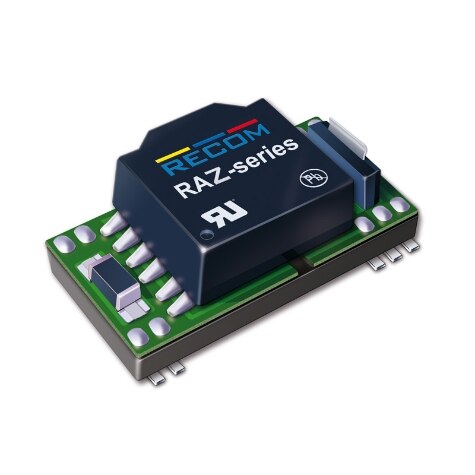

Recom Power RAZ-0505S/H	SCP	200 mA	4.5 V	85 °C	-40 C	2000 V	1	5 V	5.5 V	ITE (Commercial)	67 %	Isolated Module
Recom Power RAZ-1205S/H-R	SCP	200 mA	10.8 V	85 °C	-40 C	2000 V	1	5 V	13.2 V	ITE (Commercial)	68 %	Isolated Module
Recom Power RAZ-2405S-R	SCP	200 mA	21.6 V	85 °C	-40 C	1000 V	1	5 V	26.4 V	ITE (Commercial)	69 %	Isolated Module
Recom Power RAZ-1205S	SCP	200 mA	10.8 V	85 °C	-40 C	1000 V	1	5 V	13.2 V	ITE (Commercial)	68 %	Isolated Module
Recom Power RAZ-0505S-R	SCP	200 mA	4.5 V	85 °C	-40 C	1000 V	1	5 V	5.5 V	ITE (Commercial)	67 %	Isolated Module
Recom Power RAZ-0505S	SCP	200 mA	4.5 V	85 °C	-40 C	1000 V	1	5 V	5.5 V	ITE (Commercial)	67 %	Isolated Module
Recom Power RAZ-1205S-R	SCP	200 mA	10.8 V	85 °C	-40 C	1000 V	1	5 V	13.2 V	ITE (Commercial)	68 %	Isolated Module
Recom Power RAZ-2405S/H	SCP	200 mA	21.6 V	85 °C	-40 C	2000 V	1	5 V	26.4 V	ITE (Commercial)	69 %	Isolated Module
