TB005 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, SCREW TYPE, 7.62

Part	Mounting Type	Mating Orientation	Current	Clamp Material - Plating [custom]	Clamp Material - Plating [custom]	Wire Termination	Positions Per Level	Contact Material - Plating	Voltage	Number of Levels	Torque - Screw	Torque - Screw	Wire Gauge [Min]	Wire Gauge [Max]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Features	Screw Thread	Screw Material - Plating	Color	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TB005-762-12BE	Through Hole	Horizontal with Board	30 A	Nickel Plated	Copper Alloy	Screw - Rising Cage Clamp	12	Copper Alloy - Tin Plated	300 VDC	1	4.4 Lb-In	0.5 Nm	10 AWG	26 AWG	0.3 in	7.62 mm	-40 C	105 ░C	Interlocking (Side)	M3	Steel - Zinc Plated	Blue
Same Sky (Formerly CUI Devices) TB005-762-04BE	Through Hole	Horizontal with Board	30 A	Nickel Plated	Copper Alloy	Screw - Rising Cage Clamp	4	Copper Alloy - Tin Plated	300 VDC	1	4.4 Lb-In	0.5 Nm	10 AWG	26 AWG	0.3 in	7.62 mm	-40 C	105 ░C	Interlocking (Side)	M3	Steel - Zinc Plated	Blue

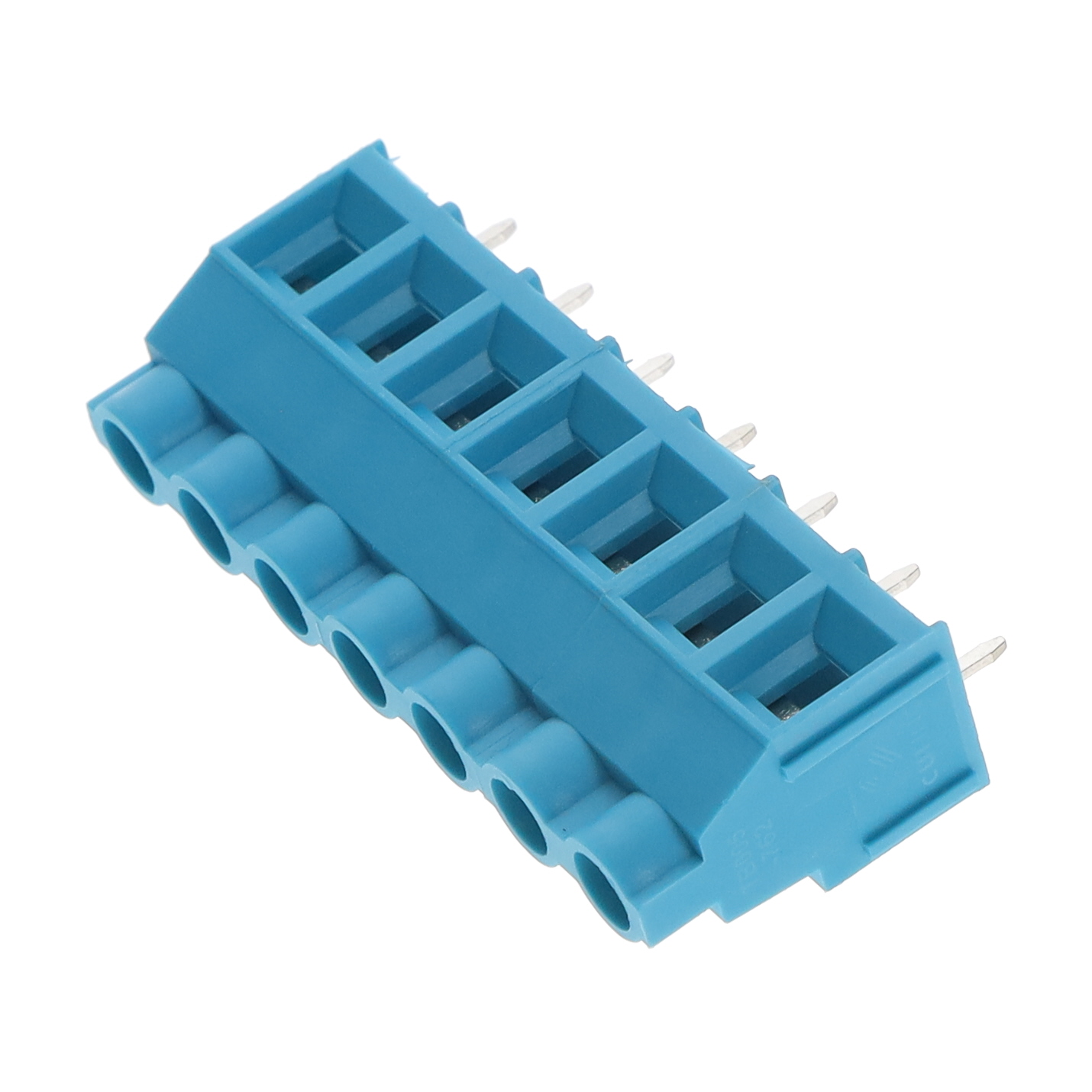

Same Sky (Formerly CUI Devices) TB005-762-07BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp			300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue	7
Same Sky (Formerly CUI Devices) TB005-762-09BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp	9		300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue
Same Sky (Formerly CUI Devices) TB005-762-13BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp	13		300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue
Same Sky (Formerly CUI Devices) TB005-762-11BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp	11		300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue
Same Sky (Formerly CUI Devices) TB005-762-16BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp	16		300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue
Same Sky (Formerly CUI Devices) TB005-762-06BE	Through Hole	Horizontal with Board	30 A			Screw - Rising Cage Clamp	6		300 VDC	1			10 AWG	26 AWG	0.3 in	7.62 mm			Interlocking (Side)			Blue
Same Sky (Formerly CUI Devices) TB005-762-22BE	Through Hole	Horizontal with Board	30 A	Nickel Plated	Copper Alloy	Screw - Rising Cage Clamp	22	Copper Alloy - Tin Plated	300 VDC	1	4.4 Lb-In	0.5 Nm	10 AWG	26 AWG	0.3 in	7.62 mm	-40 C	105 ░C	Interlocking (Side)	M3	Steel - Zinc Plated	Blue
Same Sky (Formerly CUI Devices) TB005-762-19BE	Through Hole	Horizontal with Board	30 A	Nickel Plated	Copper Alloy	Screw - Rising Cage Clamp	19	Copper Alloy - Tin Plated	300 VDC	1	4.4 Lb-In	0.5 Nm	10 AWG	26 AWG	0.3 in	7.62 mm	-40 C	105 ░C	Interlocking (Side)	M3	Steel - Zinc Plated	Blue
