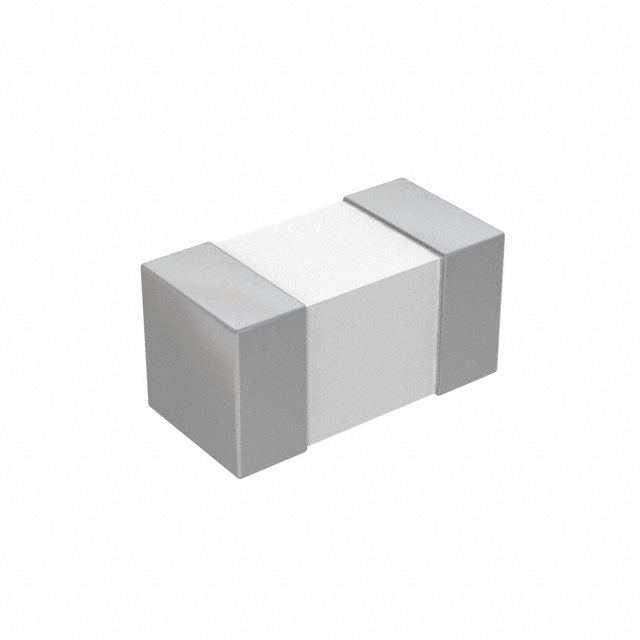

AIMC-0402 Series

Catalog

RF INDUCTORS - SMD IND 6.80 NH 0.180 A 1950.00 MOHM

Part	Tolerance	Type	Frequency - Self Resonant	Package / Case	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	Inductance	Shielding	Q @ Freq	Ratings
Abracon LLC AIMC-0402-68NJ-T	5 %	Multilayer	750 MHz	0402 (1005 Metric)	Ceramic	-55 C	125 °C	100 MHz	1.95 Ohm	0402 (1005 Metric)	0.026 in	0.65 mm	0.18 A	0.02 in	0.5 mm	0.039 "	1 mm	Surface Mount	8	100 MHz	68 nH	Unshielded
Abracon LLC AIMC-0402-3N9C-T	0.2 nH	Multilayer	4.5 GHz	0402 (1005 Metric)	Ceramic	-55 C	125 °C	100 MHz	210 mOhm	0402	0.026 in	0.65 mm	400 mA	0.02 in	0.5 mm	0.039 "	1 mm	Surface Mount			3.9 nH	Unshielded	9 100 MHz	AEC-Q200
Abracon LLC AIMC-0402-5N6S-T	0.3 nH	Multilayer	4 GHz	0402 (1005 Metric)	Ceramic	-55 C	125 °C	100 MHz	300 mOhm	0402 (1005 Metric)	0.026 in	0.65 mm	0.3 A	0.02 in	0.5 mm	0.039 "	1 mm	Surface Mount	8	100 MHz	5.6 nH	Unshielded
