XS3M Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

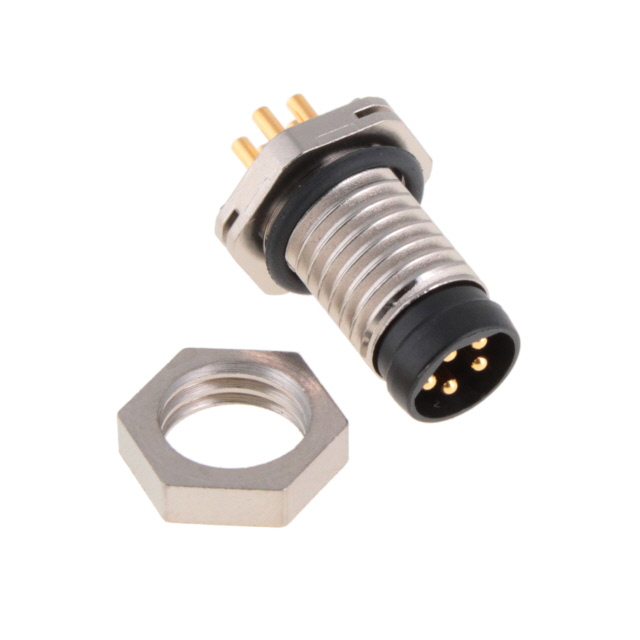

CONN PLUG MALE 5POS GOLD SOLDER
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Primary Material | Shell Material | Connector Type | Mounting Type | Contact Finish - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shell Size - Insert | Termination | Fastening Type | Number of Positions | Color | Shielding | Ingress Protection | Mounting Feature | Shell Finish | Material Flammability Rating | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 16 Áin | 0.41 Ám | Brass | Polybutylene Terephthalate (PBT) | Metal | Zinc Alloy | Plug Male Pins | Panel Mount Through Hole | Gold | 30 VDC | 85 °C | -25 °C | 3 A | M8-5 | Solder | Threaded | 5 | Silver | Unshielded | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Nickel | UL94 V-0 | Keyed |
