EGG.0B Series
Manufacturer: LEMO
CONN INSERT FMALE 5POS
| Part | Ingress Protection Description | Ingress Protection IP Rating | Operating Temperature (Max) | Operating Temperature (Min) | Shielding | Contact Shape | Shell Size - Insert | Shell Size - Insert | Number of Positions | Type | Connector Type | Contact Size | Orientation | Contact Type | Note | Contact Finish | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Contact Material | Contact Finish Thickness | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Contact Termination | Primary Material | Fastening Type | Shell Finish | Material Flammability Rating | Insert Material | Current Rating | Termination | Contact Finish - Mating | Shell Material | Mounting Type | Mounting Feature | Color | Contact Finish Thickness - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Unshielded | Circular | 405 | 405 | 5 | For Female Sockets | Insert | 0.7 mm | G | Crimp Solder Cup | Contacts Not Included Insert Only Requires Shell | ||||||||||||||||||||||

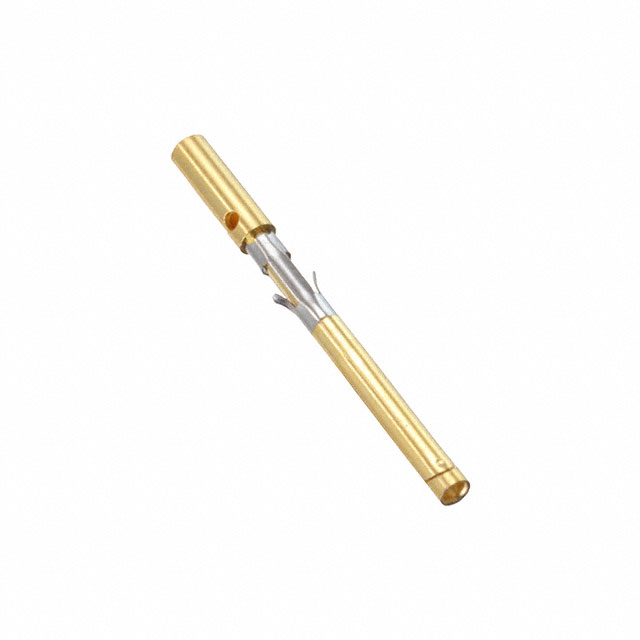

LEMO | Machined Signal | 0.7 mm | Socket | Gold | 0.34 mm² | 0.14 mm² | Bronze | 59 µin | 25.5 AWG | 22 AWG | Crimp | ||||||||||||||||||||||||||

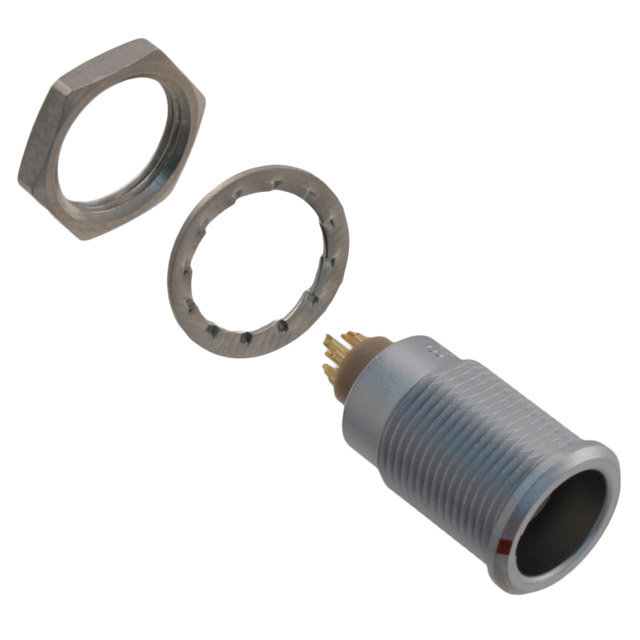

LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Shielded | 307 | 307 | 7 | Female Sockets Receptacle | G | Bronze | Metal | Push-Pull | Chrome | UL94 V-0 | PEEK Polyetheretherketone | 2.5 A | Solder Cup | Gold | Brass | Panel Mount | Bulkhead Rear Side Nut | Silver | 59 µin | |||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Shielded | 307 | 307 | 7 | Female Sockets Insert | G | Bronze | UL94 V-0 | PEEK Polyetheretherketone | 2.5 A | Solder Cup | Gold | 59 µin | Insert Only Requires Shell | |||||||||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Shielded | 303 | 303 | 3 | Female Sockets Receptacle | G | Bronze | Metal | Push-Pull | Chrome | UL94 V-0 | PEEK Polyetheretherketone | 8 A | Solder | Gold | Brass | Panel Mount Through Hole | Bulkhead Rear Side Nut | Silver | 59 µin | |||||||||||||

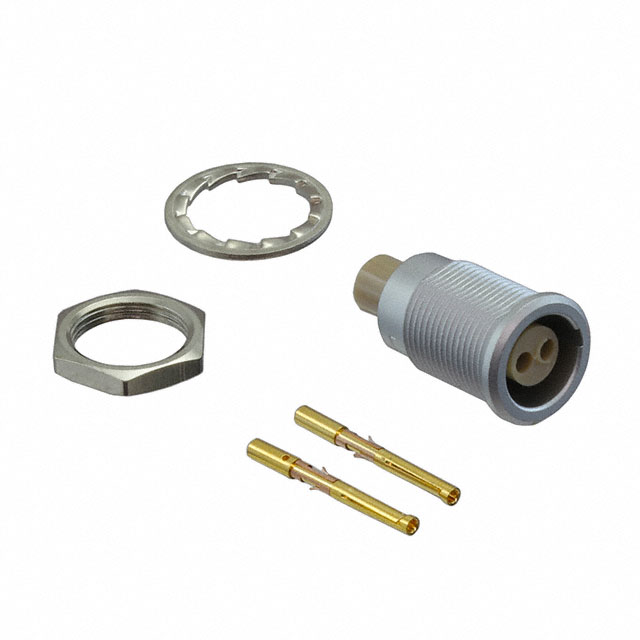

LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Shielded | 302 | 302 | 2 | Female Sockets Receptacle | G | Bronze | Metal | Push-Pull | Chrome | UL94 V-0 | PEEK Polyetheretherketone | 10 A | Crimp | Gold | Brass | Panel Mount | Bulkhead Rear Side Nut | Silver | 59 µin | |||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Shielded | 306 | 306 | 6 | Female Sockets Insert | G | Bronze | UL94 V-0 | PEEK Polyetheretherketone | 2.5 A | Solder | Gold | 59 µin | Insert Only Requires Shell | |||||||||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Unshielded | Circular | 403 | 403 | 3 | For Female Sockets | Insert | 0.9 mm | G | Crimp Solder Cup | Contacts Not Included Insert Only Requires Shell | ||||||||||||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Unshielded | Circular | 402 | 2 | For Female Sockets | Insert | 0.9 mm | G | Crimp Solder Cup | Contacts Not Included Insert Only Requires Shell | |||||||||||||||||||||||
LEMO | Dust Protected | IP50 | 250 °C | -55 °C | Unshielded | Circular | 404 | 4 | For Female Sockets | Insert | 0.7 mm | G | Crimp Solder Cup | Contacts Not Included Insert Only Requires Shell |
