1625931 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

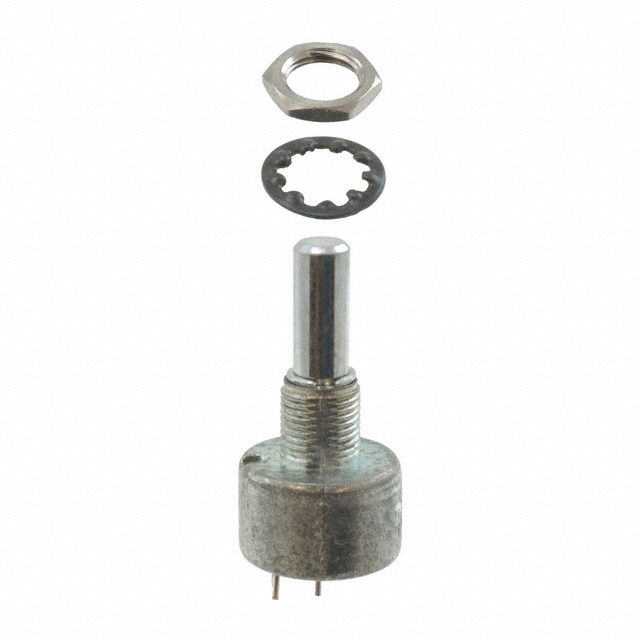

POT 100K OHM 2W CERMET LINEAR
| Part | Actuator Type | Built in Switch | Mounting Type | Termination Style | Tolerance | Size - Body [diameter] | Size - Body [diameter] | Actuator Length [x] | Actuator Length [x] | Number of Turns | Bushing Thread | Resistance (Ohms) | Resistive Material | Adjustment Type | Power (Watts) | Number of Gangs | Temperature Coefficient | Taper | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Rotation [custom] | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Round | None | Panel Mount | PC Pins | 10 % | 19.05 mm | 0.75 " | 25.4 mm | 1 in | 1 | 3/8-32 | 100k | Cermet | Top Adjustment | 2 W | 1 | 0.75 % | Linear | 6.32 mm | 0.249 in | 270 ° | ||
TE Connectivity AMP Connectors | Round | None | Panel Mount | PC Pins | 10 % | 19.05 mm | 0.75 " | 25.4 mm | 1 in | 1 | 3/8-32 | 10k | Cermet | Top Adjustment | 2 W | 1 | 0.75 % | Linear | 6.32 mm | 0.249 in | 270 ° | ||
TE Connectivity AMP Connectors | Round | None | Panel Mount | PC Pins | 10 % | 19.05 mm | 0.75 " | 25.4 mm | 1 in | 1 | 3/8-32 | Cermet | Top Adjustment | 2 W | 1 | 0.75 % | Linear | 6.32 mm | 0.249 in | 270 ° | 100 Ohms | ||
TE Connectivity AMP Connectors | Round | None | Panel Mount | PC Pins | 10 % | 19.05 mm | 0.75 " | 25.4 mm | 1 in | 1 | 3/8-32 | Cermet | Top Adjustment | 2 W | 1 | 0.75 % | Linear | 6.32 mm | 0.249 in | 270 ° | 2.2 kOhms |
