MLP Series

Catalog

POWER INDUCTORS - SMD 2.5 UH 20% 1.2A

Part	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Type	DC Resistance (DCR) [Max]	Supplier Device Package	Supplier Device Package	Tolerance	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current Rating (Amps)	Shielding	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

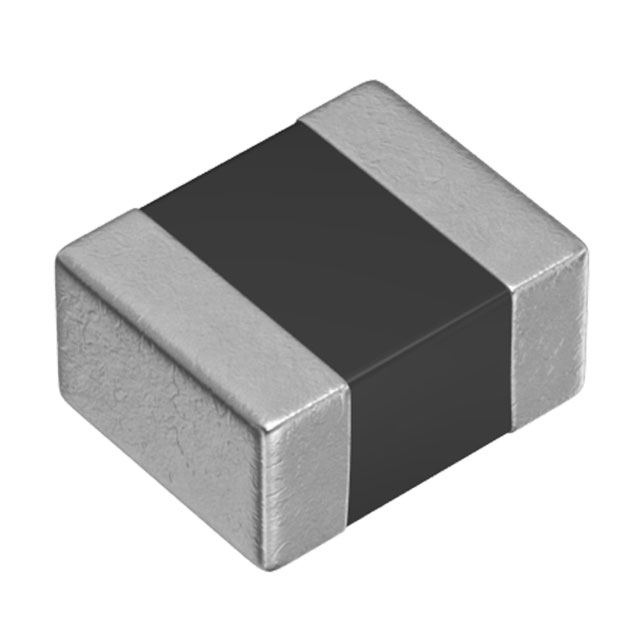

TDK Corporation MLP2520S2R2ST0S1	2.5 µH	125 °C	-40 C	Ferrite	Multilayer	143 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	1.2 A	Shielded	2520 Metric	1008	1.2 mm	0.047 "
TDK Corporation MLP2520S3R3ST0S1	3.3 µH	125 °C	-40 C	Ferrite	Multilayer	143 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	1 A	Shielded	2520 Metric	1008	1.2 mm	0.047 "
TDK Corporation MLP2520S100MT0S1	10 µH	125 °C	-40 C	Ferrite	Multilayer	364 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	700 mA	Shielded	2520 Metric	1008			0.039 in	1 mm
TDK Corporation MLP2520W4R7MT0S1	4.7 ÁH	125 °C	-40 C	Ferrite	Multilayer	195 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	1.2 A	Shielded	2520 Metric	1008			0.039 in	1 mm
TDK Corporation MLP2520V4R7MT0S1	4.7 ÁH	125 °C	-40 C	Ferrite	Multilayer	312 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	800 mA	Shielded	2520 Metric	1008			0.039 in	1 mm

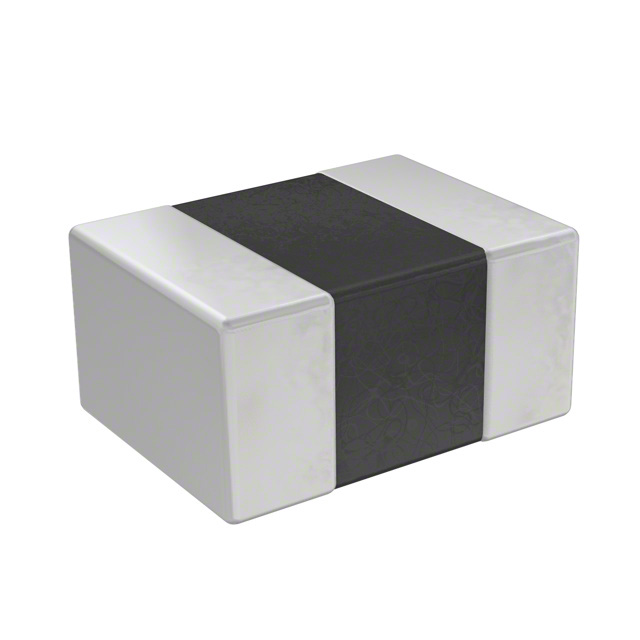

TDK Corporation MLP1005M1R0DT0S1	1 µH	125 °C	-40 C	Ferrite	Multilayer	689 mOhm		0402 (1005 Metric)	20 %	10 MHz	1 mm	0.02 in	0.039 "	0.5 mm	Surface Mount	0.5 A	Shielded		0402 (1005 Metric)	0.75 mm	0.03 "

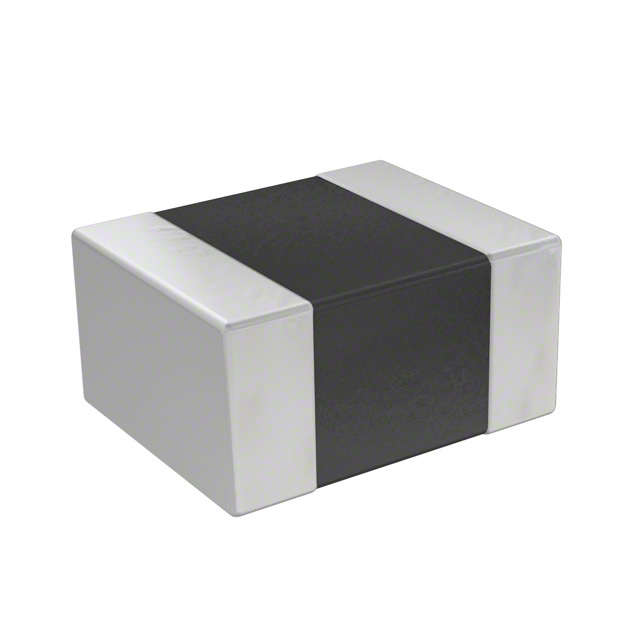

TDK Corporation MLP2016SR47MT0S1	470 nH	125 °C	-40 C	Ferrite	Multilayer	65 mOhm		0806 (2016 Metric)	20 %	2 MHz	2 mm	0.063 "	0.079 in	1.6 mm	Surface Mount	1.6 A	Shielded		0806 (2016 Metric)			0.039 in	1 mm
TDK Corporation MLP2520WR47MT0S1	470 nH	125 °C	-40 C	Ferrite	Multilayer	43 mOhm	2520 Metric	1008	20 %	2 MHz	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	2.9 A	Shielded	2520 Metric	1008			0.039 in	1 mm
TDK Corporation MLP2012V1R5MT0S1	1.5 µH	125 °C	-40 C	Ferrite	Multilayer	300 mOhm		0805 (2012 Metric)	20 %	2 MHz	2 mm	0.049 "	0.079 in	1.25 mm	Surface Mount	800 mA	Shielded		0805			0.039 in	1 mm
