ECQ-E2685 Series

Catalog

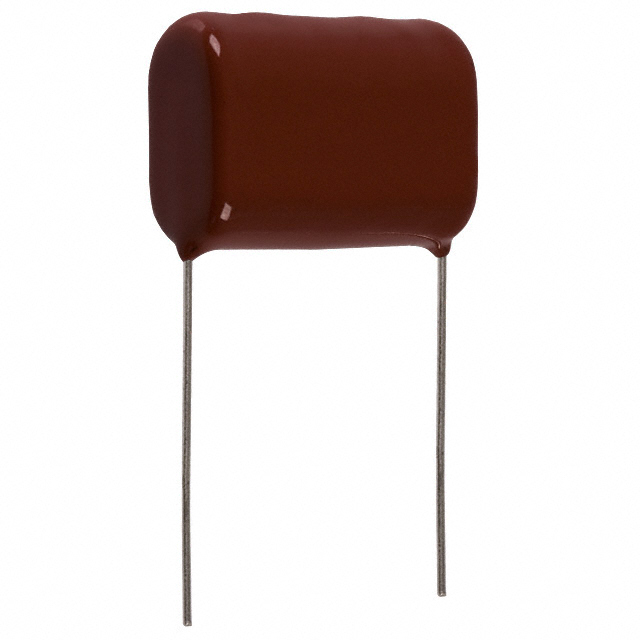

CAP FILM 6.8UF 5% 250VDC RADIAL

Part	Termination	Package / Case	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max)	Applications	Voltage Rating - DC	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2685JF	PC Pins	Radial	5 %	Through Hole	1.22 in	13 mm	31 mm	0.512 "	27.5 mm	1.083 in	Polyester Metallized	-40 C	105 ░C	23.9 mm	0.941 in	General Purpose	250 V	6.8 µF
Panasonic Electronic Components ECQ-E2685KFW	PC Pins	Radial	10 %	Through Hole	1.22 in	13 mm	31 mm	0.512 "	22.5 mm	0.886 in	Polyester Metallized	-40 C	105 ░C			General Purpose	250 V	6.8 µF	1.079 in	27.4 mm
Panasonic Electronic Components ECQ-E2685JFW	PC Pins	Radial	5 %	Through Hole	1.22 in	13 mm	31 mm	0.512 "	22.5 mm	0.886 in	Polyester Metallized	-40 C	105 ░C			General Purpose	250 V	6.8 µF	1.079 in	27.4 mm
