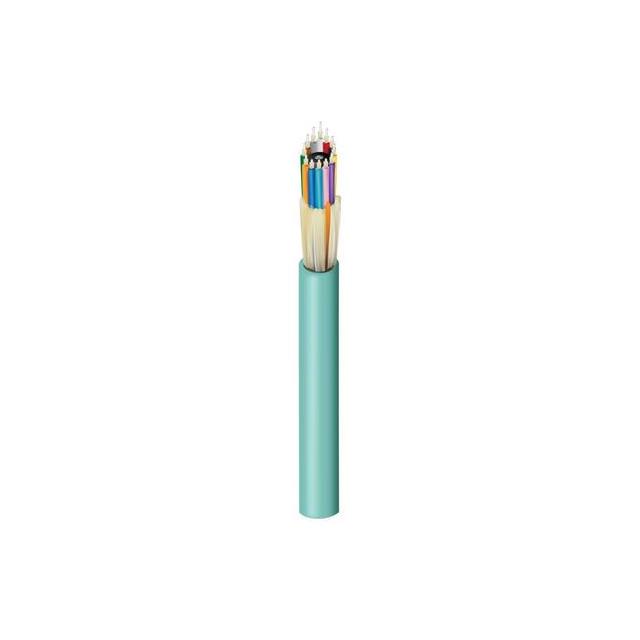

FI3B012 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Tensile Strength | Style | Core Diameter [diameter] | Type | Cladding Diameter [diameter] | Jacket (Insulation) Material | Ratings | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | 0 °C | 12 Fibers Rip Cord | 10.57 mm | 0.416 " | 40.8 kg | Multiple Fibers | 50 µm | Multimode | 125 µm | Poly-Vinyl Chloride (PVC) | OFNP | Aqua |
Belden Inc. | 70 °C | -40 C | 12 Fibers Rip Cord | 13.06 mm | 0.514 in | 40.8 kg | Multiple Fibers | 50 µm | Multimode | 125 µm | Poly-Vinyl Chloride (PVC) | OFNR | Aqua |
