1005-7541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

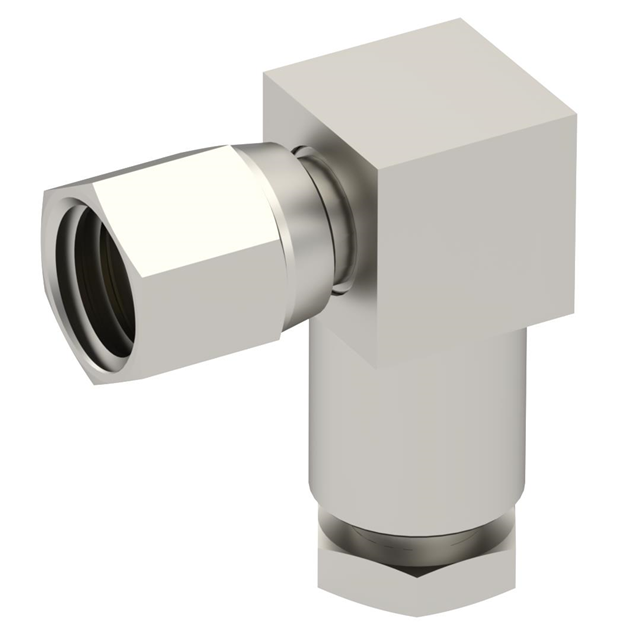

SMC F RA NA SDCL .085
| Part | Dielectric Material | Insertion Loss | Includes | Body Material | Center Contact Plating | Mating Cycles | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Fastening Type | Shield Termination | Connector Type | Contact Termination | Connector Style | Number of Ports | Impedance | Housing Color | Cable Group | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 0.5 dB | 1 Connector 1 Ferrule | Brass | Gold | 500 | Nickel | 105 ░C | -65 ░C | Beryllium Copper | Threaded | Clamp | Female Socket Plug | Solder | SMC | 1 | 50 Ohms | Silver | RG-405 (.085" Semi Rigid) | Free Hanging (In-Line) Right Angle | 10 GHz |
