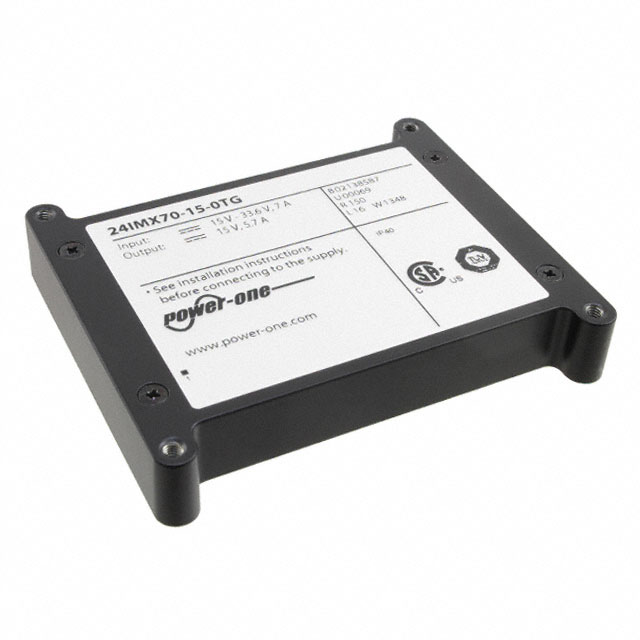

24IMX70 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 15V 90W
| Part | Applications | Voltage - Input (Min) [Min] | Type | Mounting Type | Voltage - Output 1 | Power (Watts) | Voltage - Isolation | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] | Efficiency | Voltage - Input (Max) [Max] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | ITE (Commercial) | 15 V | Isolated Module Conformal Coated | Through Hole | 15 V | 90 W | 1.5 kV | 19-DIP Module 17 Leads | -40 C | 95 °C | 1 | OCP OTP SCP | 76.2 mm | 0.49 " | 12.5 mm | 63.5 mm | 2.5 " | 3 " | 6 A | 90 % | 33.6 V | |
 Bel Fuse Inc. | ITE (Commercial) | 15 V | Isolated Module Conformal Coated | Through Hole | 12 V | 84 W | 2.1 kV | 19-DIP Module 17 Leads | -40 C | 95 °C | 1 | OCP OTP SCP | 76.2 mm | 0.49 " | 12.5 mm | 63.5 mm | 2.5 " | 3 " | 7 A | 90 % | 33.6 V | |
 Bel Fuse Inc. | ITE (Commercial) | 15 V | Isolated Module Conformal Coated | Through Hole | 15 V | 86 W | 2.1 kV | 19-DIP Module 17 Leads | -40 C | 95 °C | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 76.2 mm | 0.49 " | 12.5 mm | 63.5 mm | 2.5 " | 3 " | 5.7 A | 92 % | 33.6 V | Active High Enable |
Bel Fuse Inc. | ITE (Commercial) | 15 V | Isolated Module Conformal Coated | Through Hole | 12 V | 84 W | 2.1 kV | 19-DIP Module 17 Leads | -40 C | 95 °C | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 7 A | 93 % | 33.6 V | Active High Enable |
