G880201 Series

Catalog

CONN HEADER SMD 20POS 1.25MM

Part	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Style	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Connector Type	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Insulation Material	Material Flammability Rating	Voltage Rating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Features

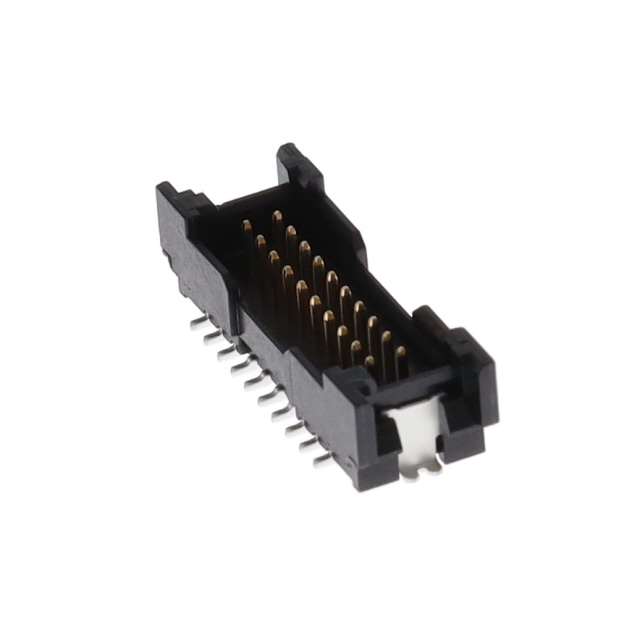

Amphenol ICC (Commercial Products) G88020153T4HR	Solder	All	0.049 in	1.25 mm	Board to Cable/Wire	20	Copper Alloy	0.38 µm	15 µin	2	Male Pin	Gold	1.25 mm	0.049 in	Shrouded - 4 Wall	Header	4.8 mm	0.189 in	Square	Surface Mount	Nylon 9T Polyamide (PA9T)	UL94 V-0	100 VAC	Black	85 °C	-25 °C	Board Guide Pick and Place Solder Retention
