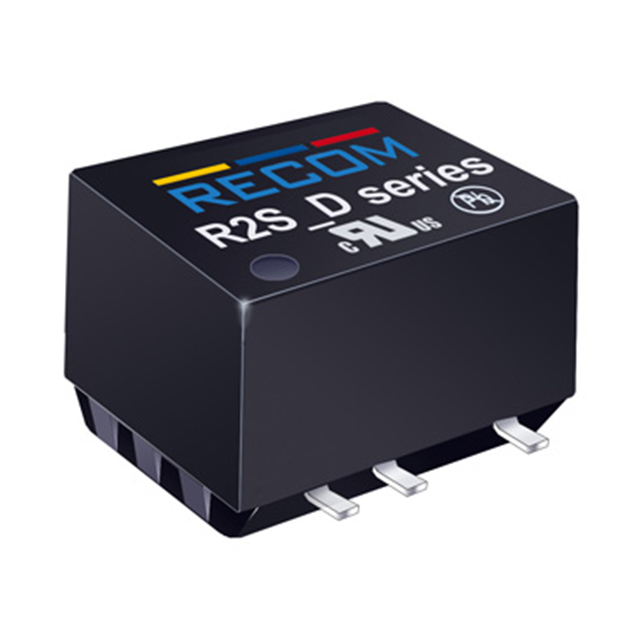

R2D Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 2W DC/DC 3KV UNREG 15VIN +/-9VOUT

...

Part	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Package / Case	Applications	Efficiency	Voltage - Isolation	Number of Outputs	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Output 2	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max)	Efficiency [Min]	Efficiency [Max]	Current - Output (Max)

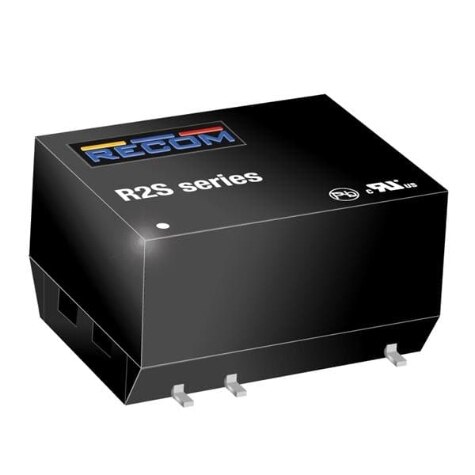

Recom Power R2D-1509/HP	16.5 V	Surface Mount	111 mA	10-SMD Module 6 Leads	ITE (Commercial) Medical	80 %	3000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	9 V	-9 V	2 W	13.5 V
Recom Power R2D12-1212/H	13.2 V	Surface Mount	83 mA	12-SMD Module 10 Leads	ITE (Commercial) Medical	83 %	3000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	12 V	-12 V	2 W	10.8 V	83 mA
Recom Power R2D-1212/P-R	13.2 V	Surface Mount	83 mA	10-SMD Module 6 Leads	ITE (Commercial)	83 %	1000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	12 V	-12 V	2 W	10.8 V	83 mA
Recom Power R2D12-2409	26.4 V	Surface Mount	111 mA	12-SMD Module 10 Leads	ITE (Commercial)	80 %	1000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	9 V	-9 V	2 W	21.6 V
Recom Power R2D12-0524/H-R	5.5 V	Surface Mount	42 mA	12-SMD Module 10 Leads	ITE (Commercial) Medical	85 %	3000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	24 V	-24 V	2 W	4.5 V
Recom Power R2D12-2412/H-R	26.4 V	Surface Mount	83 mA	12-SMD Module 10 Leads	ITE (Commercial) Medical	83 %	3000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	12 V	-12 V	2 W	21.6 V	83 mA
Recom Power R2D12-2415/HP	26.4 V	Surface Mount	66 mA	12-SMD Module 10 Leads	ITE (Commercial) Medical	85 %	3000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	15 V	-15 V	2 W	21.6 V
Recom Power R2D12-0512/P-R	5.5 V	Surface Mount	83 mA	12-SMD Module 10 Leads	ITE (Commercial)	83 %	1000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	12 V	-12 V	2 W	4.5 V	83 mA
Recom Power R2D10-1512-R	16.5 V	Surface Mount	83 mA	10-SMD Module	ITE (Commercial)		1000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	12 V	-12 V	2 W	13.5 V	83 mA	70 %	80 %
Recom Power R2D10-2405/P	26.4 V	Surface Mount		10-SMD Module	ITE (Commercial)	80 %	1000 V	2	SCP	15.2 mm	0.35 in	10.7 mm	0.6 "	0.42 "	9 mm	Isolated Module	-40 C	100 °C	5 V	-5 V	2 W	21.6 V	100 mA			100 mA
