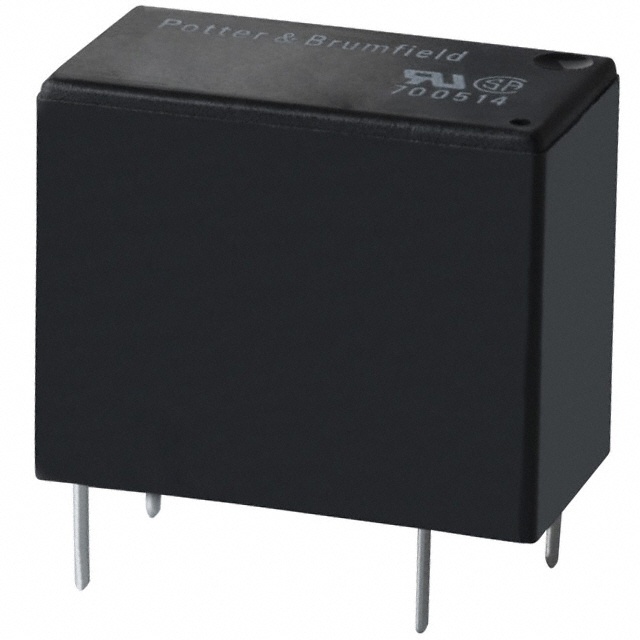

T77V1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURP
| Part | Coil Resistance | Coil Type | Relay Type | Load - Max Switching | Must Operate Voltage | Mounting Type | Contact Rating (Current) | Seal Rating | Operate Time | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Release Time | Coil Current | Coil Insulation | Approval Agency | Coil Voltage | Termination Style | Switching Voltage [Max] | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 180 Ohms | Non Latching | General Purpose | 300 W 2500 VA | 6.75 VDC | Through Hole | 10 A | Sealed - Fully | 10 ms | Silver Cadmium Oxide (AgCdO) | 85 °C | -30 ░C | SPST-NO (1 Form A) | 4 ms | 50 mA | Class F | cURus VDE | 9 VDC | PC Pin | 30 VDC 277 VAC | 0.45 VDC |
 TE Connectivity AMP Connectors | 125 Ohms | Non Latching | General Purpose | 90 W 750 VA | 3.75 VDC | Through Hole | 3 A | Sealed - Flux Protection | 10 ms | Silver (Ag) | 105 ░C | -30 ░C | SPST-NO (1 Form A) | 4 ms | 40 mA | Class F | cURus VDE | 5 VDC | PC Pin | 30 VDC 250 VAC | 0.25 VDC |
