TR9CG2400 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

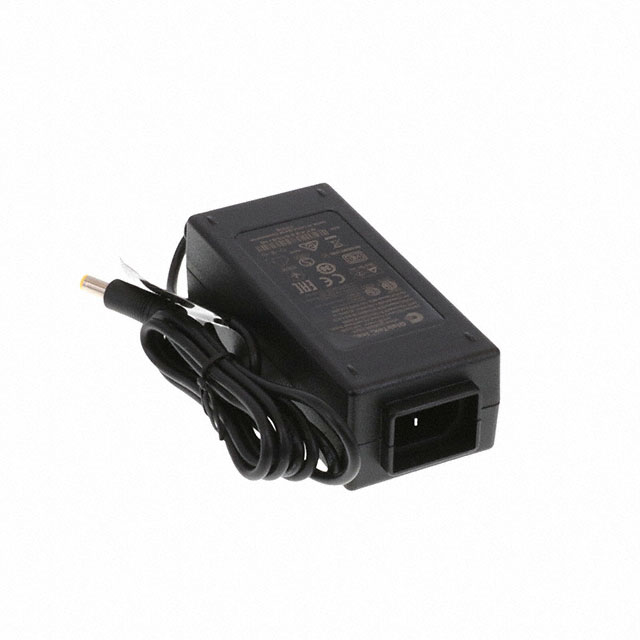

AC/DC DESKTOP ADAPTER 15V 36W
| Part | Standard Number | Voltage - Output | Output Connector [x] | Output Connector [diameter] | Output Connector | Efficiency | No Load Power Consumption | Operating Temperature [Max] | Operating Temperature [Min] | Region Utilized | Power (Watts) | Current - Output (Max) [Max] | Approval Agency | Input Type | Polarization | Input Connector | Form | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 15 V | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | CoC Tier 2 Level VI | 75 mW | 40 °C | -10 °C | International | 36 W | 2.4 A | CB CCC CE EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI | Cord (Sold Separately) | Positive Center | IEC 320-C14 | Desktop (Class I) | 1.4 " | 1.97 in | 35.5 mm | 107.2 mm | 4.22 in | 50 mm | 264 VAC | 90 VAC | Household Appliances ITE (Commercial) Medical | 1.5 m | 59 in |
