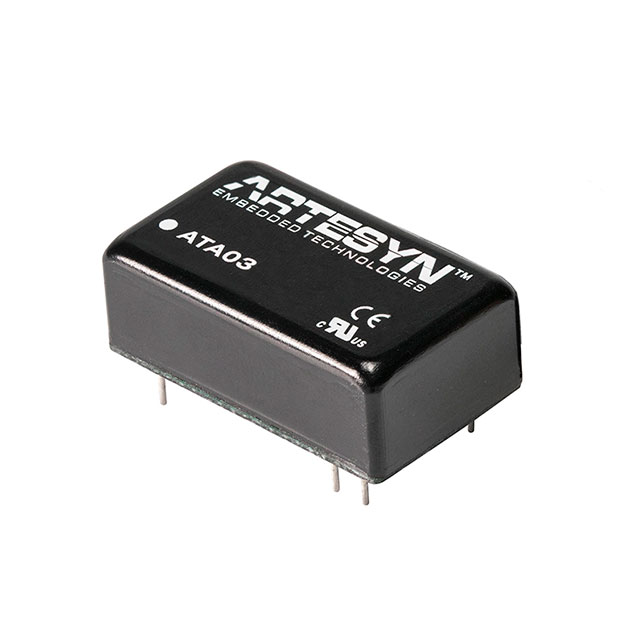

ATA03C Series

Catalog

DC DC CONVERTER 15V 10W

Part	Approval Agency	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Efficiency	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Applications	Current - Output (Max) [Max]	Power (Watts)
ARTESYN / Advanced Energy ATA03C18-L	CE cURus	9 V	Through Hole	1.5 kV	88 %	16-DIP Module 6 Leads	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	1	15 V	36 V	OCP SCP	80 °C	-40 C	Isolated Module	ITE (Commercial)	666 mA	10 W
ARTESYN / Advanced Energy ATA03C36-L	CE cURus	18 V	Through Hole	1.5 kV	88 %	16-DIP Module 6 Leads	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	1	15 V	75 V	OCP SCP	80 °C	-40 C	Isolated Module	ITE (Commercial)	666 mA	10 W
