325-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 58POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Color	Gender	Pitch	Pitch	Read Out	Card Type	Number of Positions	Number of Rows [custom]	Mounting Type	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions/Bay/Row	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

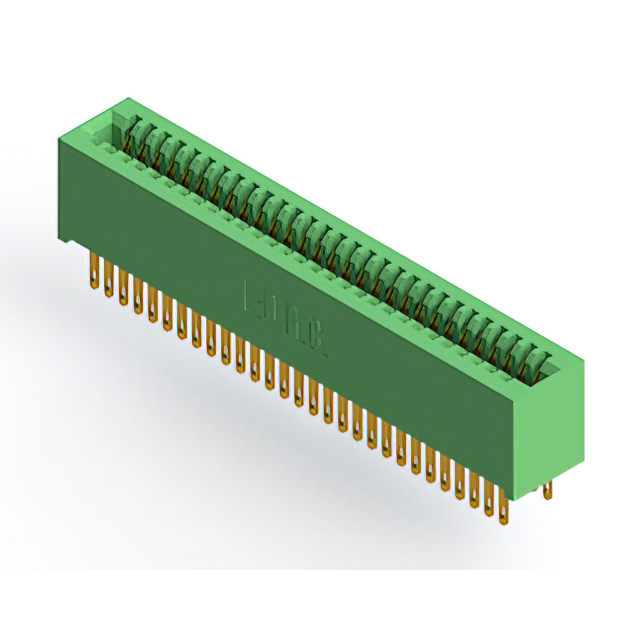

EDAC Inc. 325-058-500-201	Diallyl Phthalate (DAP)	2	Gold	Green	Female	0.1 "	2.54 mm	Dual	Non Specified - Dual Edge	58	2	Through Hole	Solder Eyelet(s)	Copper Alloy	-65 ░C	125 °C	Cantilever	29	3.18 mm	0.125 in	0.25 Ám	10 Áin
EDAC Inc. 325-058-540-208	Diallyl Phthalate (DAP)	2	Gold	Green	Female	0.1 "	2.54 mm	Dual	Non Specified - Dual Edge	58	2	Through Hole	Wire Wrap	Copper Alloy	-65 ░C	125 °C	Cantilever	29	3.18 mm	0.125 in	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-058-520-207	Diallyl Phthalate (DAP)	2	Gold	Green	Female	0.1 "	2.54 mm	Dual	Non Specified - Dual Edge	58	2	Through Hole	Solder	Copper Alloy	-65 ░C	125 °C	Cantilever	29	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-058-540-108	Diallyl Phthalate (DAP)		Gold	Green	Female	0.1 "	2.54 mm	Single	Non Specified - Single Edge	58		Through Hole	Wire Wrap	Copper Alloy	-65 ░C	125 °C	Cantilever	58	3.18 mm	0.125 in	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	1	1

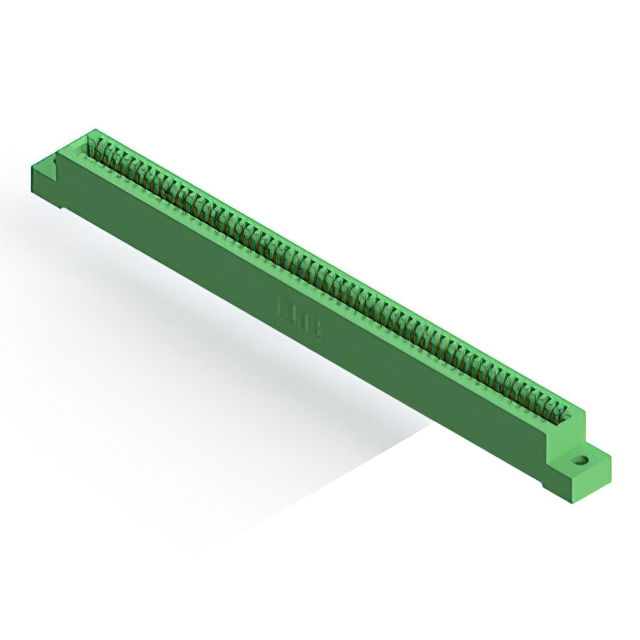

EDAC Inc. 325-058-500-109	Diallyl Phthalate (DAP)		Gold	Green	Female	0.1 "	2.54 mm	Single	Non Specified - Single Edge	58		Through Hole	Solder Eyelet(s)	Copper Alloy	-65 ░C	125 °C	Cantilever	58	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	1	1	0.16 "	4.06 mm

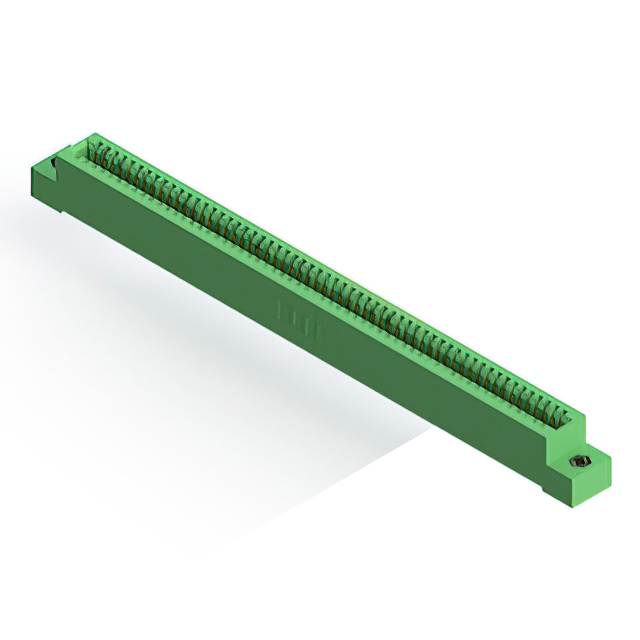

EDAC Inc. 325-058-520-108	Diallyl Phthalate (DAP)		Gold	Green	Female	0.1 "	2.54 mm	Single	Non Specified - Single Edge	58		Through Hole	Solder	Copper Alloy	-65 ░C	125 °C	Cantilever	58	3.18 mm	0.125 in	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	1	1
EDAC Inc. 325-058-540-107	Diallyl Phthalate (DAP)		Gold	Green	Female	0.1 "	2.54 mm	Single	Non Specified - Single Edge	58		Through Hole	Wire Wrap	Copper Alloy	-65 ░C	125 °C	Cantilever	58	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	1	1
EDAC Inc. 325-058-500-209	Diallyl Phthalate (DAP)	2	Gold	Green	Female	0.1 "	2.54 mm	Dual	Non Specified - Dual Edge	58	2	Through Hole	Solder Eyelet(s)	Copper Alloy	-65 ░C	125 °C	Cantilever	29	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded			0.16 "	4.06 mm
EDAC Inc. 325-058-540-109	Diallyl Phthalate (DAP)		Gold	Green	Female	0.1 "	2.54 mm	Single	Non Specified - Single Edge	58		Through Hole	Wire Wrap	Copper Alloy	-65 ░C	125 °C	Cantilever	58	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	1	1	0.16 "	4.06 mm
EDAC Inc. 325-058-540-209	Diallyl Phthalate (DAP)	2	Gold	Green	Female	0.1 "	2.54 mm	Dual	Non Specified - Dual Edge	58	2	Through Hole	Wire Wrap	Copper Alloy	-65 ░C	125 °C	Cantilever	29	3.18 mm	0.125 in	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded			0.16 "	4.06 mm
