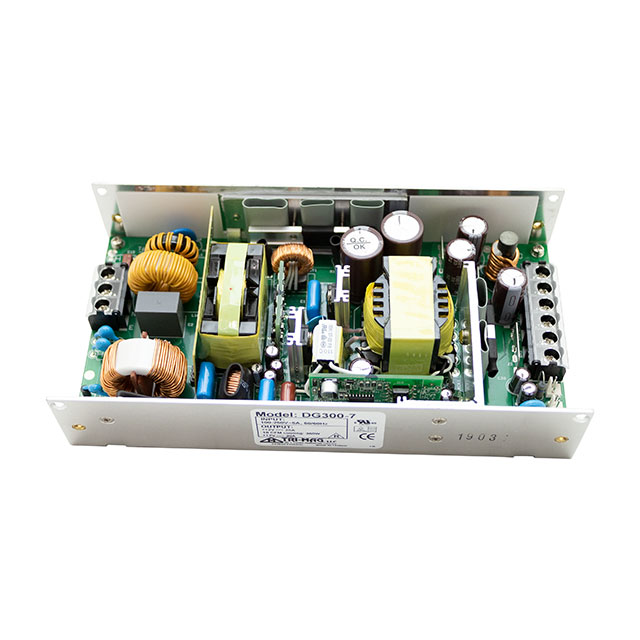

DG300 Series
Manufacturer: Tri-Mag, LLC
Beta
⌘K
AC/DC CONVERTER 12V 300W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Efficiency | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Features | Mounting Type | Applications | Power (Watts) | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tri-Mag, LLC | 3.75 " | 8 in | 203.2 mm | 37 mm | 1.46 in | 95.3 mm | 1 | 91 % | Open Frame | 70 °C | -20 °C | 25 A | 264 VAC | 90 VAC | PFC Universal Input | Chassis Mount | ITE (Commercial) | 300 W | 12 V |
 Tri-Mag, LLC | 4.2 in | 8 in | 203.2 mm | 37 mm | 1.46 in | 106.7 mm | 1 | 91 % | Open Frame | 70 °C | -20 °C | 17 A | 264 VAC | 90 VAC | PFC Universal Input | Chassis Mount | ITE (Commercial) | 300 W | 18 V |
