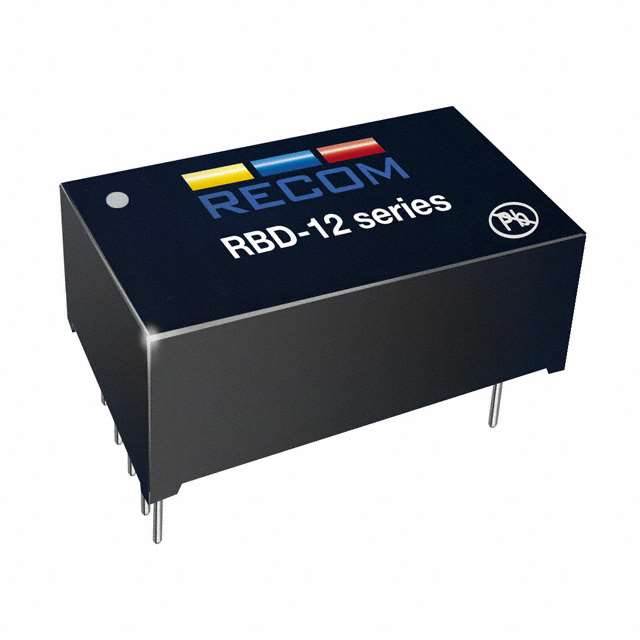

RBD-12 Series

Catalog

LED DVR CC BUCK-BOOST 8-40V 0.5A

Part	Weight [custom]	Weight [custom]	Mounting Type	Number of Outputs	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Topology	Dimming	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Features	Voltage - Input (Max) [Max]	Approval Agency	Type	Weight	Weight	Package / Case

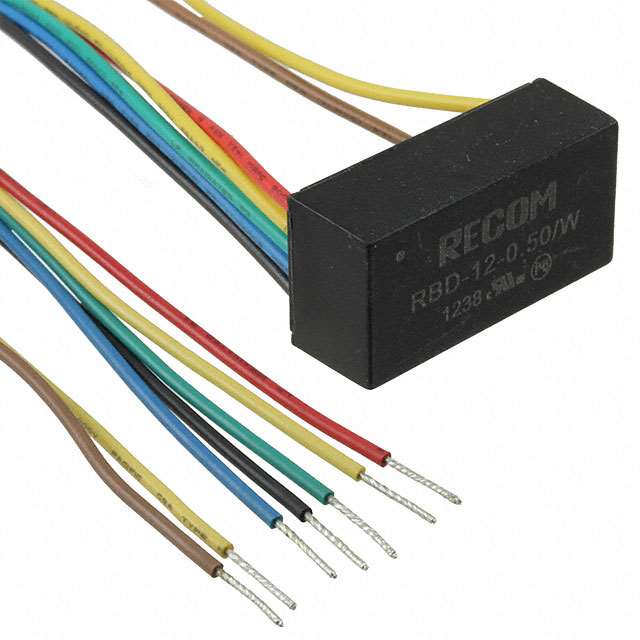

Recom Power RBD-12-0.50/W	17.24 g	0.038 lb	Chassis Mount	1	Wire Leads	8 V	40 V	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	Buck-Boost	Analog PWM	8 V	-40 C	75 ░C	90 %	500 mA	20 W	OTP Remote On/Off SCP	36 V	cULus EN	Constant Current
Recom Power RBD-12-0.35			Through Hole	1		2 V	40 V	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	Buck-Boost	Analog PWM	8 V	-40 C	75 ░C	92 %	350 mA	14 W	OTP Remote On/Off SCP	36 V	CE cULus EN	Constant Current	0.029 lb	13.15 g	7-DIP Module
Recom Power RBD-12-0.35/W	17.24 g	0.038 lb	Chassis Mount	1	Wire Leads	8 V	40 V	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	Buck-Boost	Analog PWM	8 V	-40 C	80 °C	90 %	350 mA	20 W	OTP Remote On/Off SCP	36 V	cULus EN	Constant Current
Recom Power RBD-12-0.50			Through Hole	1		2 V	40 V	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	Buck-Boost	Analog PWM	8 V	-40 C	65 °C	92 %	500 mA	20 W	OTP Remote On/Off SCP	36 V	CE cULus EN	Constant Current	0.029 lb	13.15 g	7-DIP Module
