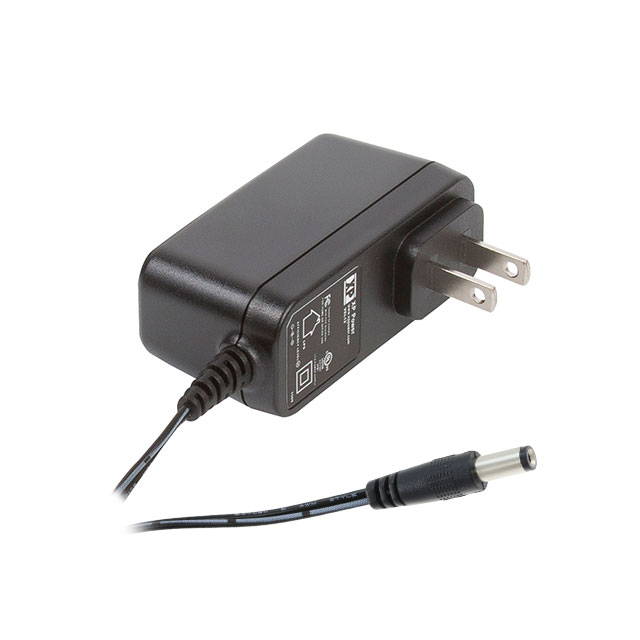

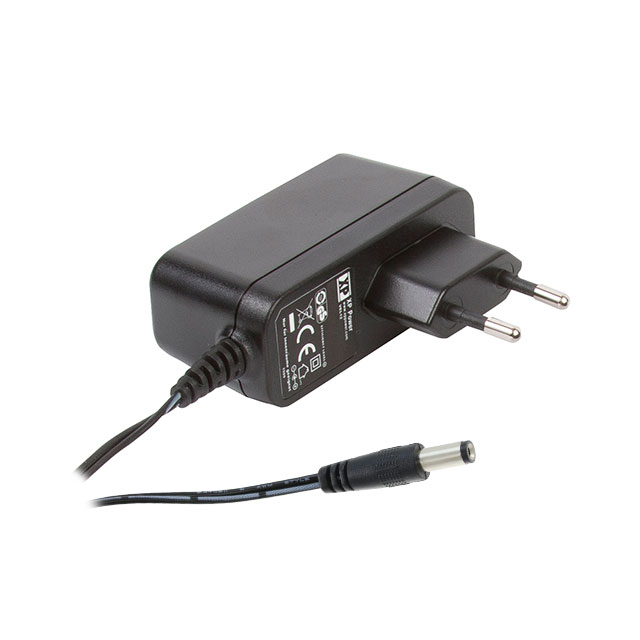

VEL12 Series

Manufacturer: XP Power

Catalog

AC/DC WALL MOUNT ADAPTER 5V 11W

Part	Weight	Weight	Current - Output (Max) [Max]	Region Utilized	Power (Watts)	Efficiency	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Input Connector	Applications	Cord Length	Cord Length	Operating Temperature [Max]	Form	Polarization	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Approval Agency	Input Type
XP Power VEL12US050-EU-JA	86.18 g	0.19 lb	2.1 A	Europe	11 W	CoC Tier 2 Level VI	5 V	2.27 "	29.5 mm	76 mm	57.6 mm	2.99 in	1.16 in	62368-1	CEE 7/16	ITE (Commercial)	1.5 m	59 in	60 °C	Wall Mount	Positive Center	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	100 mW	CB	Fixed Blade
XP Power VEL12US120-EU-JA	86.18 g	0.19 lb	1 A	Europe	12 W	CoC Tier 2 Level VI	12 V	2.27 "	29.5 mm	76 mm	57.6 mm	2.99 in	1.16 in	62368-1	CEE 7/16	ITE (Commercial)	1.5 m	59 in	60 °C	Wall Mount	Positive Center	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	100 mW	CB	Fixed Blade
XP Power VEL12US090-EU-JA	86.18 g	0.19 lb	1.28 A	Europe	12 W	CoC Tier 2 Level VI	9 V	2.27 "	29.5 mm	76 mm	57.6 mm	2.99 in	1.16 in	62368-1	CEE 7/16	ITE (Commercial)	1.5 m	59 in	60 °C	Wall Mount	Positive Center	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	100 mW	CB	Fixed Blade
XP Power VEL12US120-US-JA	86.18 g	0.19 lb	1 A	North America	12 W	CoC Tier 2 Level VI	12 V	1.73 "	29.5 mm	76 mm	43.9 mm	2.99 in	1.16 in	62368-1	NEMA 1-15P	ITE (Commercial)	1.5 m	59 in	60 °C	Wall Mount	Positive Center	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	100 mW	CB TUV UL	Fixed Blade
XP Power VEL12US090-UK-JA	86.18 g	0.19 lb	1.28 A	United Kingdom	12 W	CoC Tier 2 Level VI	9 V	1.83 in	49.5 mm	76 mm	46.4 mm	2.99 in	1.95 in	62368-1	BS 1363	ITE (Commercial)	1.5 m	59 in	60 °C	Wall Mount	Positive Center	2.1 mm	5.5 mm	Barrel Plug	12 mm	264 VAC	90 VAC	100 mW	CB	Fixed Blade
