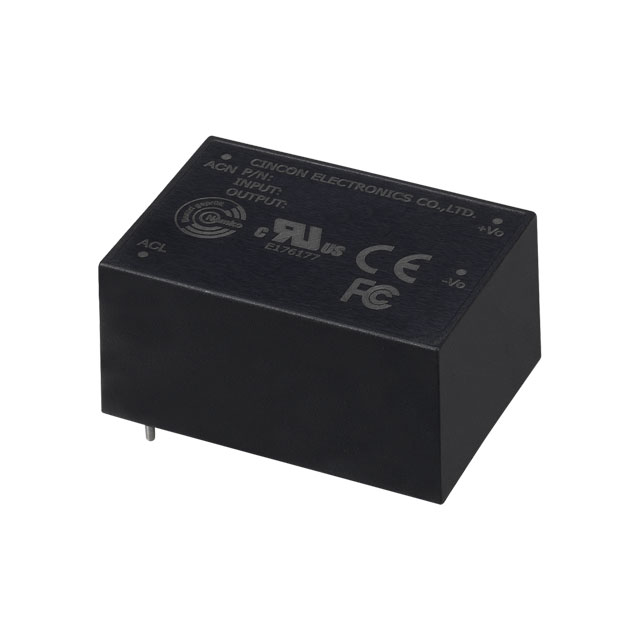

CFM12S090 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 9V 12W
| Part | Load Regulation | Line Regulation | Standard Number | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Mounting Type | Voltage - Output 1 | Efficiency | Package / Case | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Number of Outputs | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | ±1% | 1 % | 60335-1 62368-1 | 264 VAC | 90 VAC | 12 W | Through Hole | 9 V | 85 % | Module | CE cURus FCC NEMKO | 40.6 mm | 1.1 in | 19.6 mm | 1.6 " | 27.9 mm | 0.77 in | Household Appliances ITE (Commercial) | 1 | 1.34 A | 75 °C | -40 °C | Enclosed | Universal Input |
