325-012 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 12POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Read Out	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Pitch	Pitch	Termination	Color	Number of Positions/Bay/Row	Card Type	Contact Material	Flange Feature	Mounting Type	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Rows

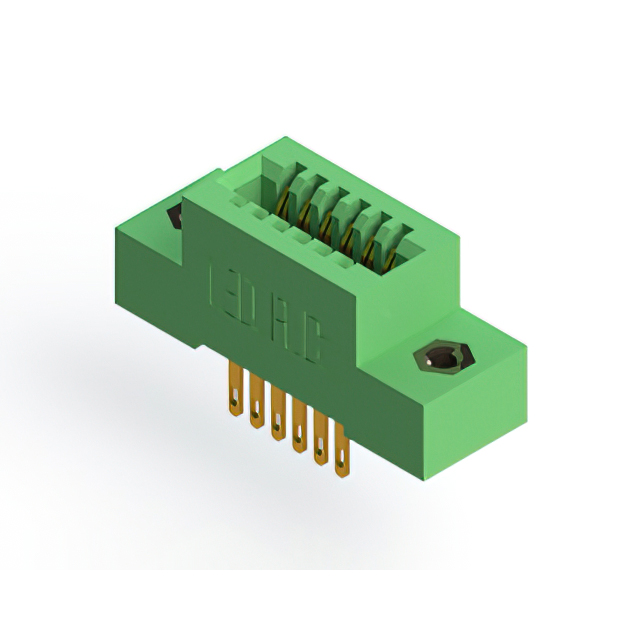

EDAC Inc. 325-012-500-208	2	Diallyl Phthalate (DAP)	Gold	Dual	3.18 mm	0.125 in	-65 ░C	125 °C	2	0.1 "	2.54 mm	Solder Eyelet(s)	Green	6	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female

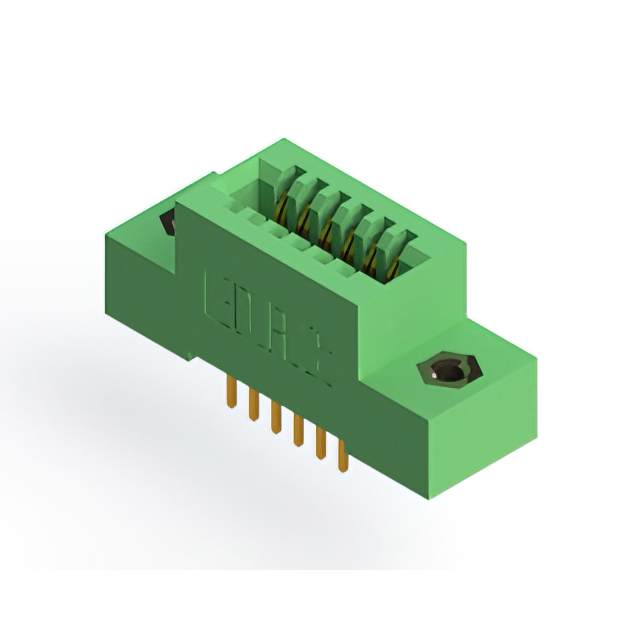

EDAC Inc. 325-012-520-208	2	Diallyl Phthalate (DAP)	Gold	Dual	3.18 mm	0.125 in	-65 ░C	125 °C	2	0.1 "	2.54 mm	Solder	Green	6	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female

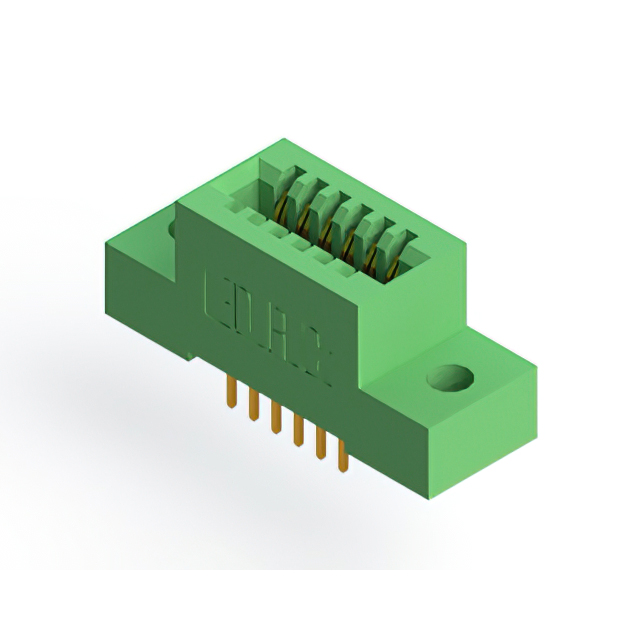

EDAC Inc. 325-012-520-209	2	Diallyl Phthalate (DAP)	Gold	Dual	3.18 mm	0.125 in	-65 ░C	125 °C	2	0.1 "	2.54 mm	Solder	Green	6	Non Specified - Dual Edge	Copper Alloy	Flush Mount Top Opening Unthreaded	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female	0.16 "	4.06 mm

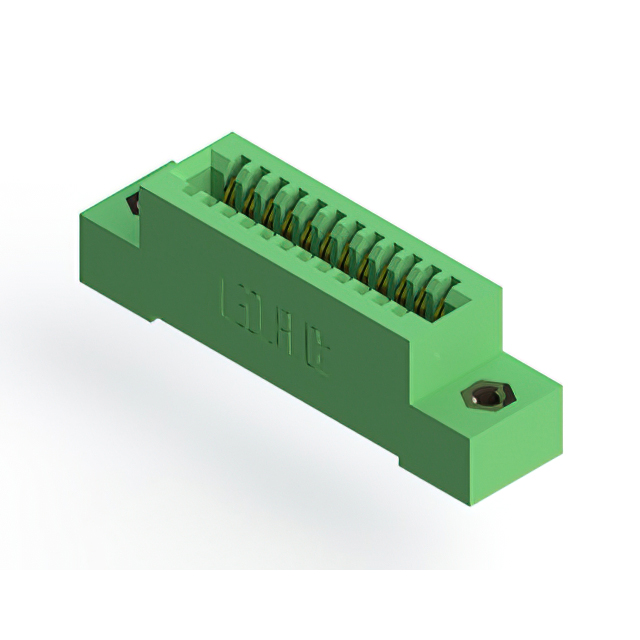

EDAC Inc. 325-012-520-108		Diallyl Phthalate (DAP)	Gold	Single	3.18 mm	0.125 in	-65 ░C	125 °C		0.1 "	2.54 mm	Solder	Green	12	Non Specified - Single Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female			1	1
EDAC Inc. 325-012-520-107		Diallyl Phthalate (DAP)	Gold	Single	3.18 mm	0.125 in	-65 ░C	125 °C		0.1 "	2.54 mm	Solder	Green	12	Non Specified - Single Edge	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female			1	1

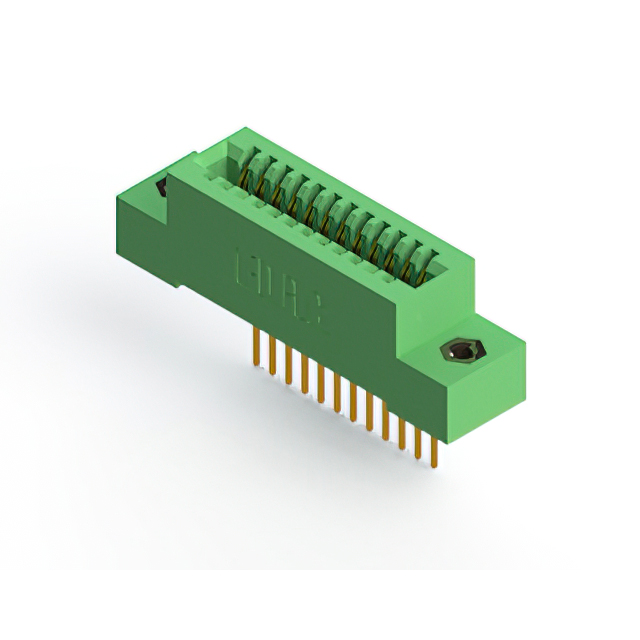

EDAC Inc. 325-012-540-108		Diallyl Phthalate (DAP)	Gold	Single	3.18 mm	0.125 in	-65 ░C	125 °C		0.1 "	2.54 mm	Wire Wrap	Green	12	Non Specified - Single Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female			1	1
EDAC Inc. 325-012-520-207	2	Diallyl Phthalate (DAP)	Gold	Dual	3.18 mm	0.125 in	-65 ░C	125 °C	2	0.1 "	2.54 mm	Solder	Green	6	Non Specified - Dual Edge	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female

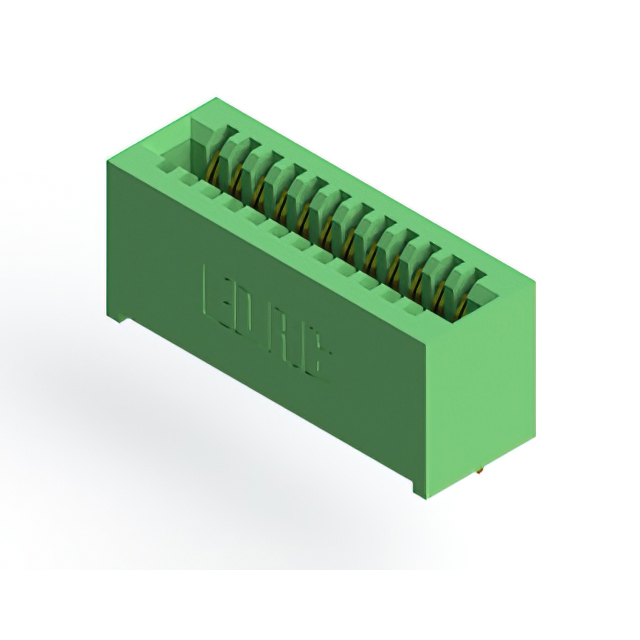

EDAC Inc. 325-012-520-101		Diallyl Phthalate (DAP)	Gold	Single	3.18 mm	0.125 in	-65 ░C	125 °C		0.1 "	2.54 mm	Solder	Green	12	Non Specified - Single Edge	Copper Alloy		Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female			1	1
EDAC Inc. 325-012-500-209	2	Diallyl Phthalate (DAP)	Gold	Dual	3.18 mm	0.125 in	-65 ░C	125 °C	2	0.1 "	2.54 mm	Solder Eyelet(s)	Green	6	Non Specified - Dual Edge	Copper Alloy	Flush Mount Top Opening Unthreaded	Through Hole	12	Cantilever	0.25 Ám	10 Áin	Female	0.16 "	4.06 mm
