048025 Series
Manufacturer: Molex
Beta
⌘K

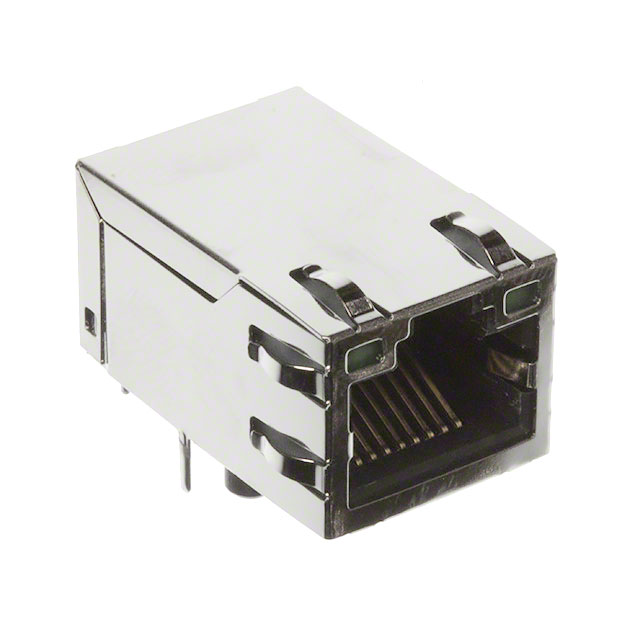

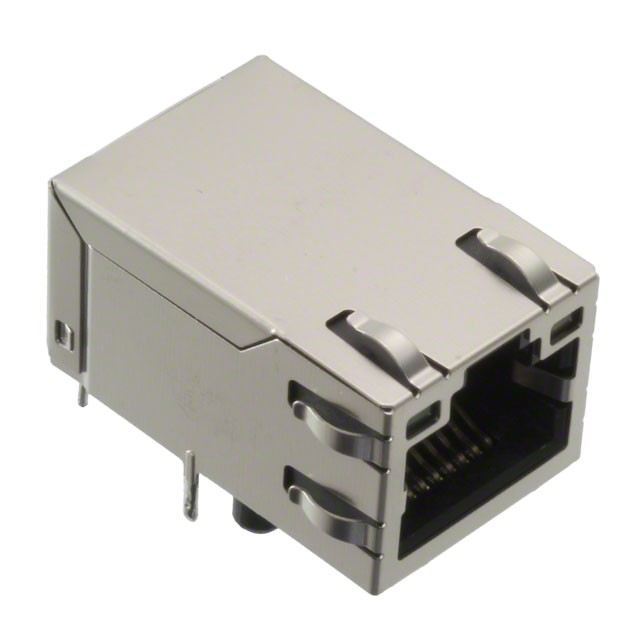

CONN JACK 1PORT 100 BASE-T PCB
| Part | Shield Material | Orientation | Features | Termination | Mounting Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shielding | Height Above Board | Height Above Board | LED Color | Applications | Housing Material | Tab Direction | Number of Ports | Connector Type | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Brass | 90 ° | Board Guide | Solder | Through Hole | 1 | -40 °C | 70 °C | Phosphor Bronze | 50 µin | 1.27 µm | Gold | Shielded EMI Finger | 0.524 in | 13.31 mm | Does Not Contain LED | 10/100 Base-T AutoMDIX | Polyamide (PA) Nylon Glass Filled | Up | 1 | RJ45 | ||
Molex | 90 ° | Board Guide | Solder | Through Hole | 1 | -40 °C | 70 °C | Phosphor Bronze | 50 µin | 1.27 µm | Gold | Unshielded | Green - Green | 10/100 Base-T AutoMDIX | Polyamide (PA) Nylon Glass Filled | Up | 1 | RJ45 | 0.496 " | 12.6 mm | |||
 Molex | Brass | 90 ° | Board Guide | Solder | Through Hole | 1 | -40 °C | 70 °C | Phosphor Bronze | 50 µin | 1.27 µm | Gold | Shielded EMI Finger | 0.524 in | 13.31 mm | Green - Green | 10/100 Base-T AutoMDIX | Polyamide (PA) Nylon Glass Filled | Up | 1 | RJ45 | ||
Molex | |||||||||||||||||||||||
Molex | Brass | 90 ° | Board Guide | Solder | Through Hole | 1 | -40 °C | 70 °C | Phosphor Bronze | 50 µin | 1.27 µm | Gold | Shielded | 0.524 in | 13.31 mm | Green - Green | 10/100 Base-T AutoMDIX | Polyamide (PA) Nylon Glass Filled | Up | 1 | RJ45 | ||
 Molex | Brass | 90 ° | Board Guide | Solder | Through Hole | 1 | Phosphor Bronze | 50 µin | 1.27 µm | Gold | Shielded EMI Finger | 0.524 in | 13.31 mm | Green Yellow | 10/100 Base-T AutoMDIX | Polyamide (PA) Nylon | Up | 1 | RJ45 |
