EEE-FP Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

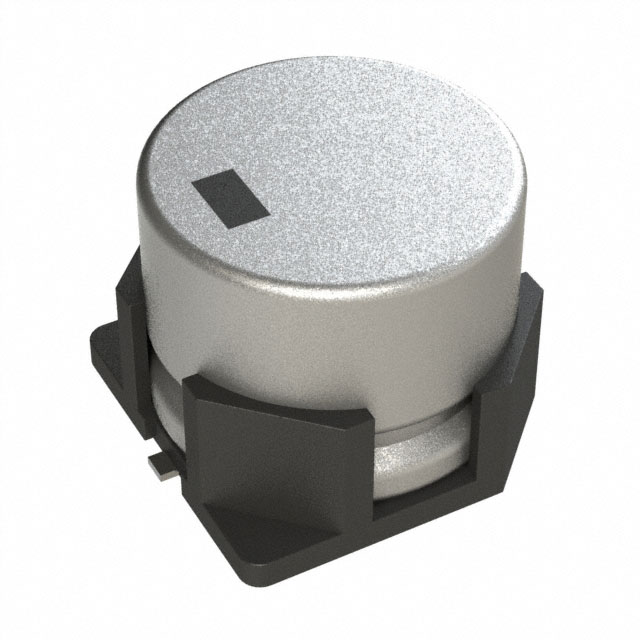

CAP ALUM 33UF 20% 25V SMD

Part	Lifetime @ Temp.	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Tolerance	Polarization	Ripple Current @ High Frequency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Ratings	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEE-FP1E330AP	2000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	25 VDC	20 %	Polar	300 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.248 in	6.3 mm	260 mOhm	Radial Can - SMD	5.8 mm	0.228 "	33 ÁF	AEC-Q200
Panasonic Industrial Automation Sales EEE-FP1C470AL	2000 Hrs	0.26 in	6.6 mm	6.6 mm	0.26 in	16 V	20 %	Polar	300 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.248 in	6.3 mm	260 mOhm	Radial Can - SMD	6.1 mm	0.24 in	47 µF	AEC-Q200
Panasonic Industrial Automation Sales EEE-FP0J331AL	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 "	6.3 V	20 %	Polar	500 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.315 "	8 mm	180 mOhm	Radial Can - SMD	6.5 mm	0.256 in	330 µF	AEC-Q200	325 mA
Panasonic Industrial Automation Sales EEE-FP0J331AV	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 "	6.3 V	20 %	Polar	500 mA	Surface Mount	105 ░C	-55 °C	Automotive High Temperature Reflow	0.315 "	8 mm	180 mOhm	Radial Can - SMD	6.8 mm	0.268 in	330 µF	AEC-Q200	325 mA
Panasonic Industrial Automation Sales EEE-FP1A221AL	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 "	10 V	20 %	Polar	500 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.315 "	8 mm	180 mOhm	Radial Can - SMD	6.5 mm	0.256 in	220 µF	AEC-Q200	325 mA
Panasonic Industrial Automation Sales EEE-FP1H221AP	2000 Hrs	0.406 "	10.3 mm	10.3 mm	0.406 in	50 VDC	20 %	Polar	900 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.394 in	10 mm	120 mOhm	Radial Can - SMD			220 µF	AEC-Q200	585 mA	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEE-FP1V331AL	2000 Hrs	0.406 "	10.3 mm	10.3 mm	0.406 in	35 V	20 %	Polar	1.19 A	Surface Mount	105 ░C	-55 °C	Automotive	0.394 in	10 mm	60 mOhm	Radial Can - SMD			330 µF	AEC-Q200	773.5 mA	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEE-FP1E331AP	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 "	25 VDC	20 %	Polar	850 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.315 "	8 mm	80 mOhm	Radial Can - SMD	10.2 mm	0.402 "	330 µF	AEC-Q200	552.5 mA
Panasonic Industrial Automation Sales EEE-FP0J102AL	2000 Hrs	0.327 in	8.3 mm	8.3 mm	0.327 "	6.3 V	20 %	Polar	850 mA	Surface Mount	105 ░C	-55 °C	Automotive	0.315 "	8 mm	80 mOhm	Radial Can - SMD			1000 µF	AEC-Q200	595 mA	0.413 in	10.5 mm
Panasonic Industrial Automation Sales EEE-FP1V331AP	2000 Hrs	0.406 "	10.3 mm	10.3 mm	0.406 in	35 V	20 %	Polar	1.19 A	Surface Mount	105 ░C	-55 °C	Automotive	0.394 in	10 mm	60 mOhm	Radial Can - SMD	10.2 mm	0.402 "	330 µF	AEC-Q200	773.5 mA
