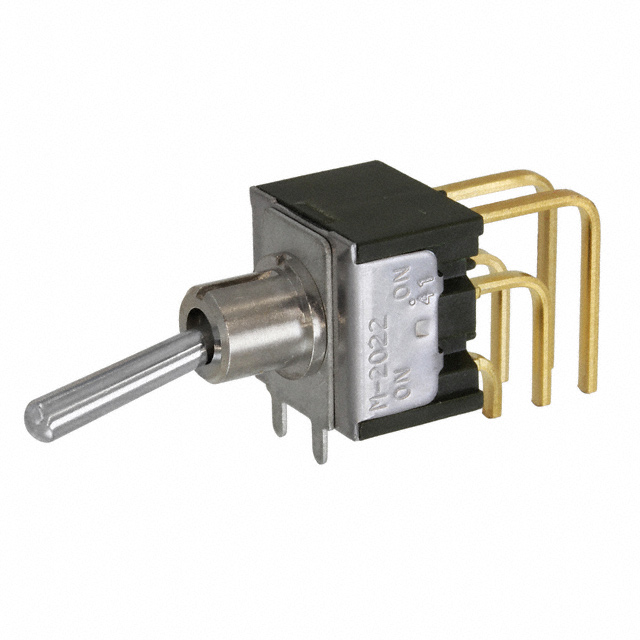

M2022SA Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Switch Function	Current Rating (Amps)	Termination Style	Panel Cutout Dimensions [diameter]	Features	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Length [x]	Circuit	Illumination	Actuator Type	Bushing Thread
NKK Switches M2022SA2G40	Brass Chrome Plated	50000 Cycles	On-On	0.4 VA	PC Pin	6.5 mm	Epoxy Sealed Terminals	28 V	Right Angle Through Hole Vertical	85 °C	-30 ░C	28 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded

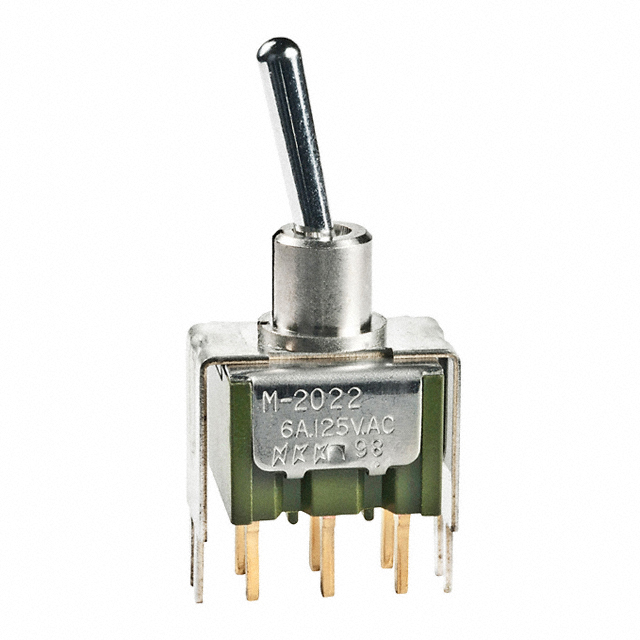

NKK Switches M2022SA2A13	Brass Chrome Plated	25000 Steps	On-On	4 A 6 A	PC Pin	6.5 mm	Epoxy Sealed Terminals	30 V	Through Hole	85 °C	-30 ░C	125 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded

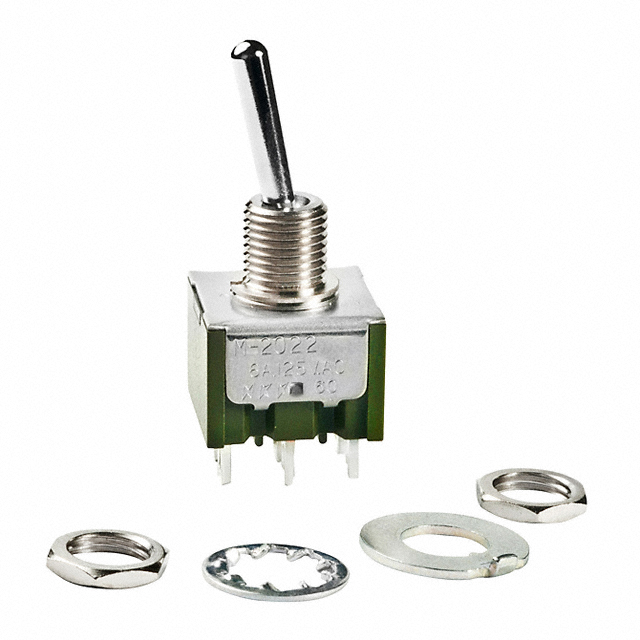

NKK Switches M2022SA1W01	Brass Chrome Plated	25000 Steps	On-On	4 A 6 A	Solder Lug	6.5 mm	Epoxy Sealed Terminals	30 V	Panel Mount	85 °C	-30 ░C	125 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	1/4-40
NKK Switches M2022SA2A13/CUL			On-On	4 A 6 A	PC Pin	6.5 mm	Epoxy Sealed Terminals		Through Hole	85 °C	-30 ░C		12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded

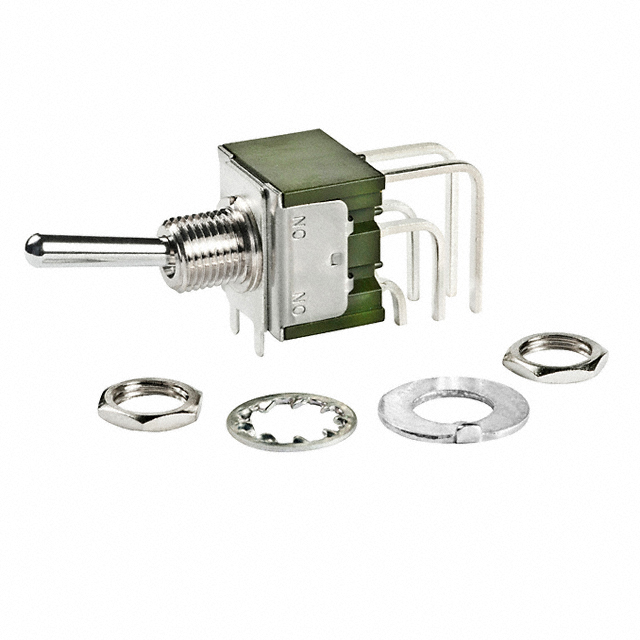

NKK Switches M2022SA1W40	Brass Chrome Plated	25000 Steps	On-On	4 A 6 A	PC Pin	6.5 mm	Epoxy Sealed Terminals	30 V	Panel Mount Right Angle Vertical	85 °C	-30 ░C	125 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	1/4-40
NKK Switches M2022SA2W03	Brass Chrome Plated	25000 Steps	On-On	4 A 6 A	PC Pin	6.5 mm	Epoxy Sealed Terminals	30 V	Through Hole	85 °C	-30 ░C	125 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded
NKK Switches M2022SA2G30	Brass Chrome Plated	50000 Cycles	On-On	0.4 VA	PC Pin	6.5 mm	Epoxy Sealed Terminals	28 V	Right Angle Through Hole	85 °C	-30 ░C	28 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded
NKK Switches M2022SA2W40	Brass Chrome Plated	25000 Steps	On-On	4 A 6 A	PC Pin	6.5 mm	Epoxy Sealed Terminals	30 V	Right Angle Through Hole Vertical	85 °C	-30 ░C	125 V	12.28 mm	DPDT	Non-Illuminated	Standard Round	Unthreaded
