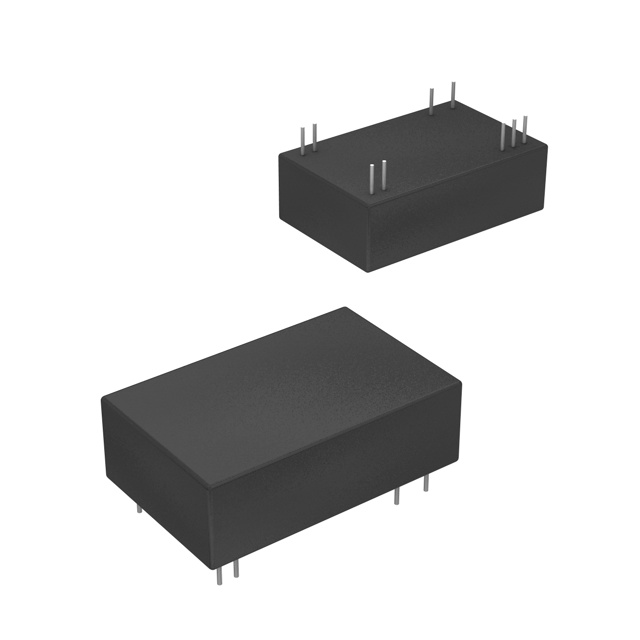

REC6-S_DRW/R Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6W DC/DC 10KV REG 12VIN +/-12VOUT

...

Part	Voltage - Input (Max) [Max]	Power (Watts)	Features	Applications	Current - Output (Max)	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Current - Output (Max) [Max]

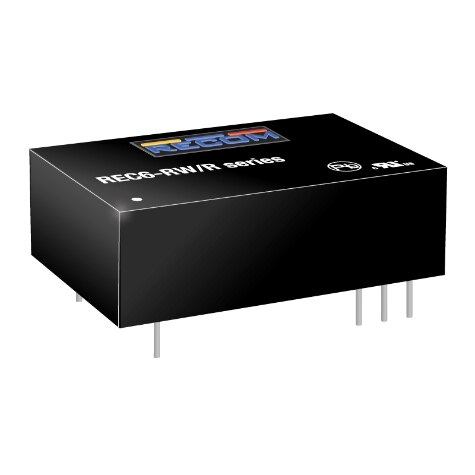

Recom Power REC6-1212DRW/R10/C	18 V	6 W	SCP	ITE (Commercial) Medical	250 mA	81 %	2	9 V	10000 VDC	12 V	24-DIP Module 9 Leads	Isolated Module	-40 C	75 ░C	Through Hole	-12 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
Recom Power REC6-4815SRW/R8/A/CTRL/X1	75 V	6 W	Remote On/Off SCP UVLO	ITE (Commercial) Medical		86 %	1	36 V	8 kV	15 V	24-DIP Module 7 Leads	Isolated Module	-40 C	75 ░C	Through Hole		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	Active Low Enable	400 mA
Recom Power REC6-1224SRW/R10/A/X1	18 V	6 W	SCP UVLO	ITE (Commercial) Medical		83 %	1	9 V	10000 VDC	24 V	24-DIP Module 7 Leads	Isolated Module	-40 C	75 ░C	Through Hole		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "		250 mA
Recom Power REC6-4815DRW/R10/A/X1	75 V	6 W	SCP UVLO	ITE (Commercial) Medical		84 %	2	36 V	10000 VDC	15 V	24-DIP Module 7 Leads	Isolated Module	-40 C	75 ░C	Through Hole	-15 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
Recom Power REC6-1212SRW/R8/A/CTRL	18 V	6 W	Remote On/Off SCP	ITE (Commercial) Medical			1	9 V	8 kV	12 V	24-DIP Module 7 Leads	Isolated Module	-40 C	75 ░C	Through Hole		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	Active Low Enable	500 mA
Recom Power REC6-2415SRW/R8/C/X1	36 V	6 W	SCP UVLO	ITE (Commercial) Medical		85 %	1	18 V	8 kV	15 V	24-DIP Module 9 Leads	Isolated Module	-40 C	75 ░C	Through Hole		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "		400 mA
Recom Power REC6-1215DRW/R8/C/X1	18 V	6 W	SCP UVLO	ITE (Commercial) Medical			2	9 V	8 kV	15 V	24-DIP Module 9 Leads	Isolated Module	-40 C	75 ░C	Through Hole	-15 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
Recom Power REC6-4815DRW/R10/C/X1	75 V	6 W	SCP UVLO	ITE (Commercial) Medical		84 %	2	36 V	10000 VDC	15 V	24-DIP Module 9 Leads	Isolated Module	-40 C	75 ░C	Through Hole	-15 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
Recom Power REC6-4805SRW/R10/A/X1	75 V	6 W	SCP UVLO	ITE (Commercial) Medical			1	36 V	10000 VDC	5 V	24-DIP Module 7 Leads	Isolated Module	-40 C	75 ░C	Through Hole		10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "		1 A
Recom Power REC6-4812DRW/R8/C/X1	75 V	6 W	SCP UVLO	ITE (Commercial) Medical	250 mA	83 %	2	36 V	8 kV	12 V	24-DIP Module 9 Leads	Isolated Module	-40 C	75 ░C	Through Hole	-12 V	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "
