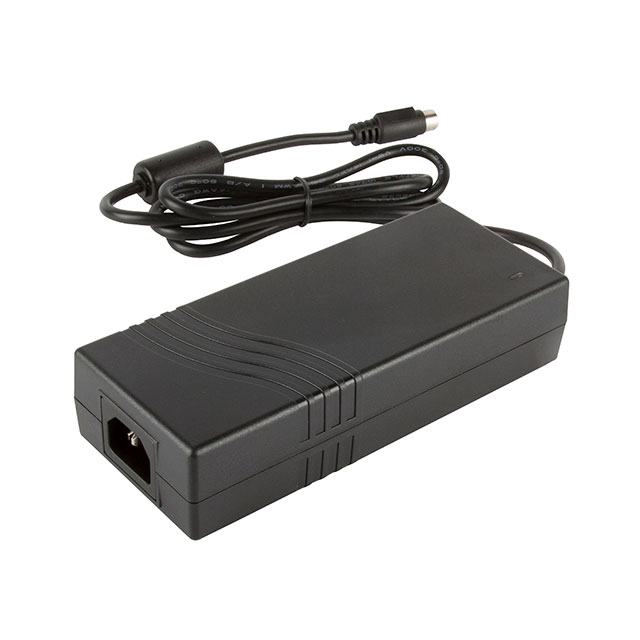

VES150 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC DESKTOP ADAPTER 19V 148W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | No Load Power Consumption | Form | Power (Watts) | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Standard Number | Voltage - Output | Cord Length | Cord Length | Input Type | Region Utilized | Current - Output (Max) [Max] | Applications | Input Connector | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | -10 °C | 60 °C | 150 mW | Desktop (Class I) | 148 W | Power DIN 4 Pin | 264 VAC | 90 VAC | CB CCC TUV UL | 2.79 in | 39.6 mm | 1.56 " | 6.66 in | 169.2 mm | 70.9 mm | 62368-1 | 19 V | 1.2 m | 47.2 in | Cord (Sold Separately) | International | 7.8 A | ITE (Commercial) | IEC 320-C14 | CoC Tier 2 Level VI |
XP Power | -10 °C | 60 °C | 150 mW | Desktop (Class I) | 150 W | Power DIN 4 Pin | 264 VAC | 90 VAC | CB CCC TUV UL | 2.79 in | 39.6 mm | 1.56 " | 6.66 in | 169.2 mm | 70.9 mm | 62368-1 | 24 V | 1.2 m | 47.2 in | Cord (Sold Separately) | International | 6.25 A | ITE (Commercial) | IEC 320-C14 | CoC Tier 2 Level VI |
XP Power | -10 °C | 60 °C | 150 mW | Desktop (Class I) | 150 W | Power DIN 4 Pin | 264 VAC | 90 VAC | CB CCC TUV UL | 2.79 in | 39.6 mm | 1.56 " | 6.66 in | 169.2 mm | 70.9 mm | 62368-1 | 12 V | 1.2 m | 47.2 in | Cord (Sold Separately) | International | 12.5 A | ITE (Commercial) | IEC 320-C14 | CoC Tier 2 Level VI |
