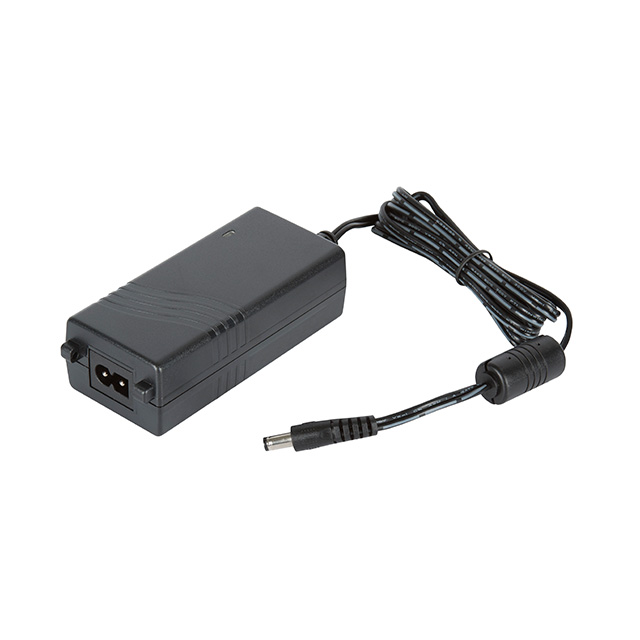

AKM36 Series

Manufacturer: XP Power

Catalog

AC/DC DESKTOP ADAPTER 18V 36W

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Applications	Operating Temperature [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Approval Agency	Polarization	Output Connector [diameter]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Form	Standard Number	No Load Power Consumption	Input Connector	Voltage - Output
XP Power AKM36US18C2	0.176 lb	80 g	50 mm	1.33 in	108 mm	4.25 in	1.96 "	33.8 mm	2 A	36 W	International	ITE (Commercial) Medical	40 °C	CoC Tier 2 Level VI	264 VAC	90 VAC	Cord (Sold Separately)	CB CE CSA TUV UL	Positive Center	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.5 m	59 in	Desktop (Class II)	60601-1; 62368-1	75 mW	IEC 320-C8	18 V
XP Power AKM36US24C2	0.176 lb	80 g	50 mm	1.33 in	108 mm	4.25 in	1.96 "	33.8 mm	1.5 A	36 W	International	ITE (Commercial) Medical	40 °C	CoC Tier 2 Level VI	264 VAC	90 VAC	Cord (Sold Separately)	CB CE CSA TUV UL	Positive Center	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.5 m	59 in	Desktop (Class II)	60601-1; 62368-1	75 mW	IEC 320-C8	24 V
XP Power AKM36US12C2	0.176 lb	80 g	50 mm	1.33 in	108 mm	4.25 in	1.96 "	33.8 mm	3 A	36 W	International	ITE (Commercial) Medical	40 °C	CoC Tier 2 Level VI	264 VAC	90 VAC	Cord (Sold Separately)	CB CE CSA TUV UL	Positive Center	2.5 mm 5.5 mm	Barrel Plug	11 mm	1.5 m	59 in	Desktop (Class II)	60601-1; 62368-1	75 mW	IEC 320-C8	12 V
